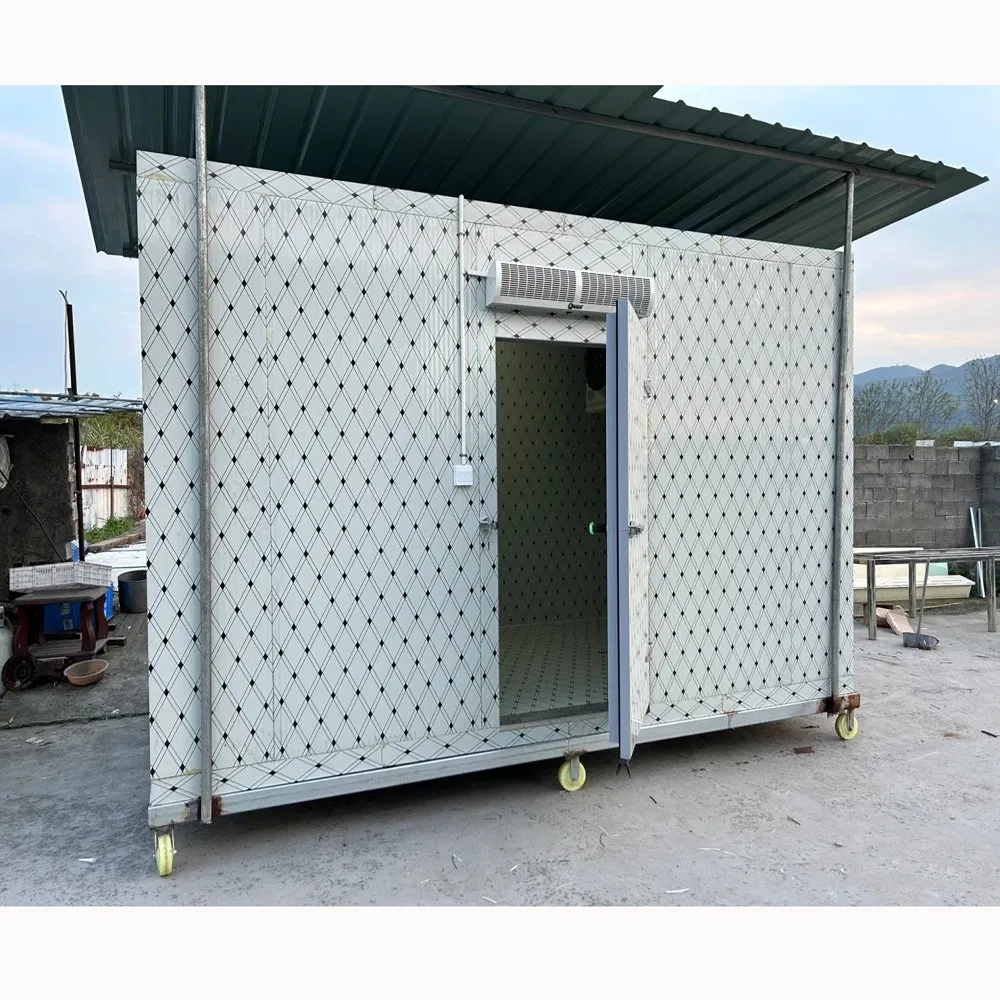

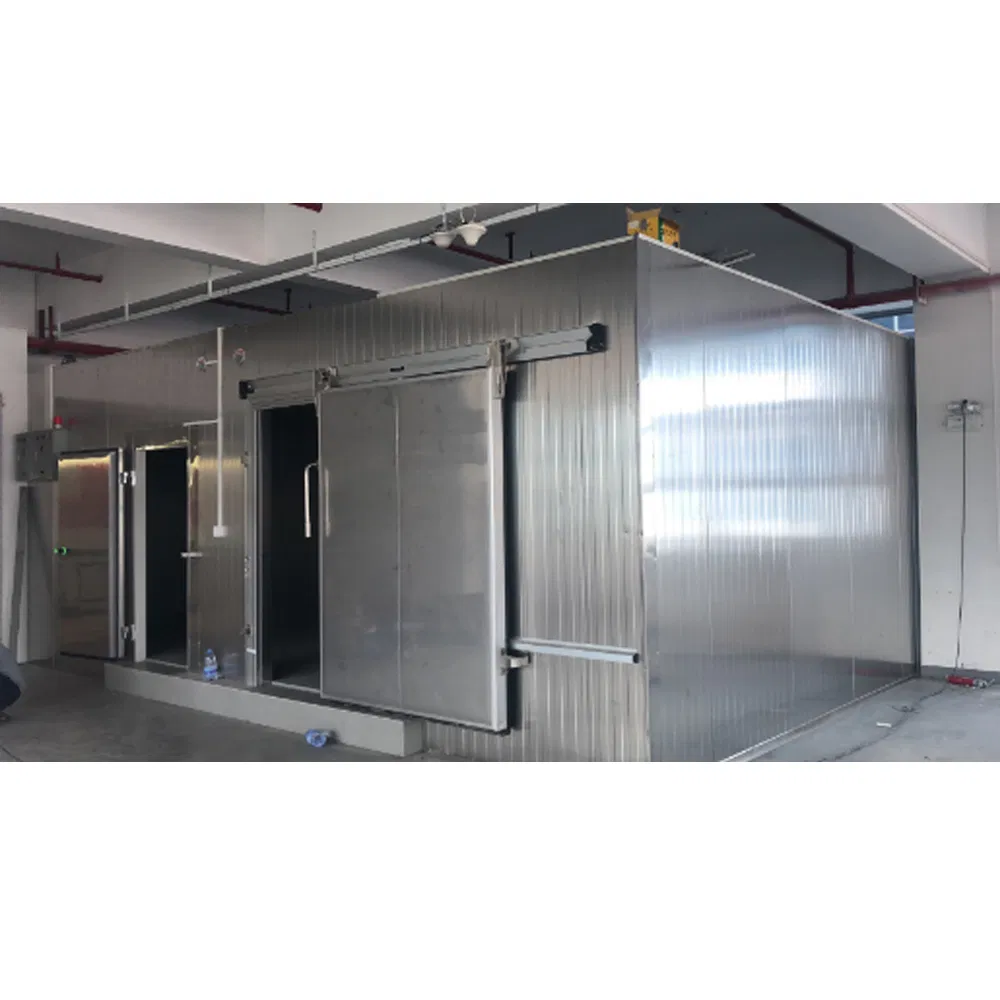

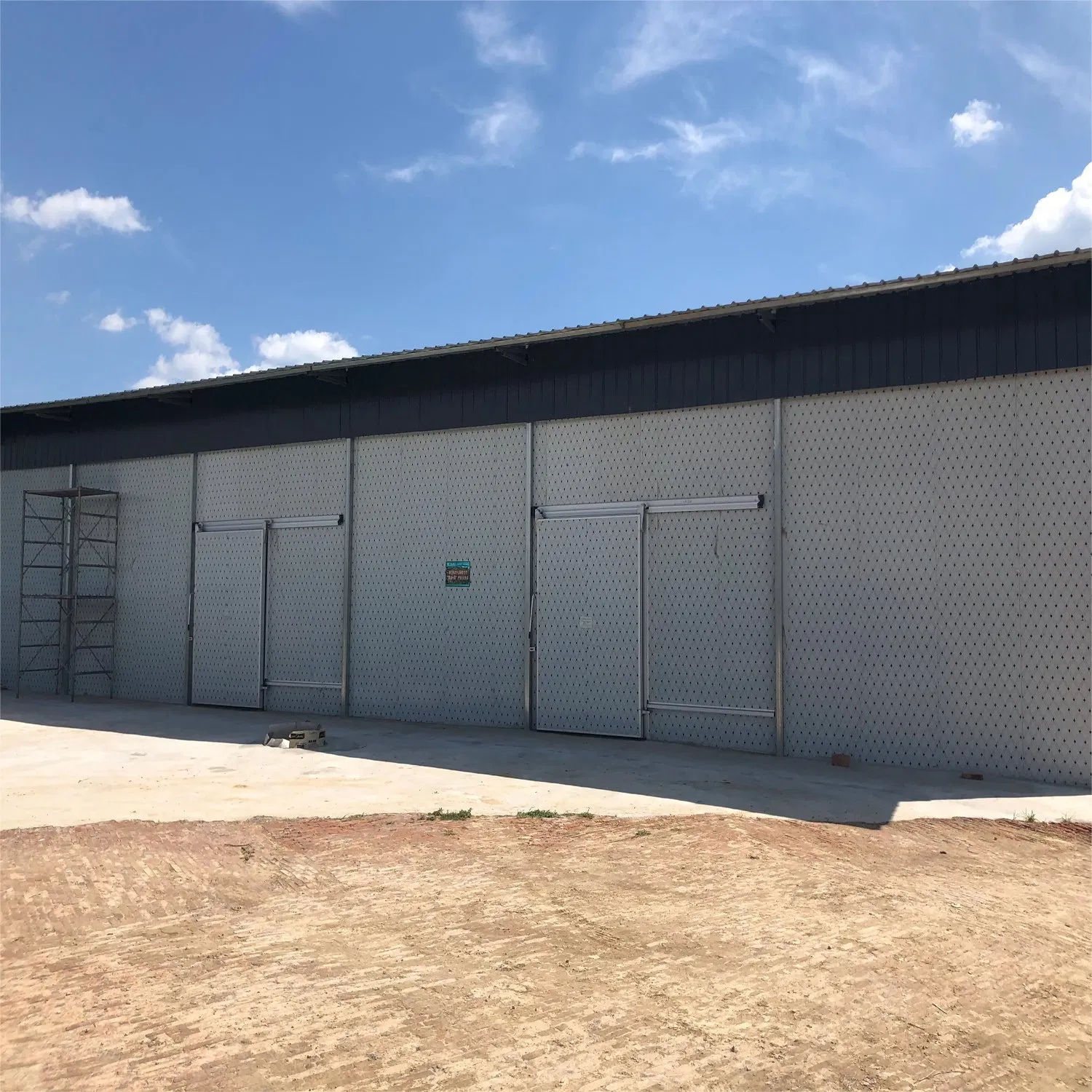

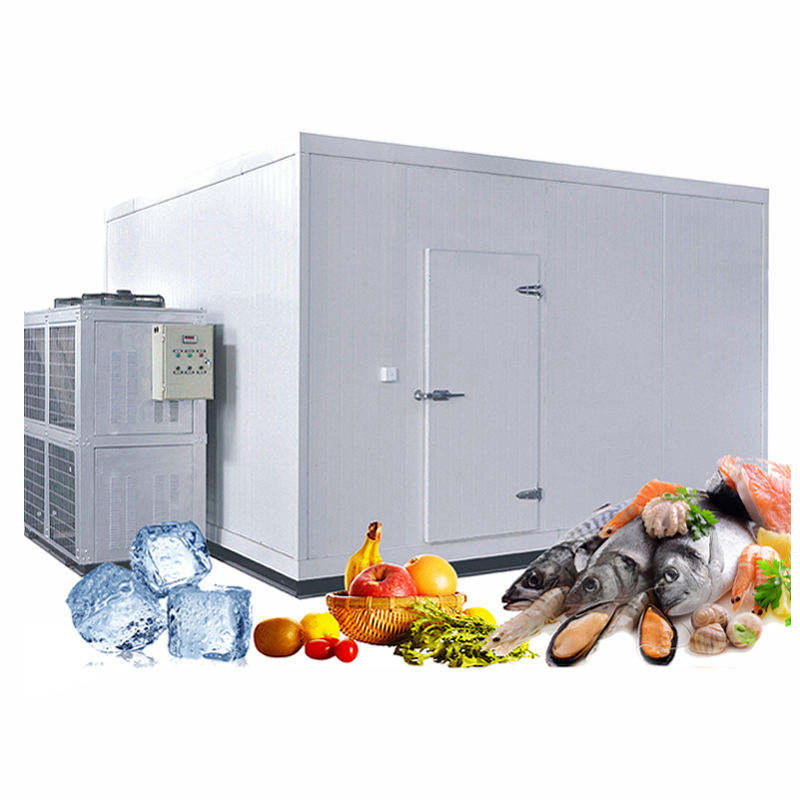

A cold room is a warehouse in which a specific temperature is artificially generated. It is generally designed for storing products in an environment below the outside temperature. Cold rooms are staples of supermarkets, meat processing plants, cold chain logistics, restaurants, hotels, and any other place that needs to store fresh, frozen, or pre-cooled food products such as meat, vegetables, fruits, beverages, and fish.

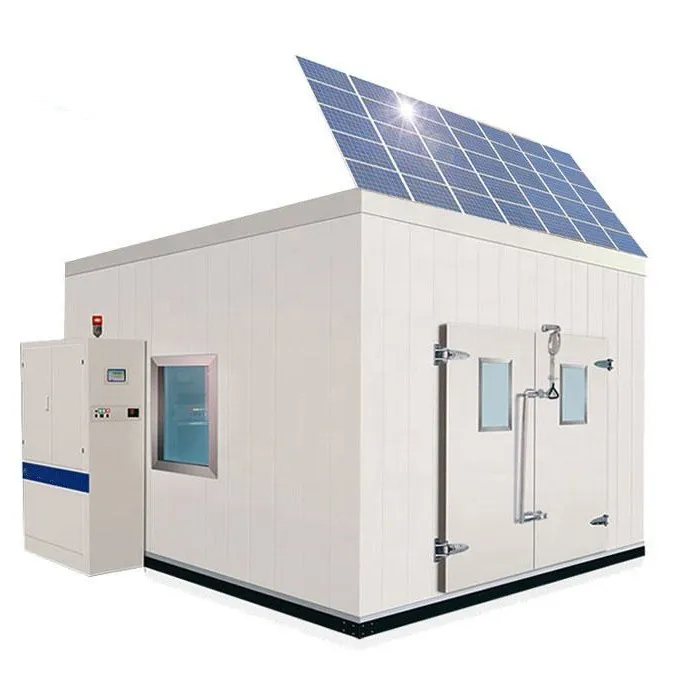

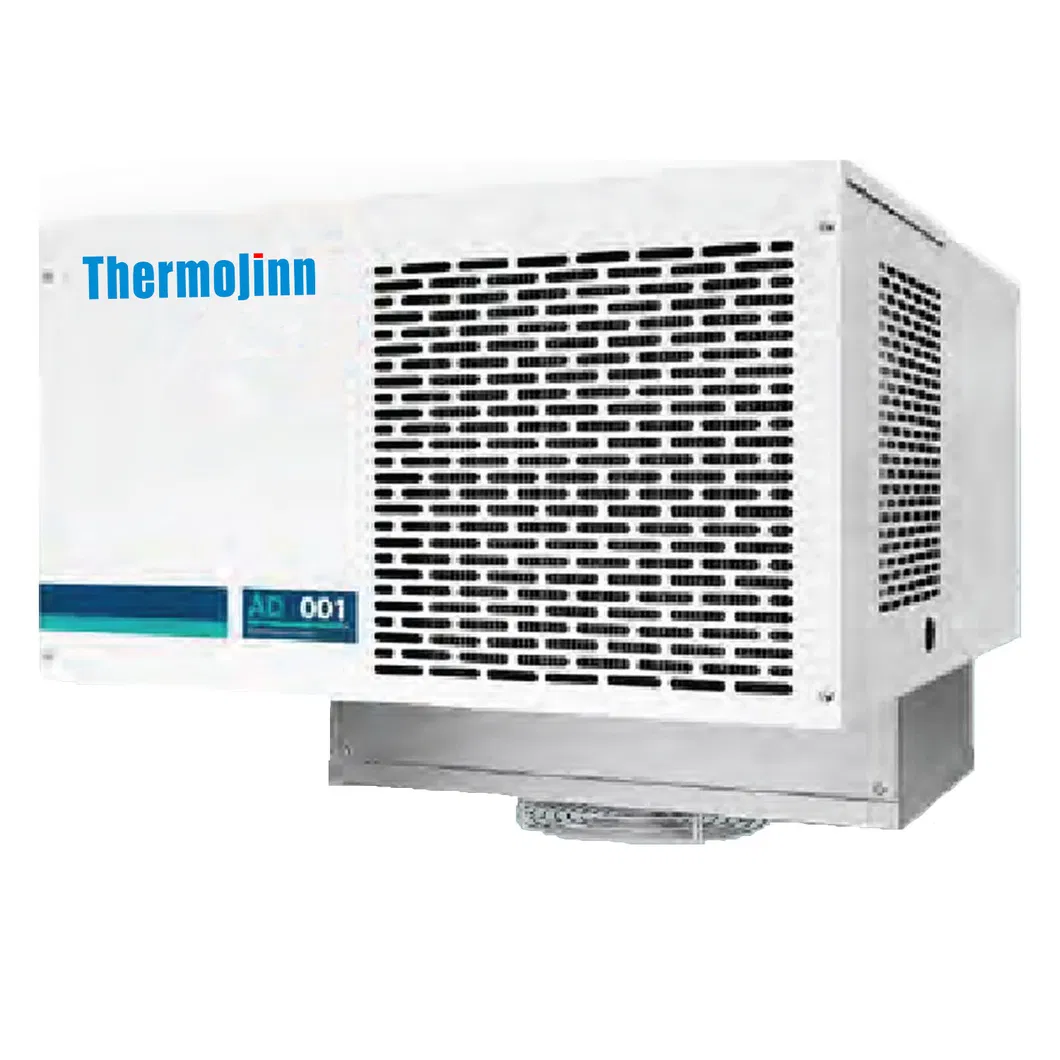

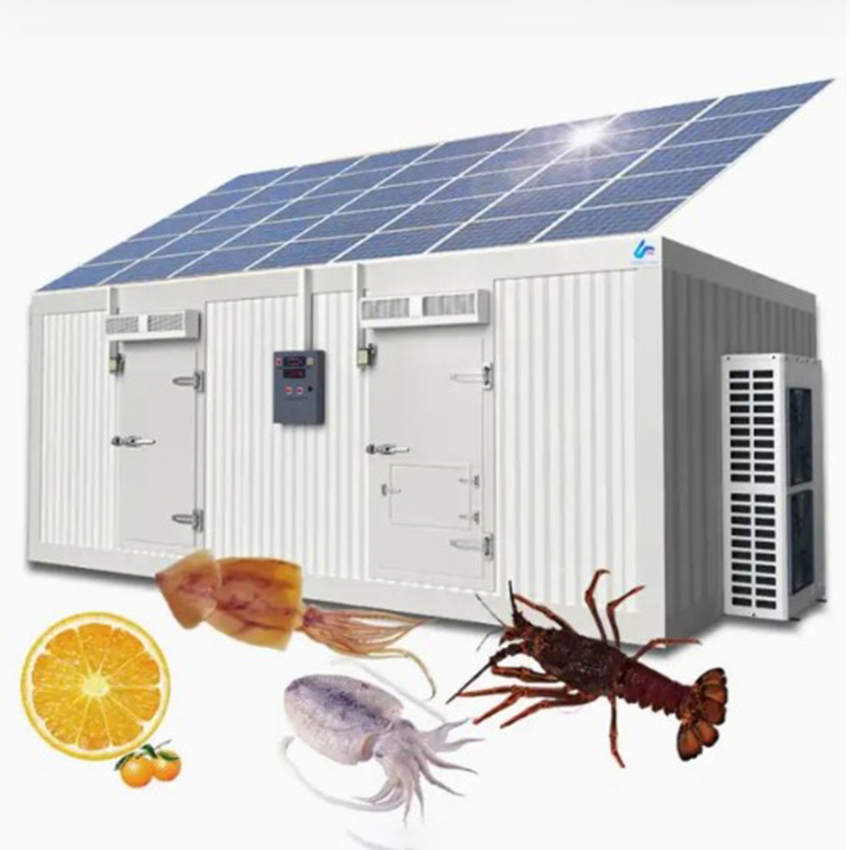

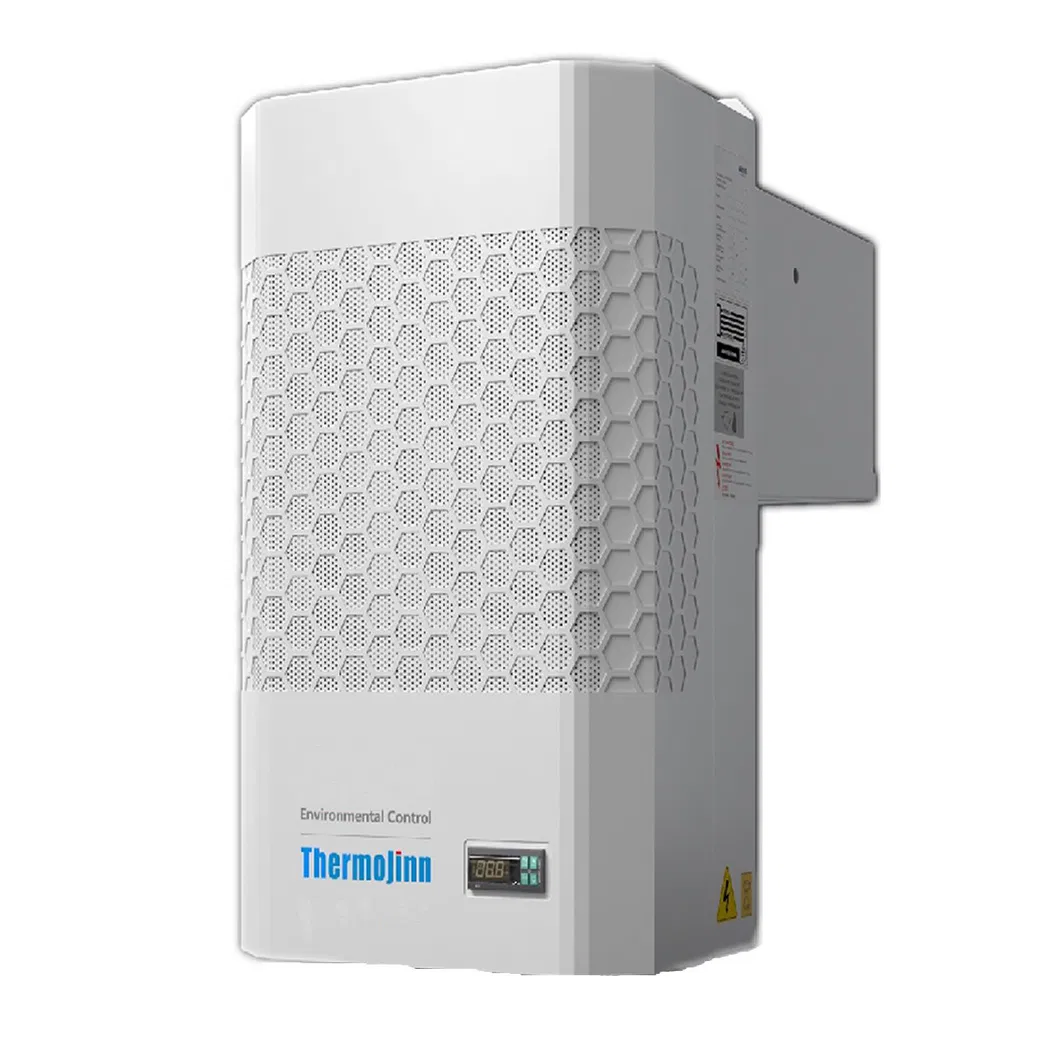

Our Energy-Efficient Solar Cold Room is the perfect solution for sustainable storage needs. Equipped with a monoblock unit, it ensures efficient and reliable operation. This unit is designed to provide consistent temperatures for optimal preservation of goods across various industries.
| Dimension | Length(m)*Width(m)*Height(m) |
|---|---|
| Material | Color steel / Stainless steel |
| Voltage | 220V-440V; 50Hz/60Hz Optional |
| Refrigeration | Air / Water / Evaporation cooled |
| Door Type | Sliding / Swing / Double door |
| Functions | Fruit, vegetable, flower, fish, meat, chicken, medicine, etc. |
| Solar Type Cold Room System Parameter | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S.No | Room Size (m³) | Monoblock Unit | Power (V/Hz) | Cooling (W) | Rate Power (KW) | Current (A) | Power Cons. (KWH/24h) | Battery (KWH/24h) | PV pcs | PV Capacity (W) | PV Area (m²) |
| 1 | 6~9 | HA00833 | 220/50 | 1180 | 0.9 | 4.3 | 21.6 | 25 | 13 | 8060 | 36.4 |
| 2 | 8~14 | HA01033 | 220/50 | 1550 | 1.1 | 4.9 | 26.4 | 30 | 15 | 9300 | 42 |
| 3 | 13~26 | HA01533 | 220/50 | 2160 | 1.4 | 6.8 | 33.6 | 35 | 18 | 11160 | 50.4 |
| 4 | 23~31 | HA02033 | 220/50 | 2740 | 1.8 | 9.9 | 43.2 | 45 | 23 | 14260 | 64.4 |
| 5 | 28~52 | HA02533 | 220/50 | 3920 | 2.4 | 8.8 | 57.6 | 60 | 30 | 18600 | 84 |
