With a brilliant design team and rich experience in steel structure, we provide one-stop service containing drawing design, manufacturing, site construction & installation guiding. We plan, calculate, and design complete solutions of steel structure in accordance with international standards, combining modern technology.
1. Unified standard for reliability design of building (GBJ50068-2001)
2. Standard for terminology and symbols used in design of building structures (GB/T50083-97)
3. Load code for the design of building structures (GB50009-2001)
4. Code for seismic design of buildings (GB50011-2010)
5. Code for design of steel structures (GBJ50017-2003)
6. Technical specifications for light-weight steel structures with gabled frame (CECS102:2002)

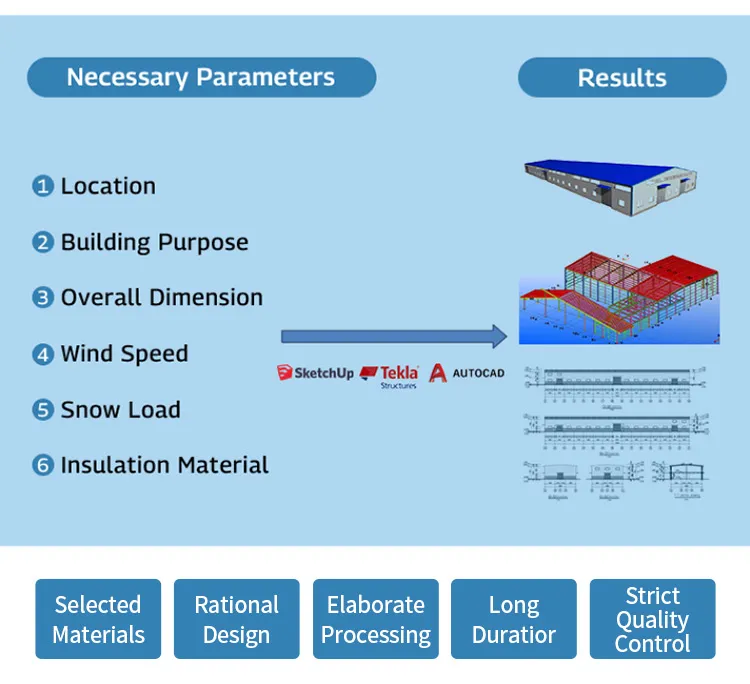

We customize products based on: Building dimensions (L/W/H); Local loads (Wind speed, snow, seismic); Insulation materials (Glass wool, EPS, Rock wool, PU sandwich panels); Crane requirements (Lifting height and weight).

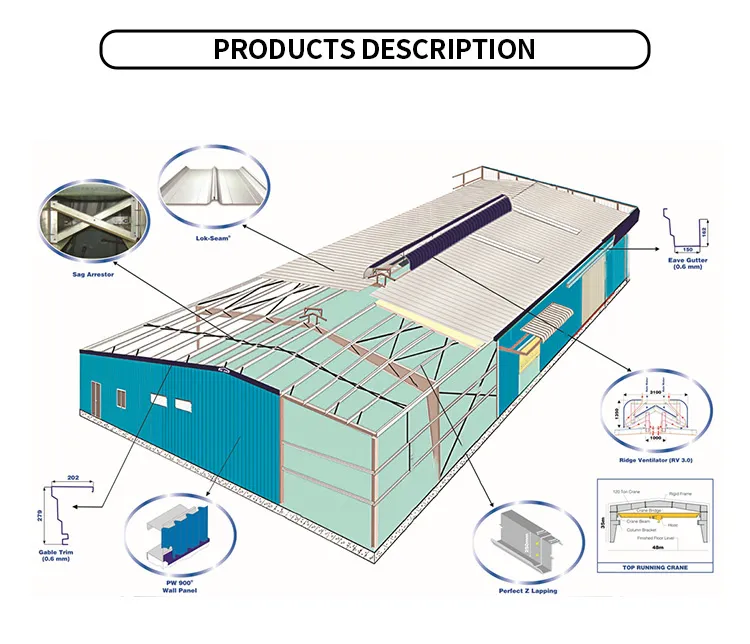

| Product Information Details | |
|---|---|

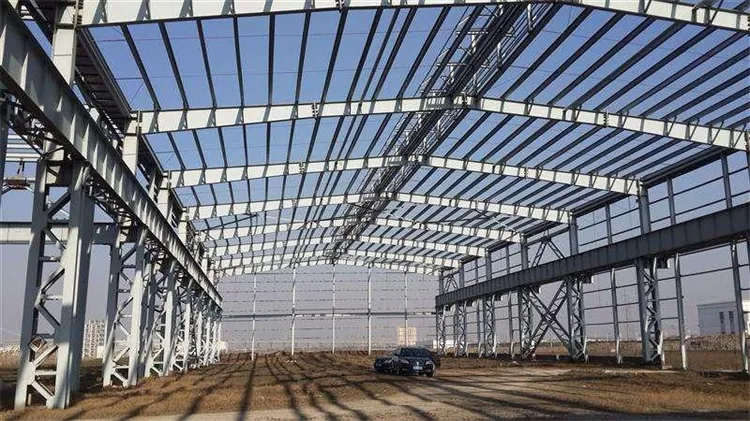

| Column and beam | Welding steel or hot-roll steel |
| Steel surface treatment | Hot-dip galvanized or painted (all colors) |
| Steel grade | Q235, Q345, ASTM, EN10225 |
| Purlin and girt | C and Z section steel |
| Connection Method | All bolt connection, easy installation |

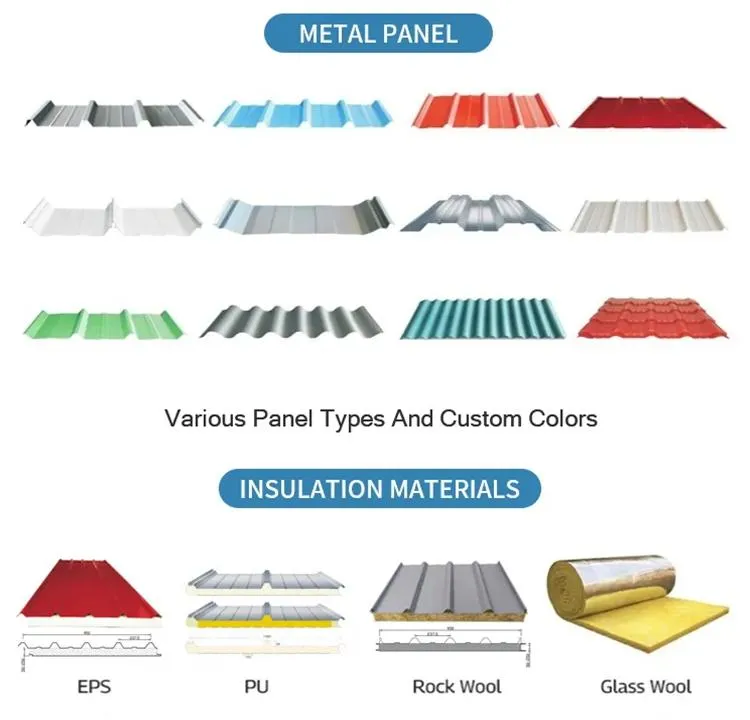

| Wall & Roof | Sandwich panel with EPS or rock wool insulation / Metal sheet |
| Door & Window | Rolling shutter or sliding door; customized windows |
| Design life span | 25 years to 50 years |

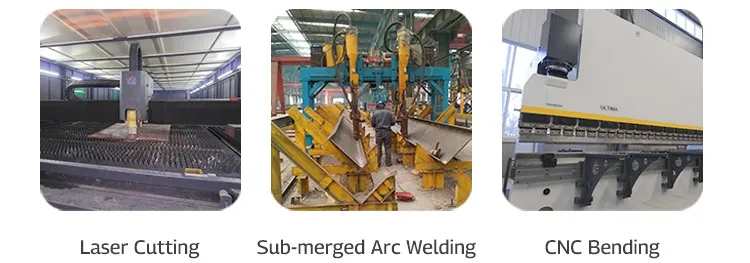

Laser Cutting: Compared with traditional flame cutting, laser cutting promotes productivity by 50-100%. Precision is greatly improved with a tolerance range smaller than 0.5mm.

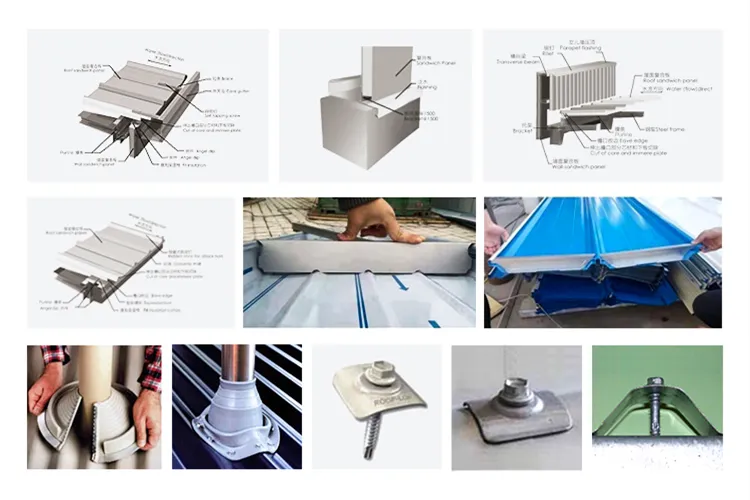

Our experts apply deep knowledge of industrial buildings to deliver multiple options for metal sheets and sandwich panels with different insulation materials to achieve an aesthetically satisfying and high-performance building appearance.
