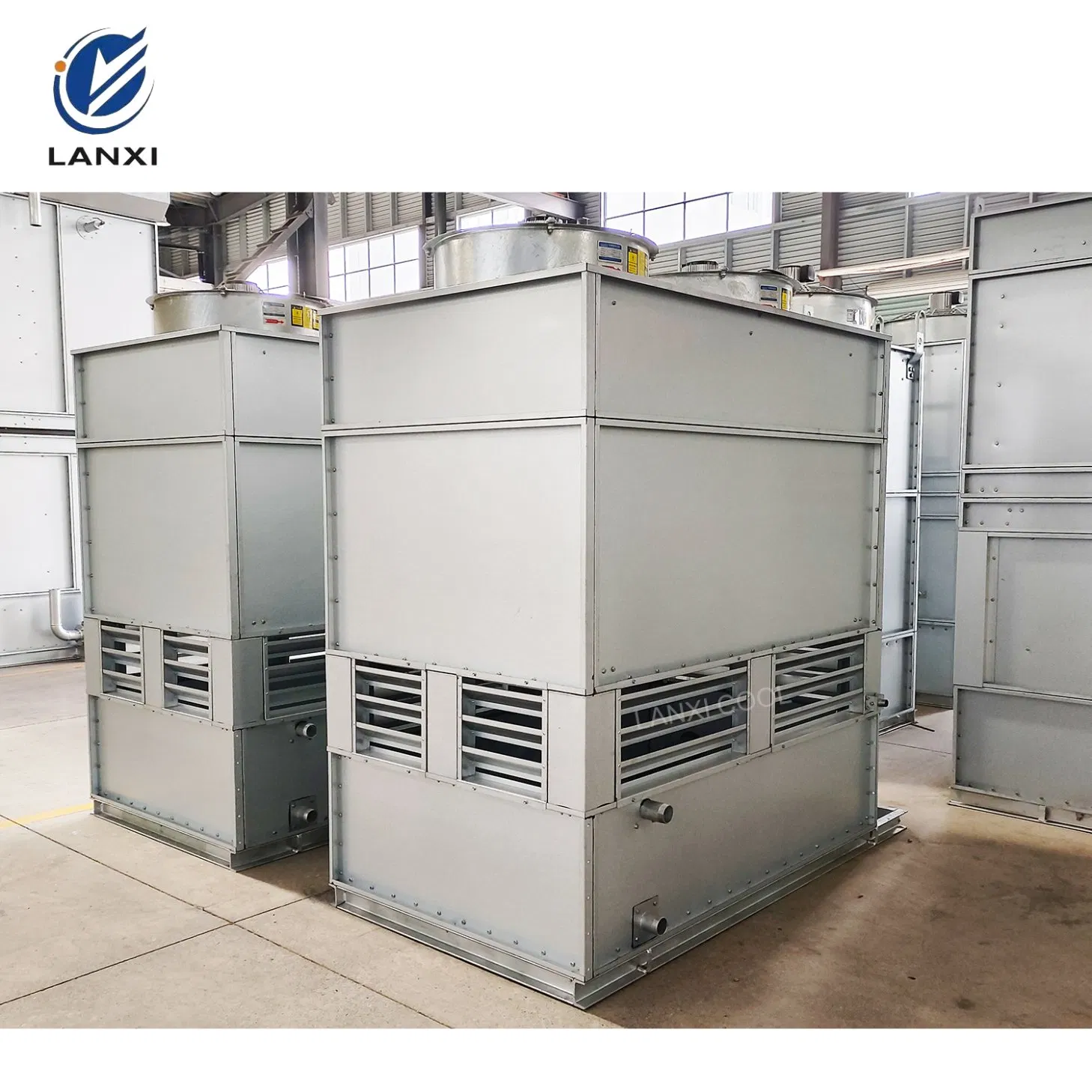

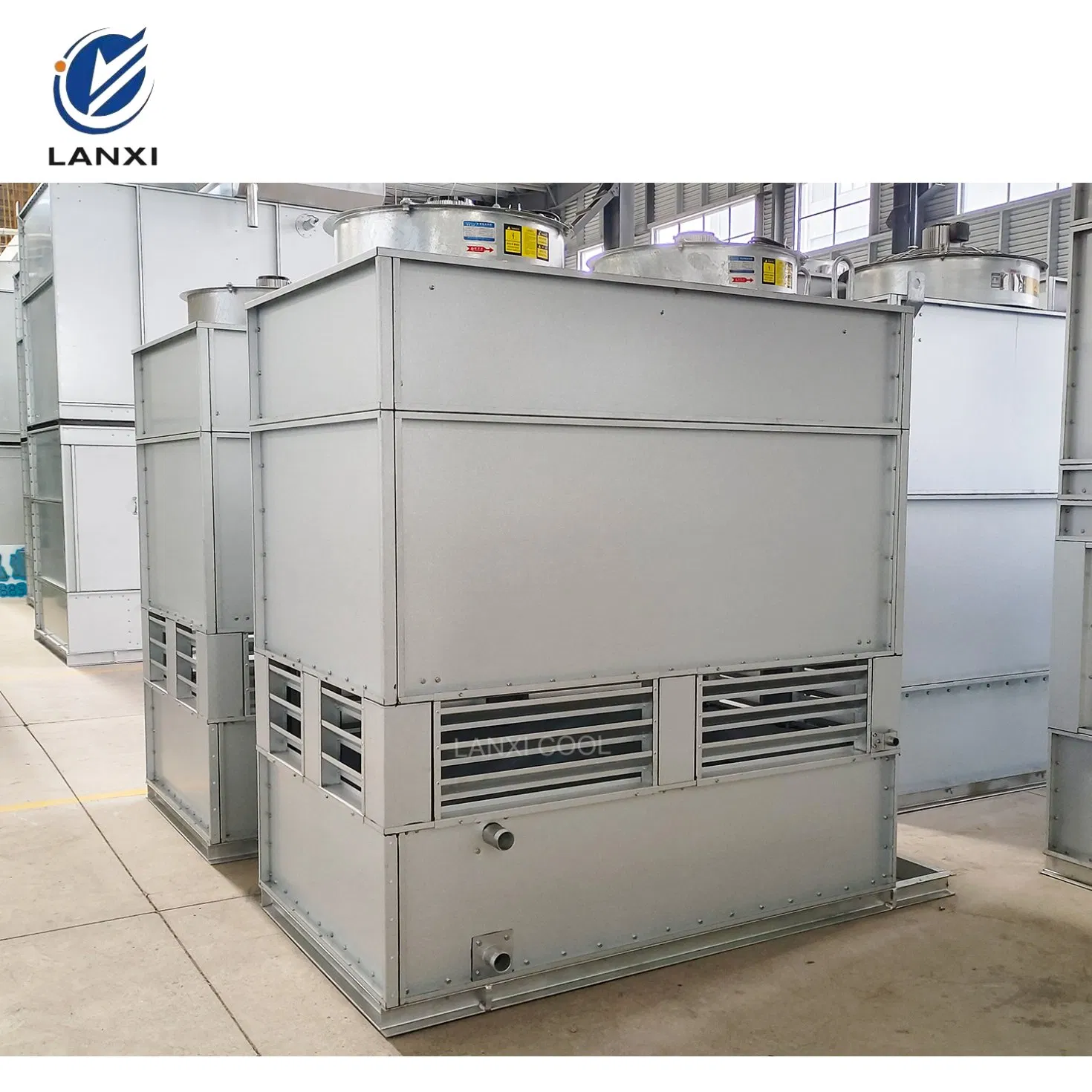

Factory Direct Refrigeration System Part Evaporative Condenser for Cold Storage Room

1 / 3

Factory Direct Refrigeration System Part Evaporative Condenser for Cold Storage Room

Customization:	Available
Condensation Forms:	Air & Water Cooled
Refrigerant:	CF2Cl2

Send Inquiry

Product Description

Basic Specifications

Model NO.

LX-145

Type

Steam Condenser

Material

Zinc

Structural Form

Vertical

Heat Transfer Mode

Recuperative

Form

Fixed Tube-Sheet

Application Field

Hotels, Building Material Shops, Machinery Repair

Certification

ISO

Condition

New

Application

Refrigeration System

Dimension

Suitable to Container Shipping

Casing

Ss/Superdyma/HDG

Coil

Ss/HDG Steel

Fan Motor Power

1.1kw

Pump Power

0.75kw

HS Code

8418999200

Production Capacity

6000 PCS/ Year

⚙

Working Principle

The evaporative condenser is a high-efficiency energy-saving heat exchange equipment. It absorbs heat from fluids in exchange coils through the evaporation of water films sprayed onto the outer surface of the coils. Dry cold air enters from the lower inlet, exchanges materials with the circulating water, absorbs heat and moisture, and is exhausted as hot wet air from the top.

The majority of the water falls back into the collecting tank for re-circulation, while the cooled medium inside the tubes is discharged from the lower outlet after full heat exchange.

✔

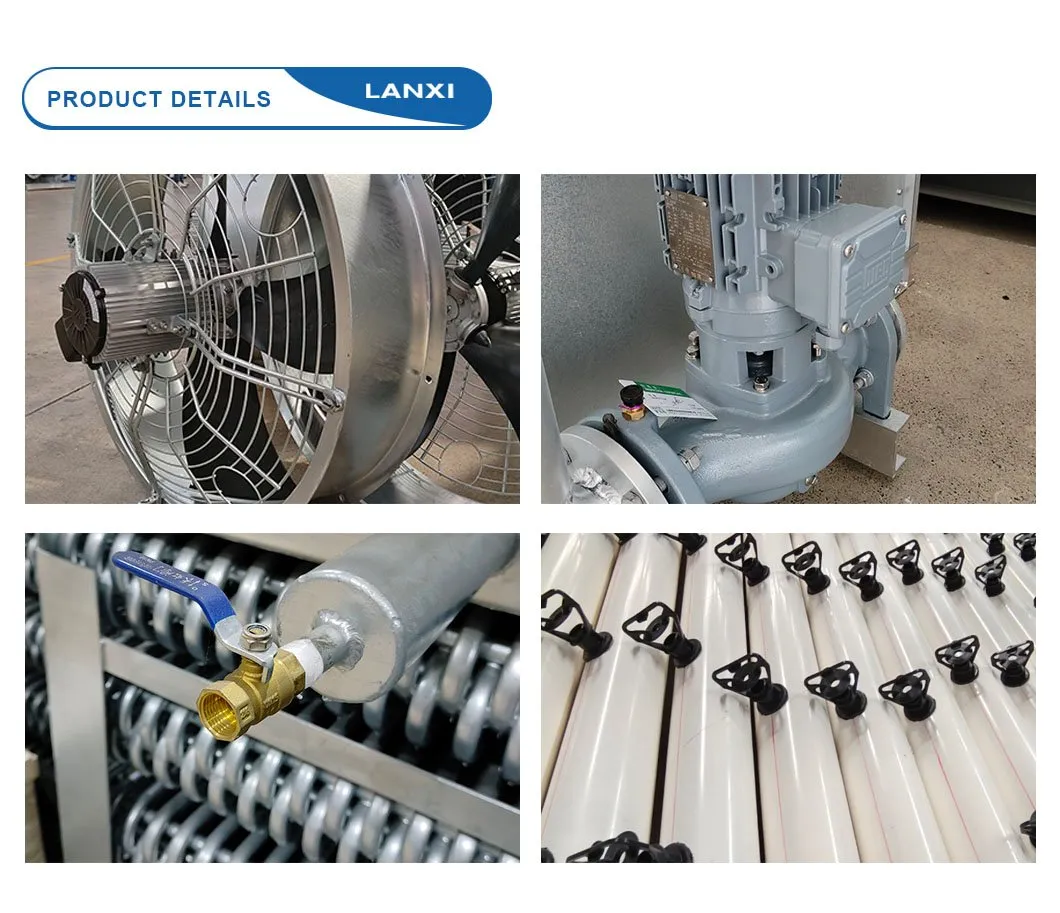

Product Features

1. Condensing Coil Set

Made of φ25mm seamless fluid pipe with a design pressure of 1.97MPa. Whole hot-dip zinc treatment enhances corrosion resistance and service life. Tilted design facilitates liquid discharge with low pressure drop.

2. Electronic Water-Curing Device

Equipped with electronic pulse technology to treat circulating water, providing effective anti-scaling, sterilization, and algae control.

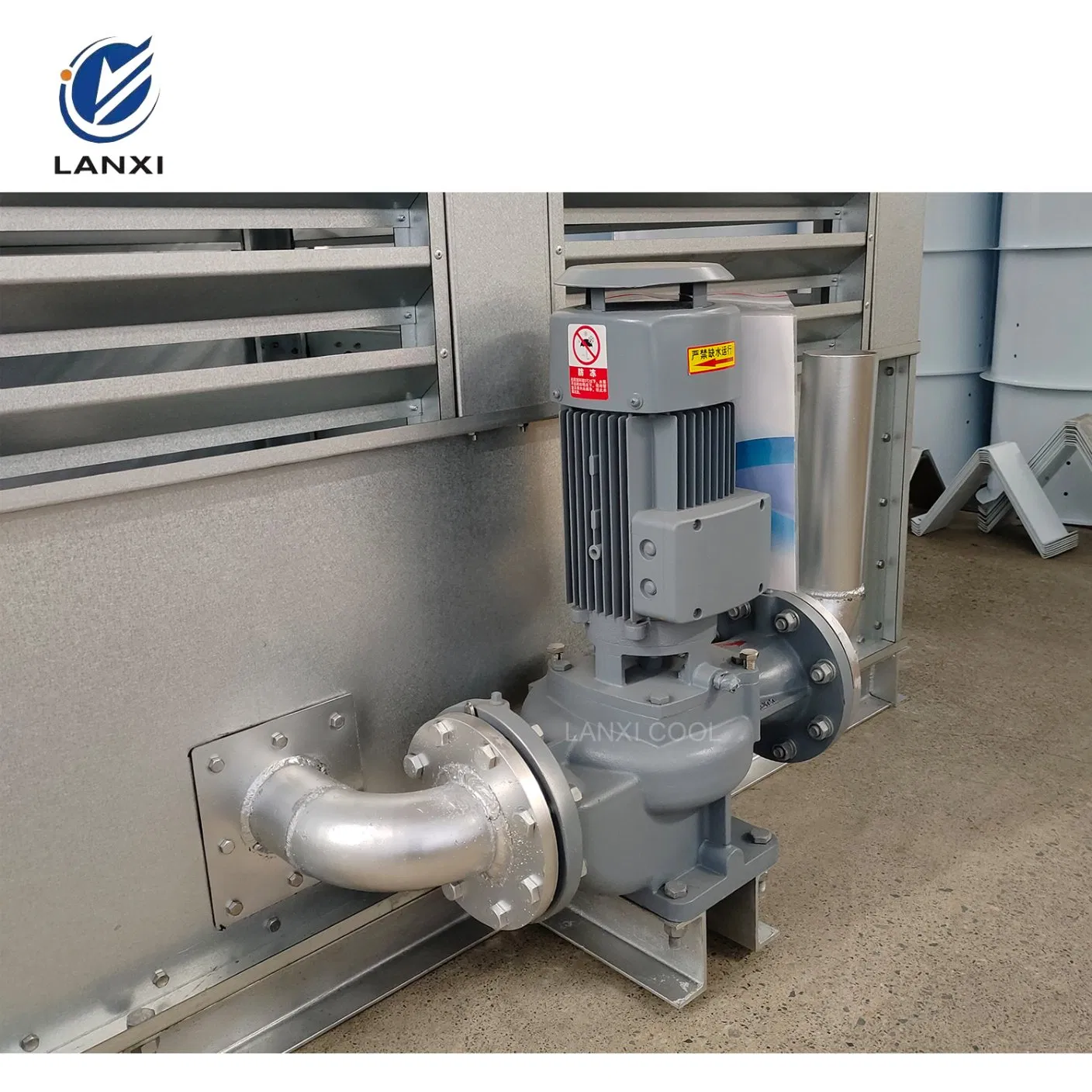

3. Circulating Pump

Features a mechanical seal for zero leakage and long life. Uses special outdoor motors with imported bearings for high flow, low noise, and reliable operation.

4. Set Up Type Dehydrator

Utilizes corrosion-resistant PVC material. Reduces water drift rate to less than 0.001% by changing flow direction. Easy to remove for cleaning.

Our products can be customized according to customer requirements and we provide OEM services.

📊

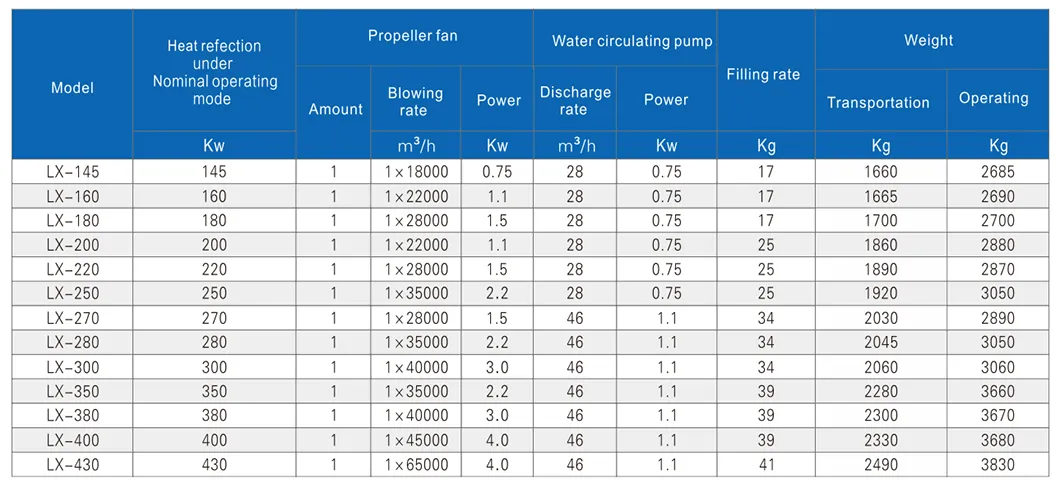

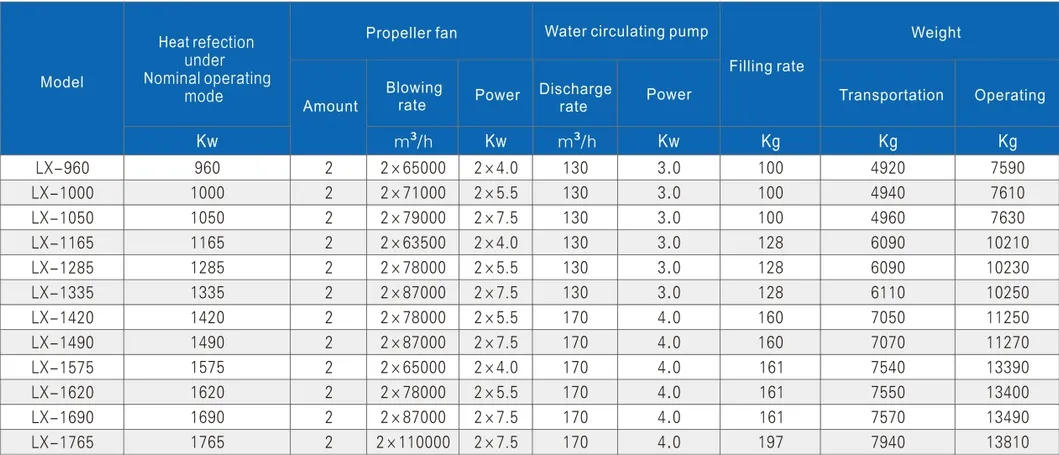

Product Parameters & Gallery

Frequently Asked Questions

What materials are available for the condensing coils?

We offer integral hot-dip zinc, as well as stainless steel options including 304, 316, and 321 to meet different anti-corrosion requirements.

How does the evaporative condenser save energy?

It utilizes the latent heat of evaporation of water films to remove heat, which is significantly more efficient than traditional air-cooled or water-cooled methods.

What is the maintenance benefit of the electronic water-curing device?

It uses electronic pulse technology to prevent scale buildup and eliminate algae/bacteria in the circulating water, reducing the need for chemical treatments and manual cleaning.

Is the circulating pump prone to leakage?

No, our pumps use high-quality mechanical seals that are not restricted by steering, ensuring zero leakage and a long operational lifespan.

How efficient is the water dehydrator?

The PVC dehydrator is designed to change airflow direction efficiently, reducing the water drift rate to less than 0.001%, which saves water and protects surrounding equipment.

Do you provide customization or OEM services?

Yes, all our refrigeration systems and condensers can be customized to specific dimensions and material specifications to suit your project requirements.
