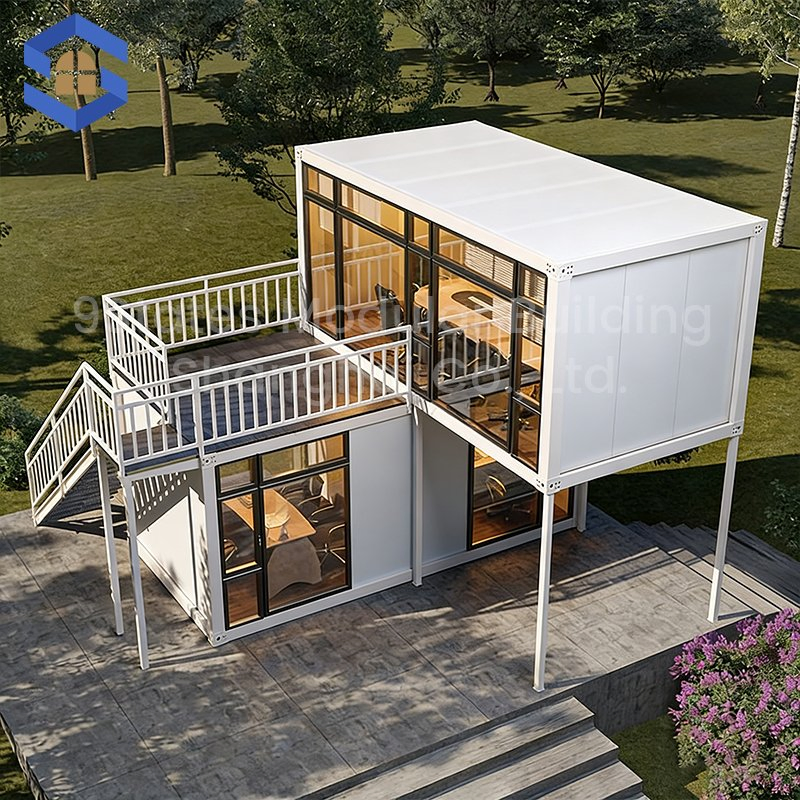

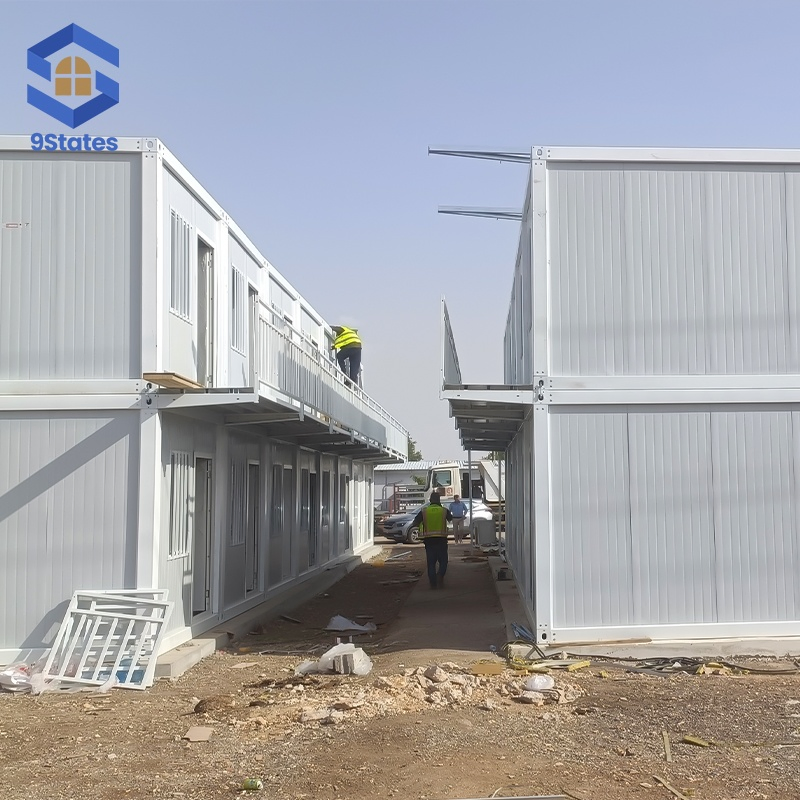

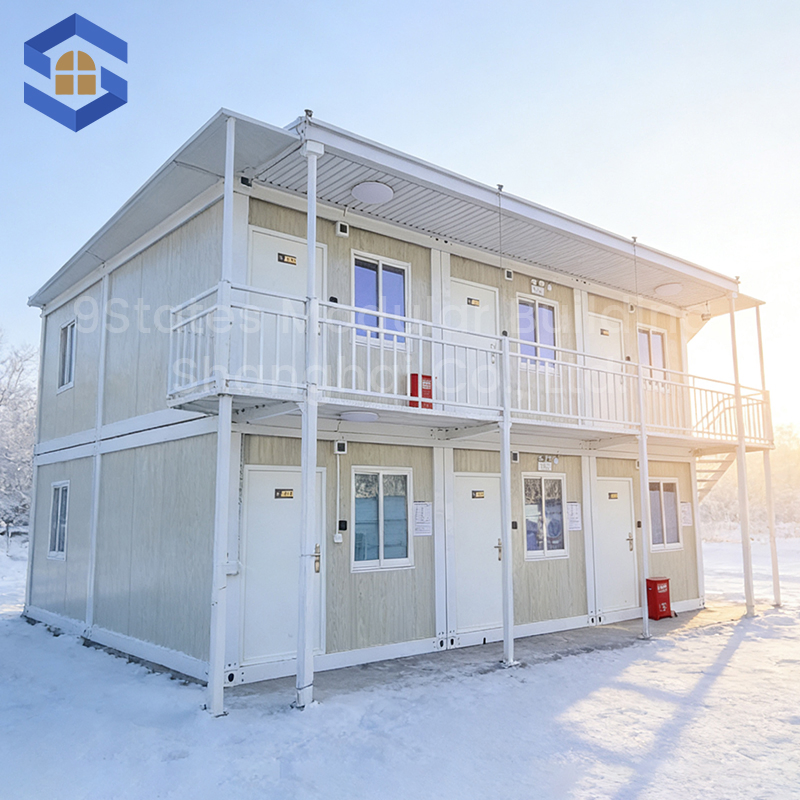

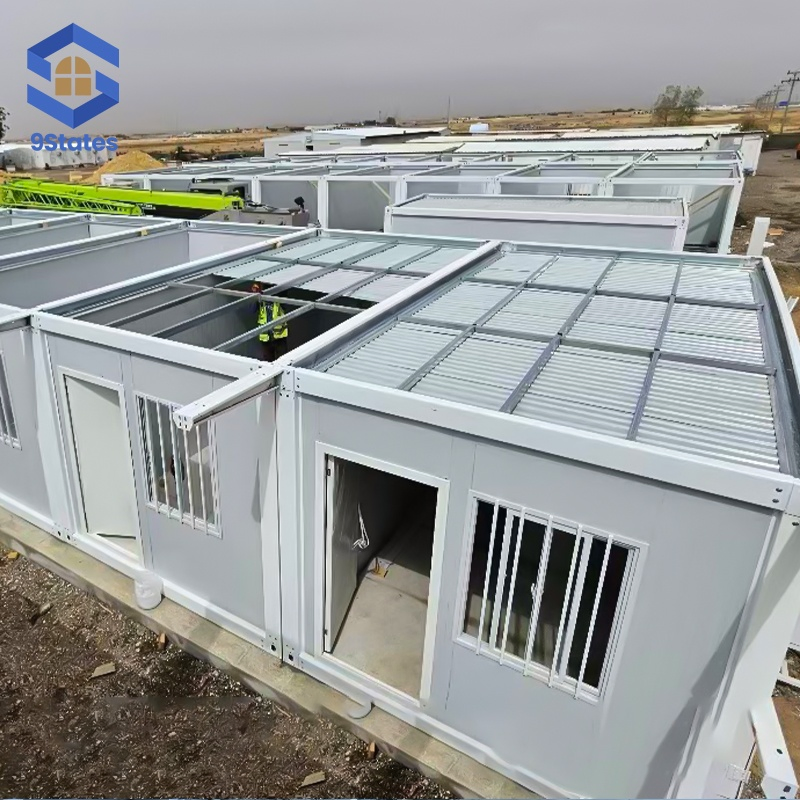

The main structure uses custom modular units (primarily 20-foot/40-foot). Units can be used individually or combined freely (horizontal splicing, vertical stacking) to meet various space requirements.

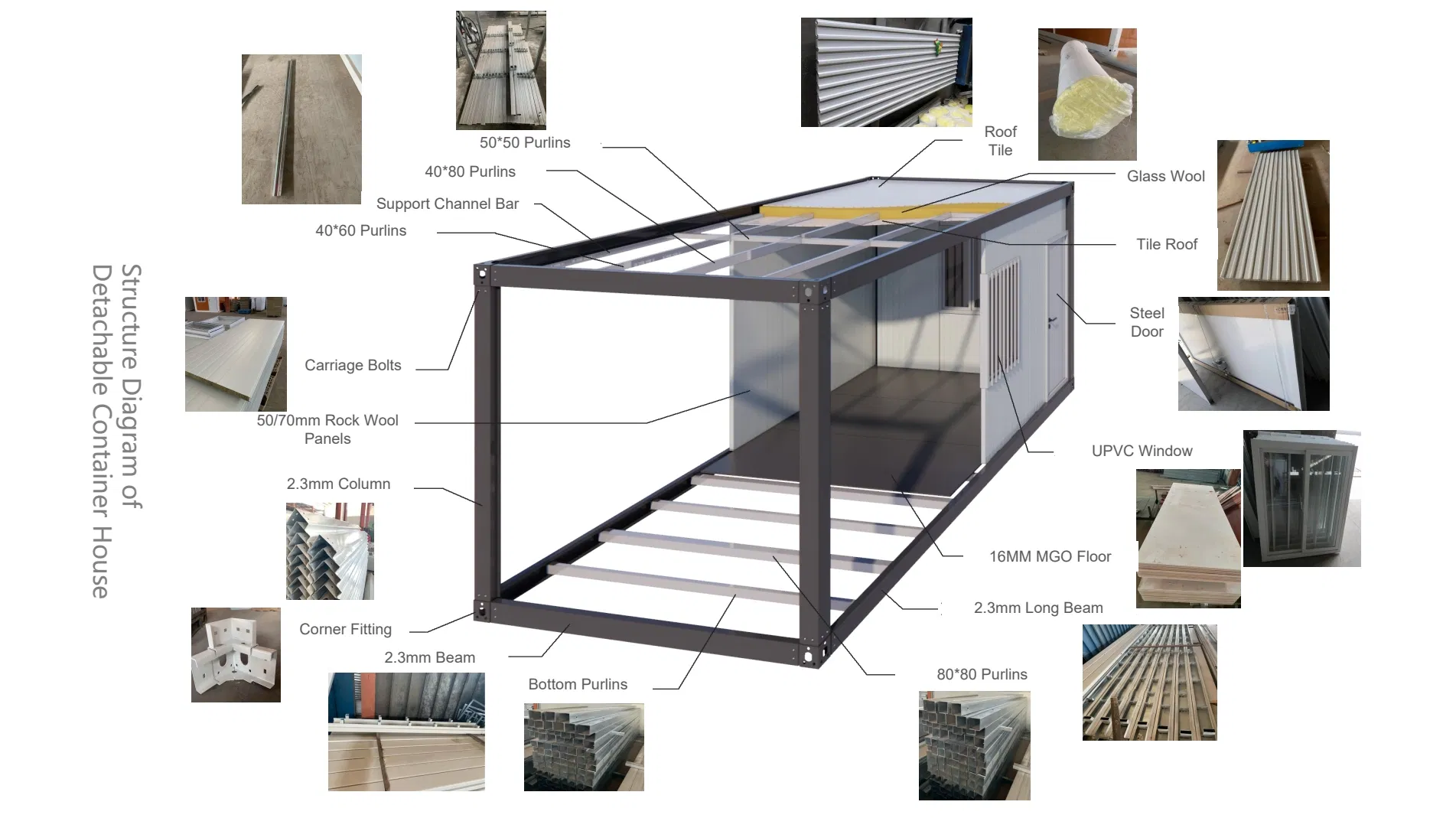

Main material is Q235B steel with a fully welded frame. Withstands wind forces up to level 10-12 and seismic forces of 6-8. Adaptable to marine environments with 15-20 years service life.

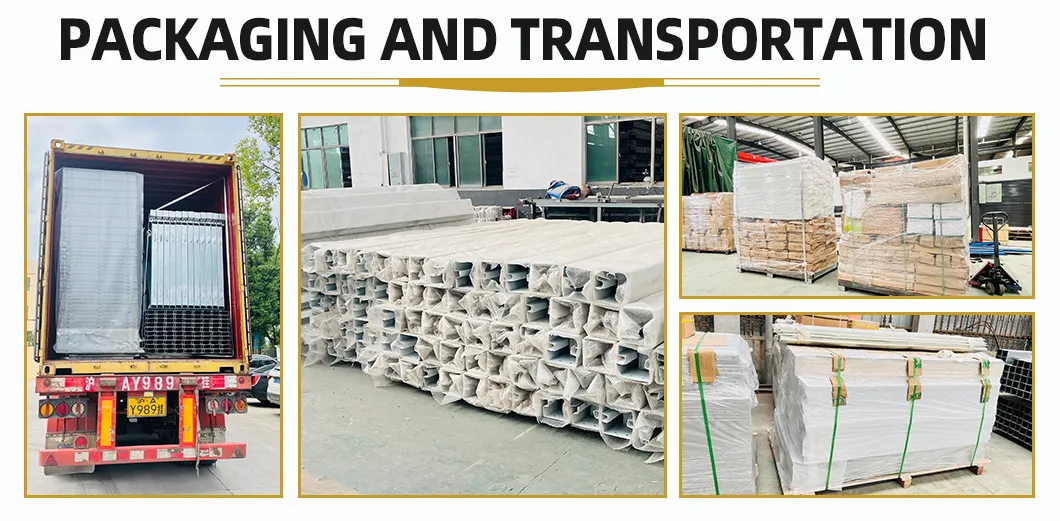

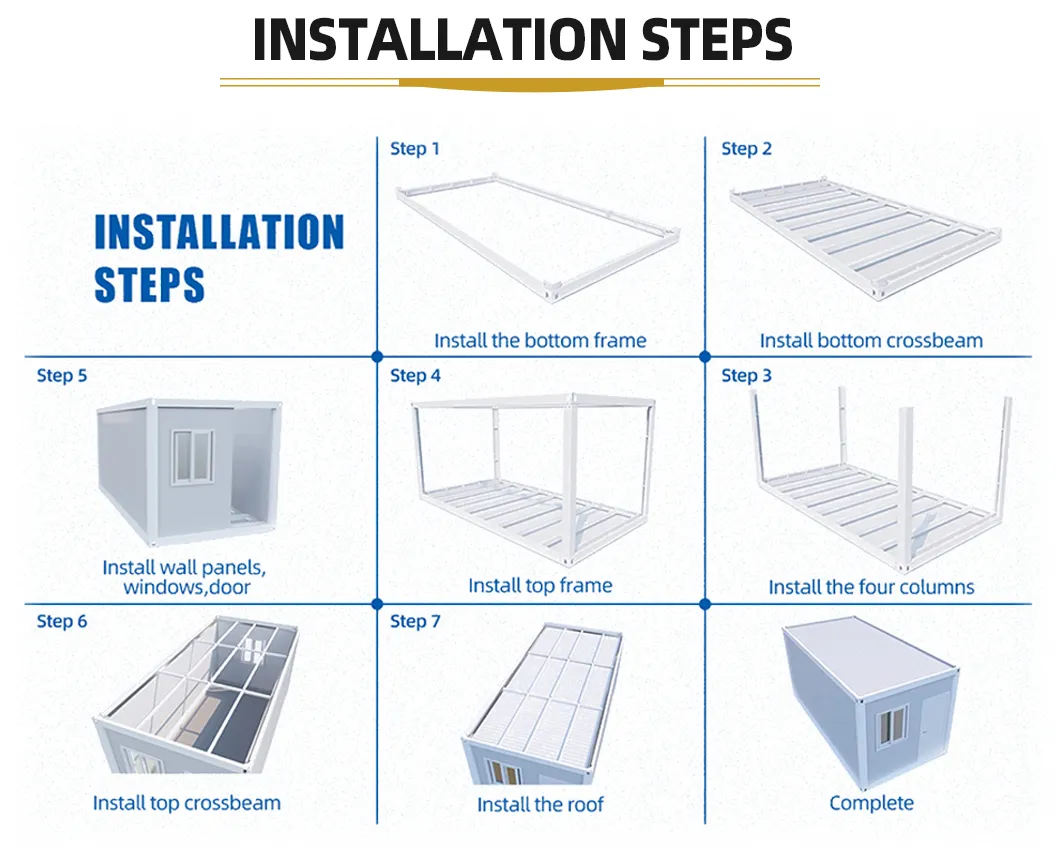

Integrated steel unit transported as a whole by forklift or trailer. Factory prefabrication means on-site installation takes only 3 hours for three people, saving 70% of traditional construction time.
Complete living systems (bedroom, kitchen, bathroom) or open-plan office layouts with pre-installed utilities.

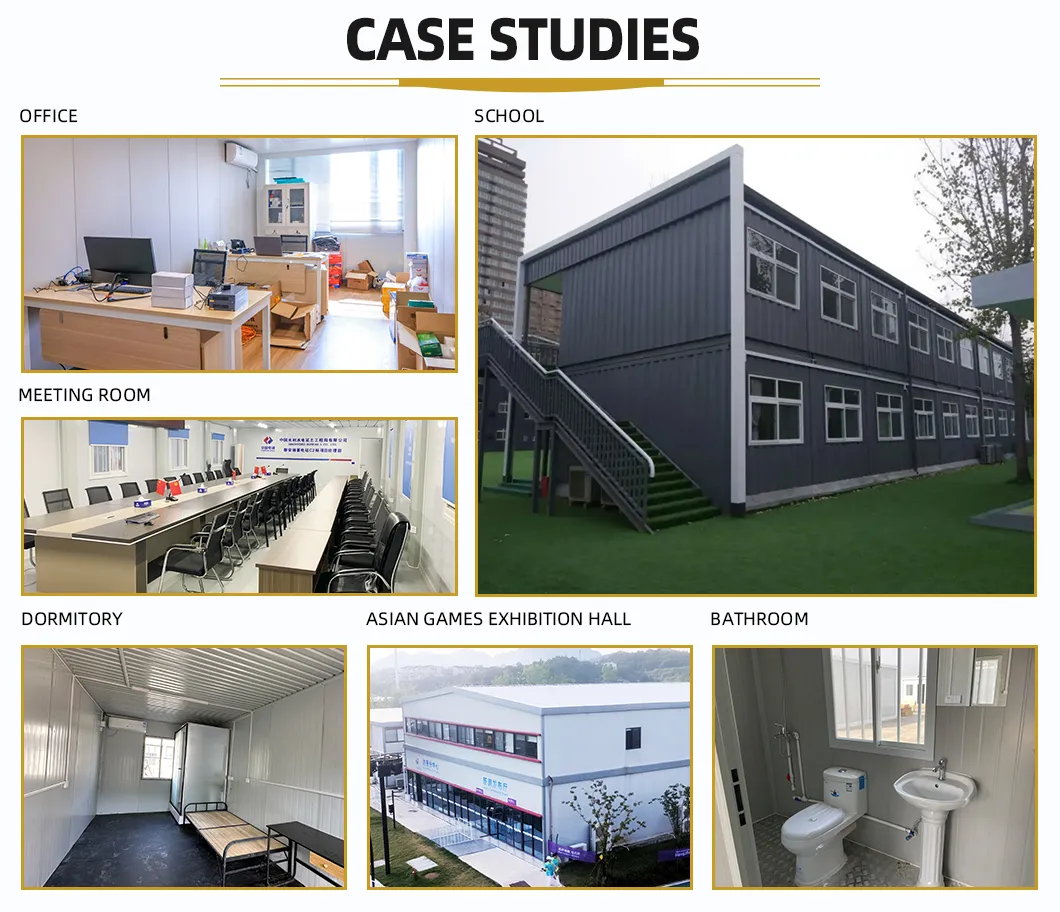

Ideal for convenience stores, coffee shops, guard booths, and emergency medical stations.
| Component | Details | |
|---|---|---|
| Size | 5950*3000*2800mm (L*W*H) | |
| Wall Panel | 0.3mm color steel + 50mm rock wool sandwich panel | |
| Door | Steel fireproof door, W840mm x H2035mm | |
| Window | Upvc sliding window (1120x1100mm), double hollow glass with screen | |
| Roof | 0.4mm Thickness, 980 Type Color Steel pressure tile | |
| Floor | 18mm cement fiberboard + 1.6mm PVC floor leather | |
| Technical Parameters | Temp Resistance | -20°C to 50°C |
| Wind Load | Grade 11 | |
| Earthquake | Grade 7 | |
