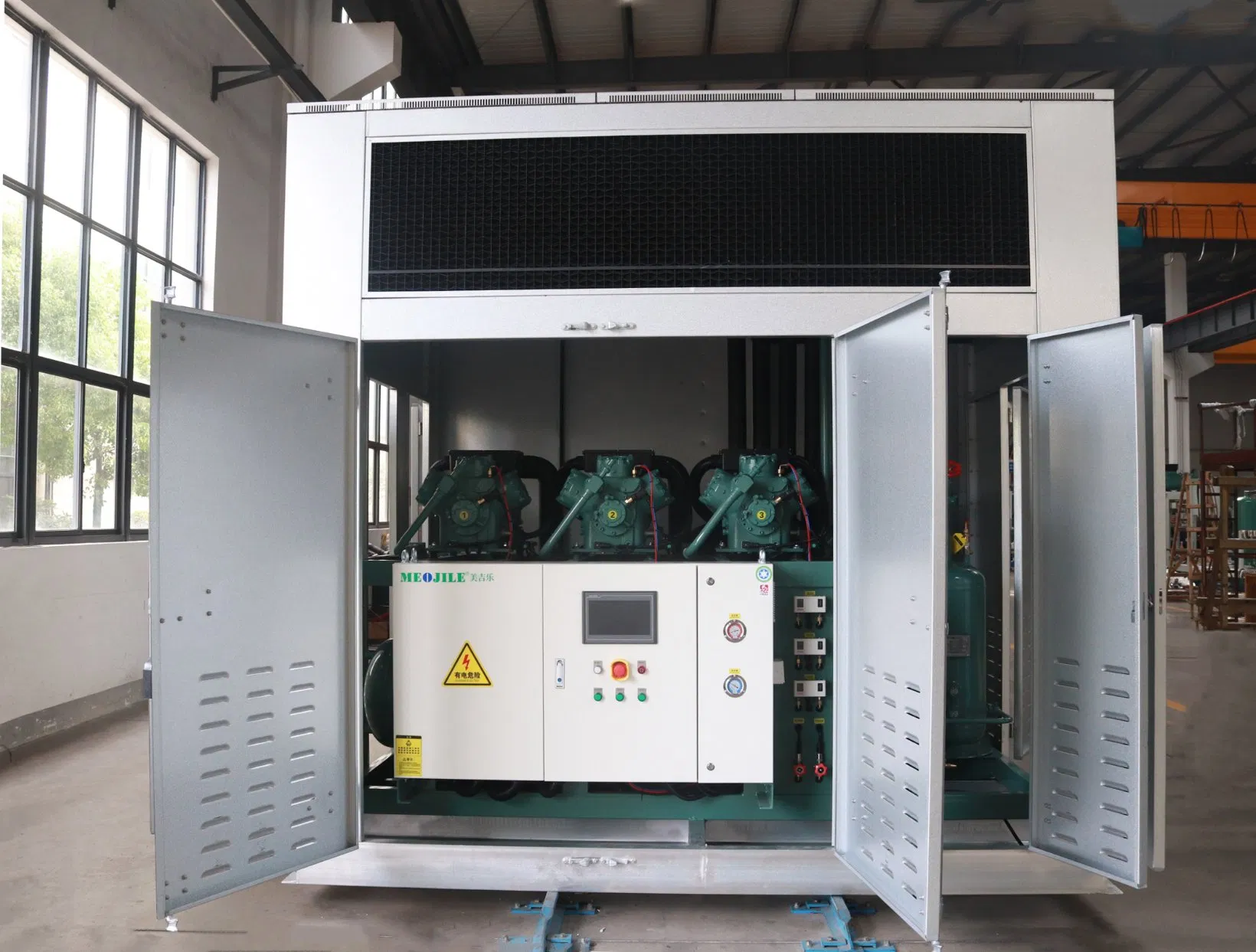

120HP Container Type B Itzer Piston Compressor Racks Unit for Cold Room

Customization:	Available
After-sales Service:	Oversea Aftersales Is Available
Warranty:	12 Months

📋 Basic Information

Model NO.

MBZBFF3-120M(Y)

Principle

Reciprocating Compressor

Application

Room Temperature Control

Performance

Low Noise, Variable Frequency, Explosion-Proof

Lubrication Style

Lubricated

Drive Mode

Electric

Configuration

Portable

Power Source

DC Power

Material

Cast Iron

Compressor

B Itzer

Cooling Type

Air Cooled

HP

120HP

Voltage

380V/3p/50Hz

Package Size

320.00cm * 120.00cm * 185.00cm

🔍 Product Overview

MBZBFF series products are applicable to the large size -20ºC to +5ºC temperature refrigeration systems. These products are widely used for industrial freezing, hotel cold storage, industrial cooling, medical storage, freezing trucks, express services, ship storage, fruit and vegetable storage, workshops, and ice makers. Advance refrigeration technology ensures customer satisfaction for diverse refrigeration requirements, providing complete solutions.

✨ Key Features

✅

Reliable System

Equipped with famous brand compressors, PLC controllers, and high-efficiency oil separation systems.

🔊

Low Noise & Vibration

Features low-temperature screw compressors with high efficiency, long service life, and minimal vibration.

🛡

Full Protection

Includes protection for wrong direction, overheating, overload, discharging temperature, oil levels, and pressure.

📈

High Capacity

Matched with economizers to effectively increase capacity for low-temperature operations.

📝 Model Nomenclature

M BZ BF F 2-S 100 / J Y
• BZ: Compressor Brand (B itzer)
• BF: Piston Compressor Type
• F: Air Cooled / Evaporative Condenser
• 2: Compressor Quantity
• S: Two-stage Compressor (/ for single)
• 100: Horsepower (HP)
• J/H/M/L: Temperature Range (-50ºC to +20ºC)

⚙ Main Components

Compressor, condenser, pressure controller, pressure oil gauge, pressure sensor, filter vat filter core, liquid angle valve, accumulator, suction check valve, oil separator, oil safety valve, oil pipe ball valve, oil cooler, oil cooler valves, solenoid valve, economizer, sight glass, expansion valve, touch screen, LP sensor, PLC controller, Siemens HMI.

📊 Technical Specifications

Piston Compressor Racks for Middle Temperature Cold Room
Unit Model (MBZBFF3-)	30M(Y)	45M(Y)	60M(Y)	75M(Y)	90M(Y)	105M(Y)	120M(Y)	150M(Y)
Compressor Model	4VES-10	4PES-15	4NES-20	4HE-25	4GE-30	6HE-35	6GE-40	6FE-50
Cooling Capacity (KW)	57.87	79.8	95.7	127.2	145.8	186.6	212.4	259.2
Power Input (KW)	22.8	31.74	37.98	50.28	58.11	75	86.7	107.4
Running Current (A)	41.16	57.39	66.3	88.5	104.7	133.8	160.8	220.8
L/W/H (mm)	2800/1100/1650	2800/1100/1650	2800/1100/1650	2900/1200/1750	2900/1200/1750	3200/1200/1850	3200/1200/1850	3200/1200/1850

* Cooling capacity and power are calculated at 45ºC condensing temperature with air-cooled condenser.

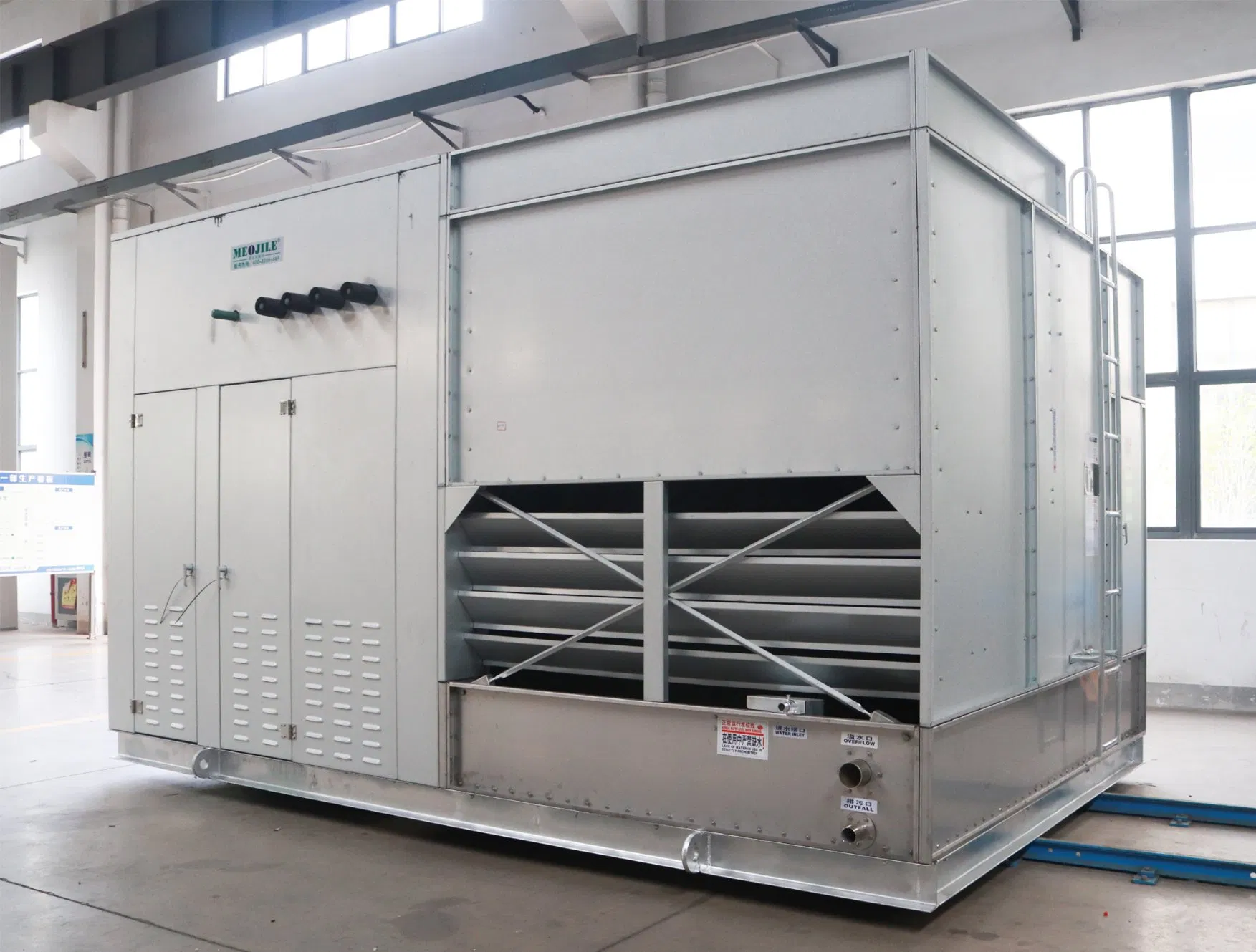

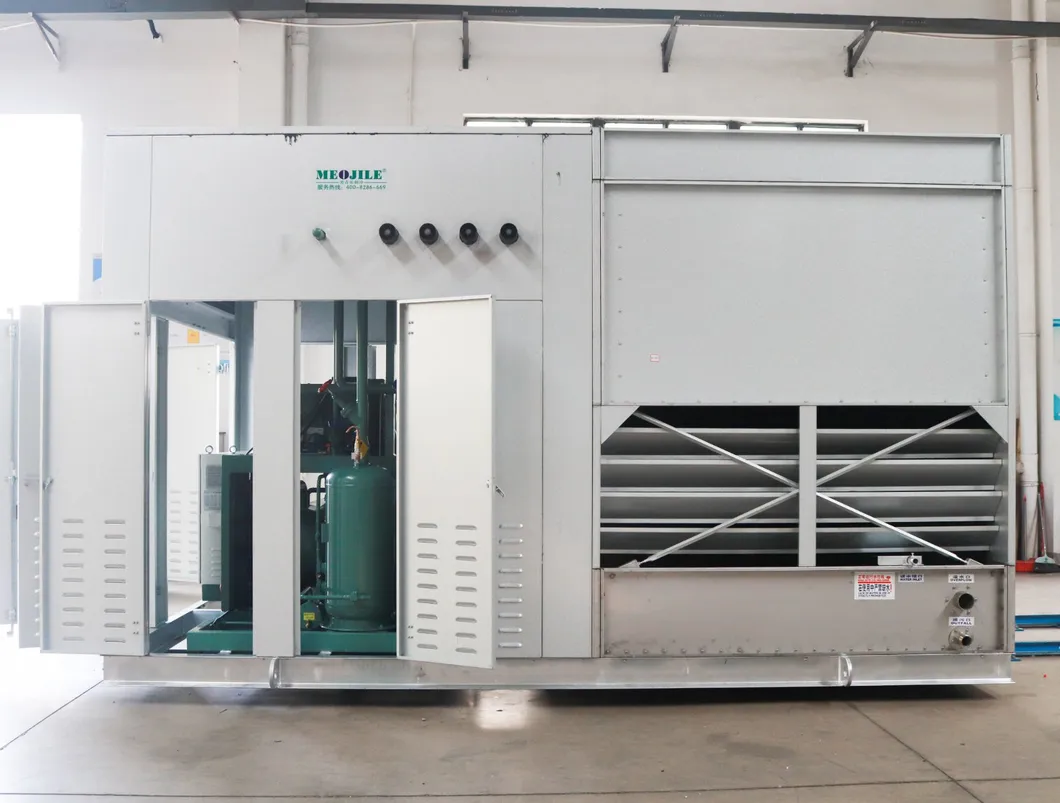

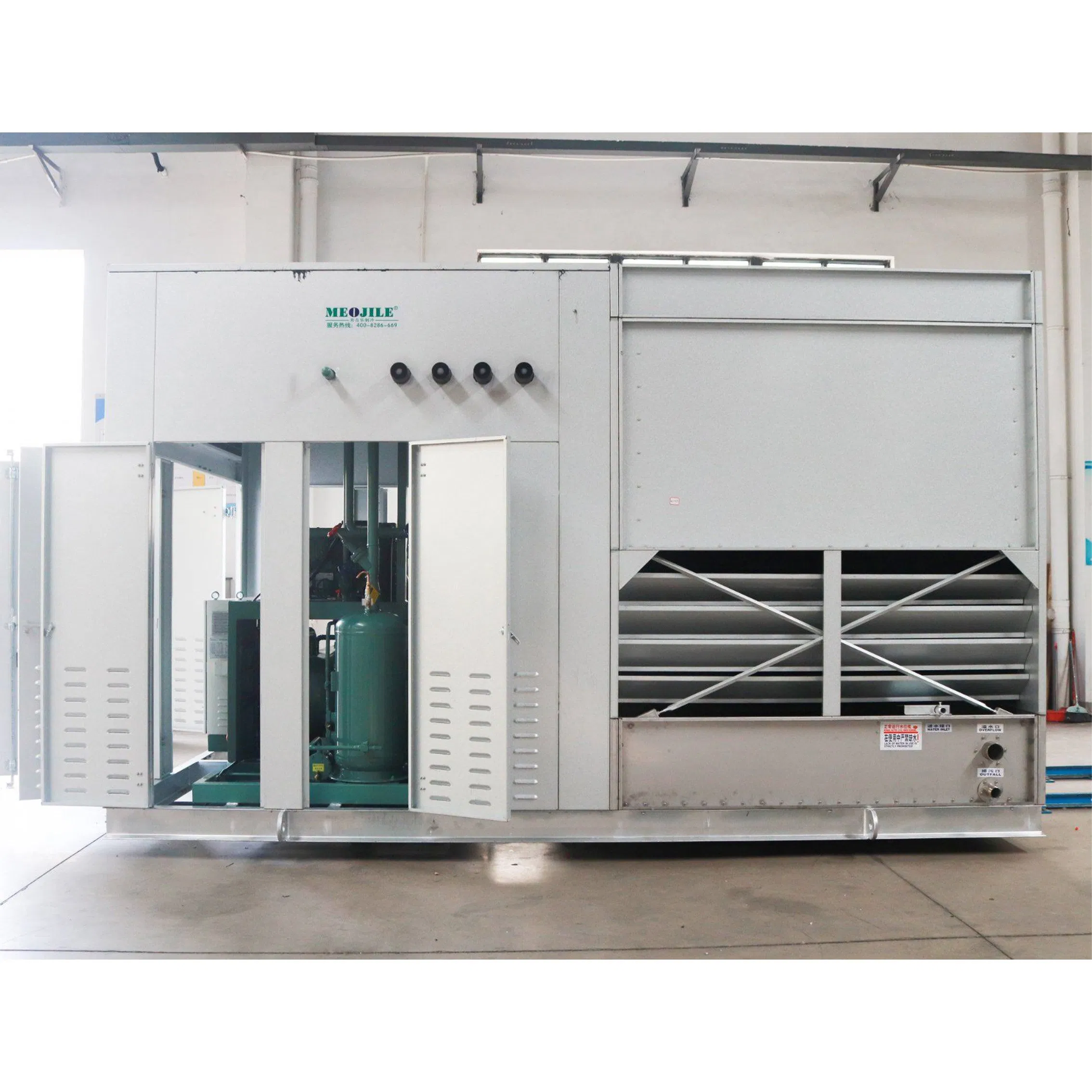

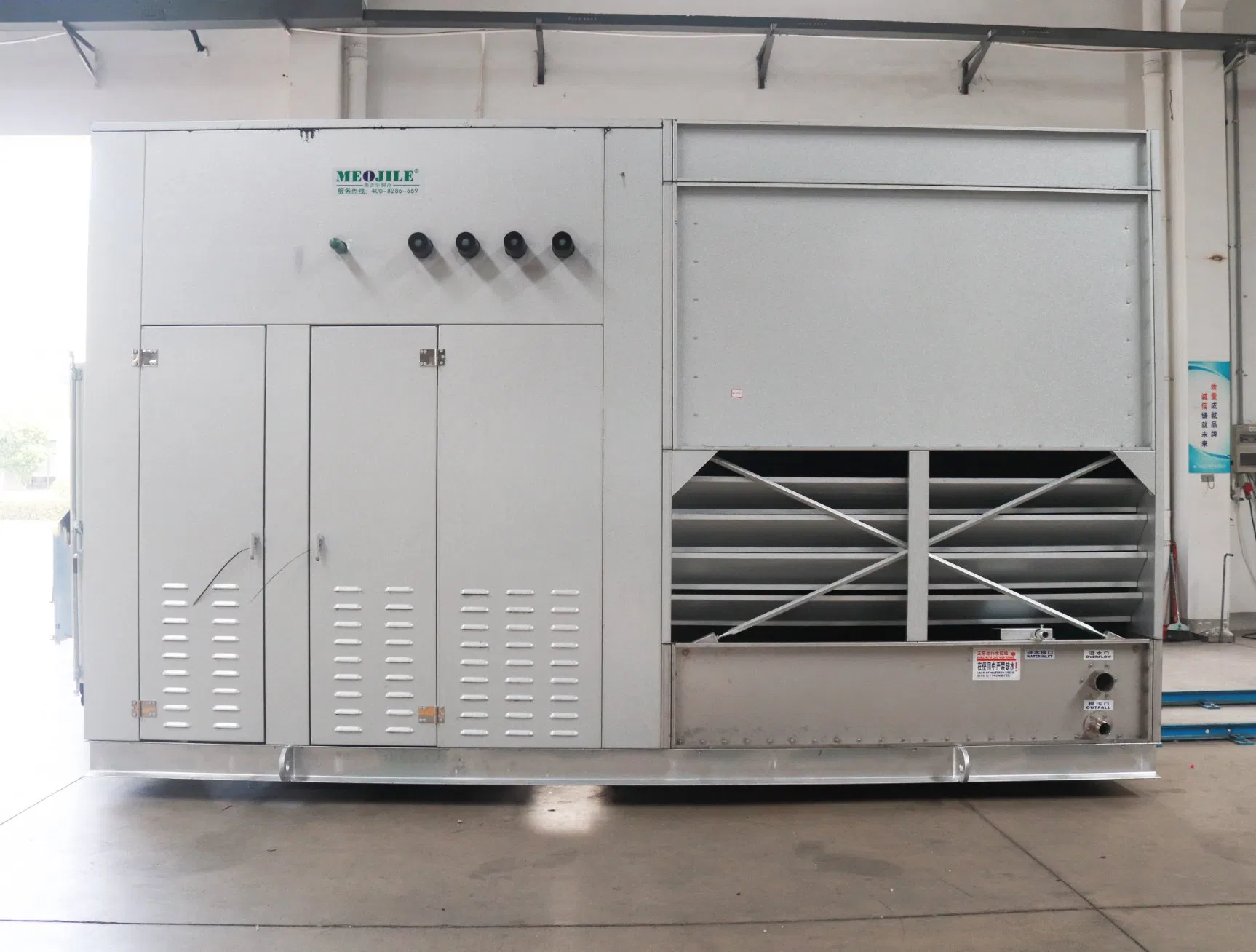

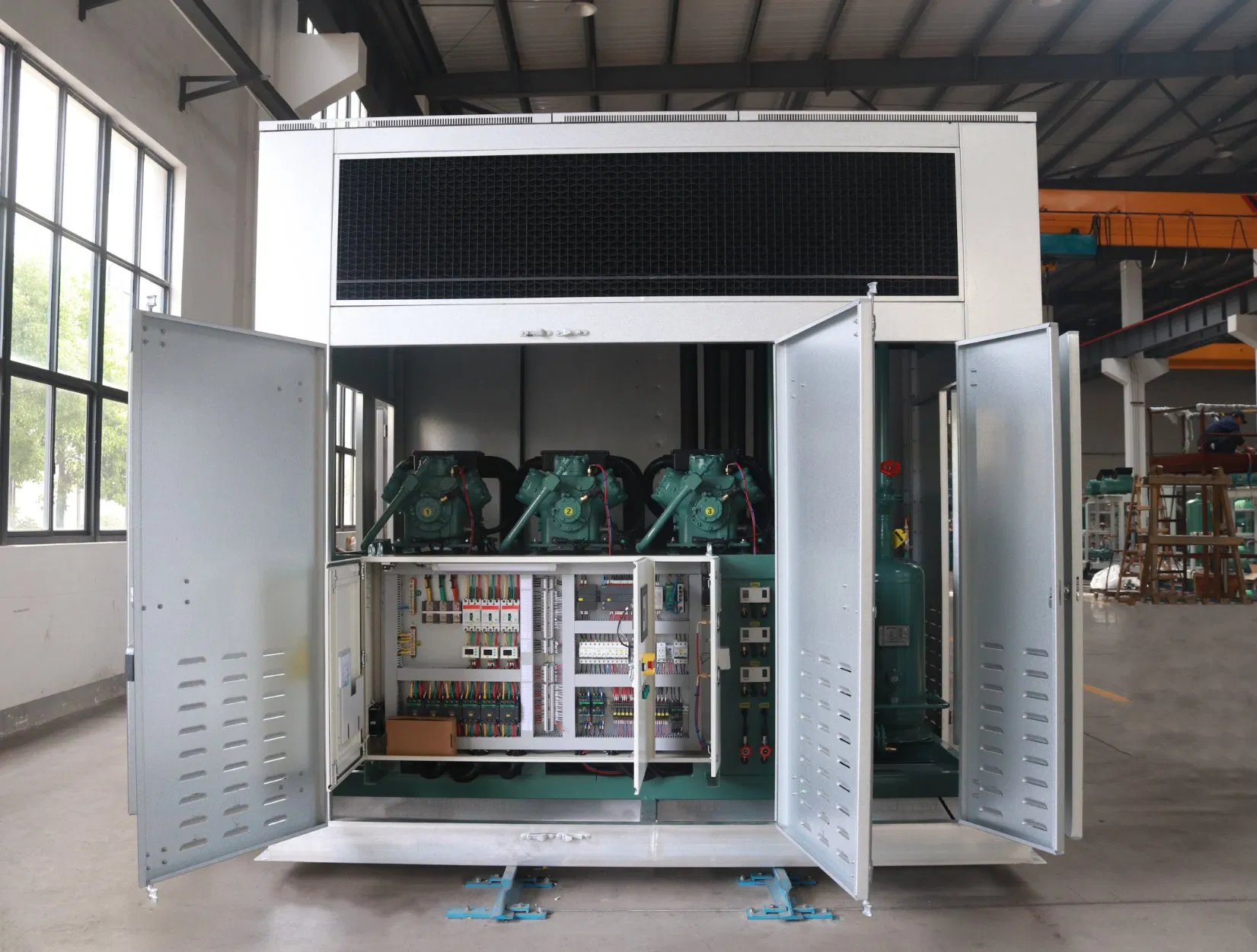

📸 Detailed Photos

❓ Frequently Asked Questions

What temperature range is this compressor unit suitable for?

The MBZBFF series is designed for a wide range of temperatures, specifically suitable for systems operating between -50ºC and +20ºC, making it ideal for both cold storage and industrial freezing.

Which refrigerants can be used with this unit?

The standard units are compatible with R22, R404A, and R507A refrigerants, providing flexibility based on your specific cooling requirements.

What safety protections are integrated into the system?

The unit includes a comprehensive set of protection devices for wrong rotation direction, overheating, overload, excessive discharging temperature, low oil levels, and high/low oil flow pressure.

Does the unit support remote monitoring or control?

Yes, the system is equipped with a PLC controller and Siemens HMI touch screen interface, allowing for precise control and easy monitoring of the operation.

Is the unit designed for low-noise environments?

The unit utilizes high-quality screw/piston compressors known for high efficiency, tiny vibration, and low noise levels, suitable for various industrial and commercial installations.

What is the standard power supply for these racks?

The standard power supply is 380V, 3 Phase, 50Hz. However, specific configurations may be discussed based on the technical horsepower requirements.
