| Model NO. | KH1000 | Certification | ISO 9001:2000, ISO 9001:2008, API Q1, API 16c |
| Power Source | Diesel, Electric | Operation Pressure | High Pressure |
| Applicable Medium | Mud, Water, Slurry Fluid, Drilling Fluid | Structure | Horizontal |
| Material | Q355b+Q355e+Q235B | Product Name | High Pressure Injection Skid |
| Applicable Industries | Energy & Oilfield | MOQ | 1 Piece |

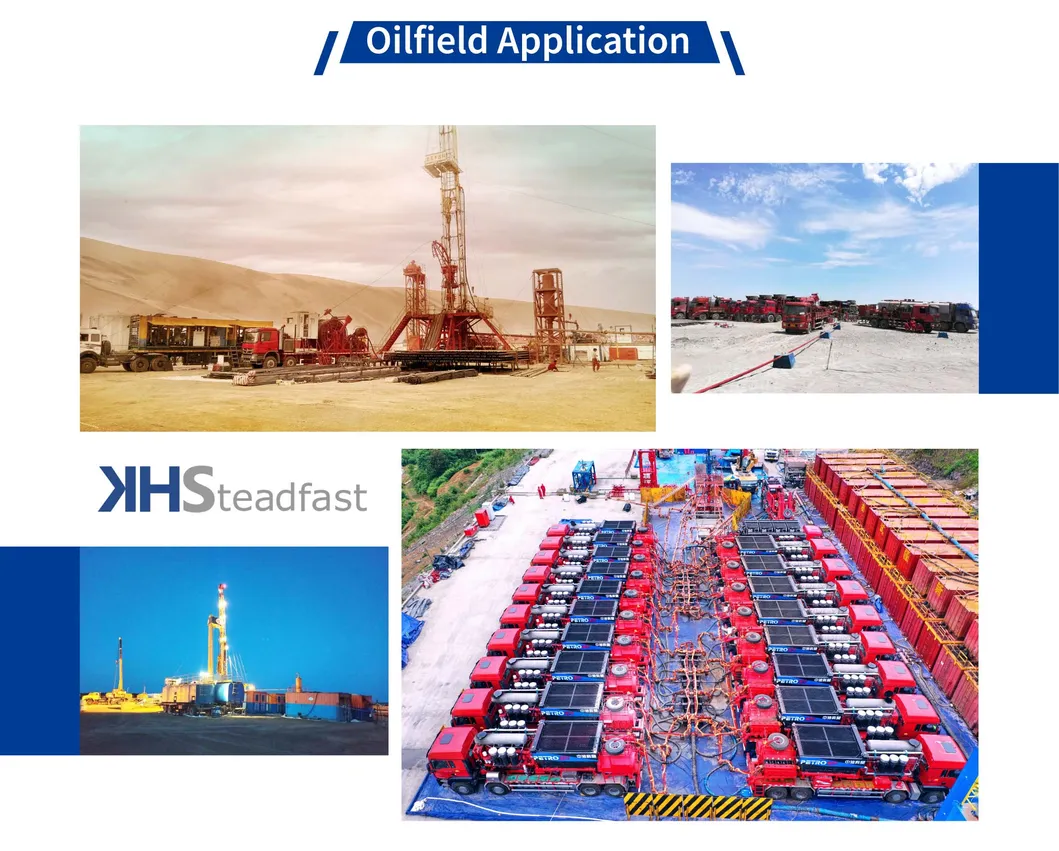

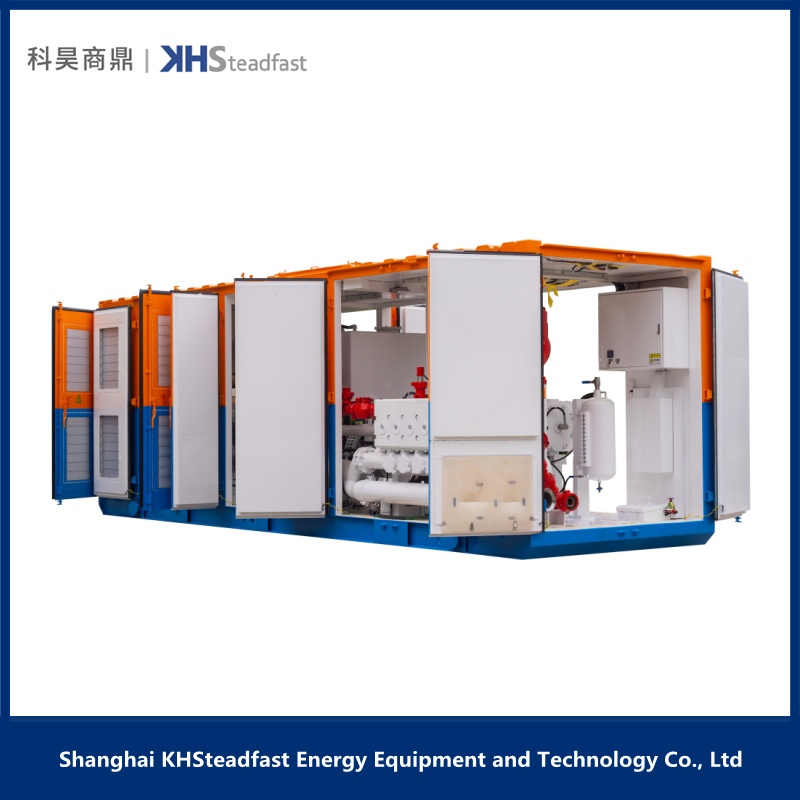

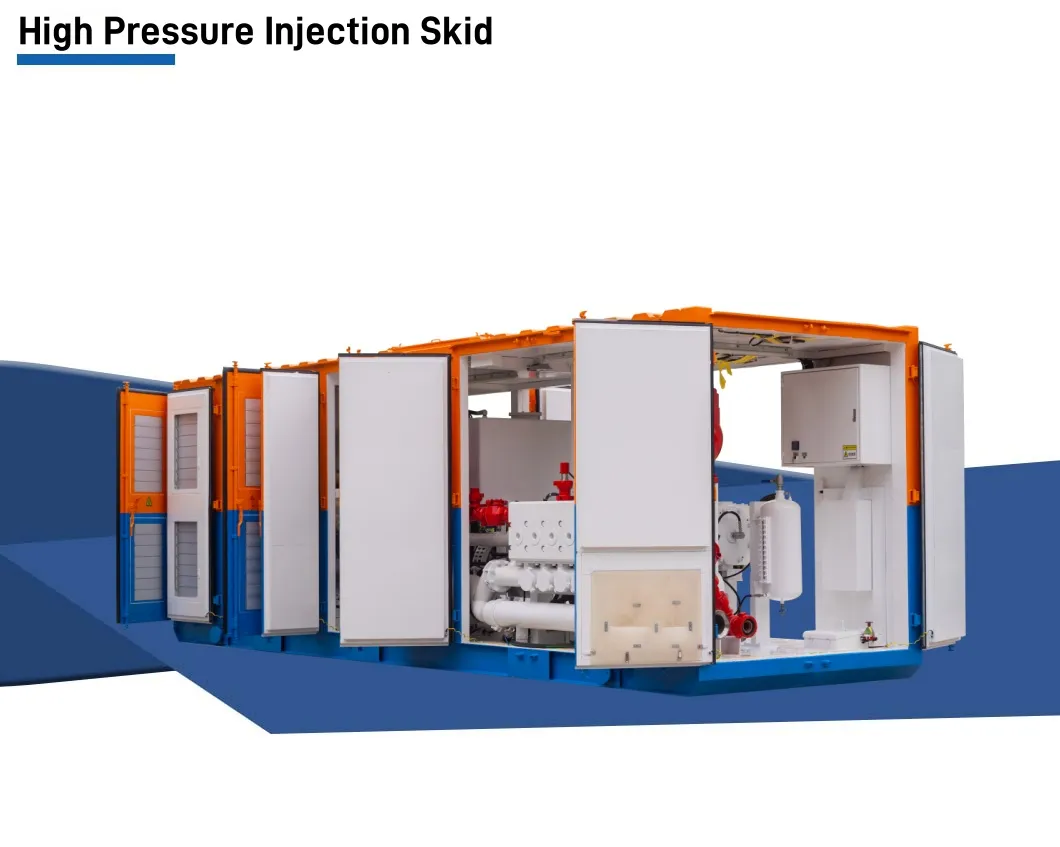

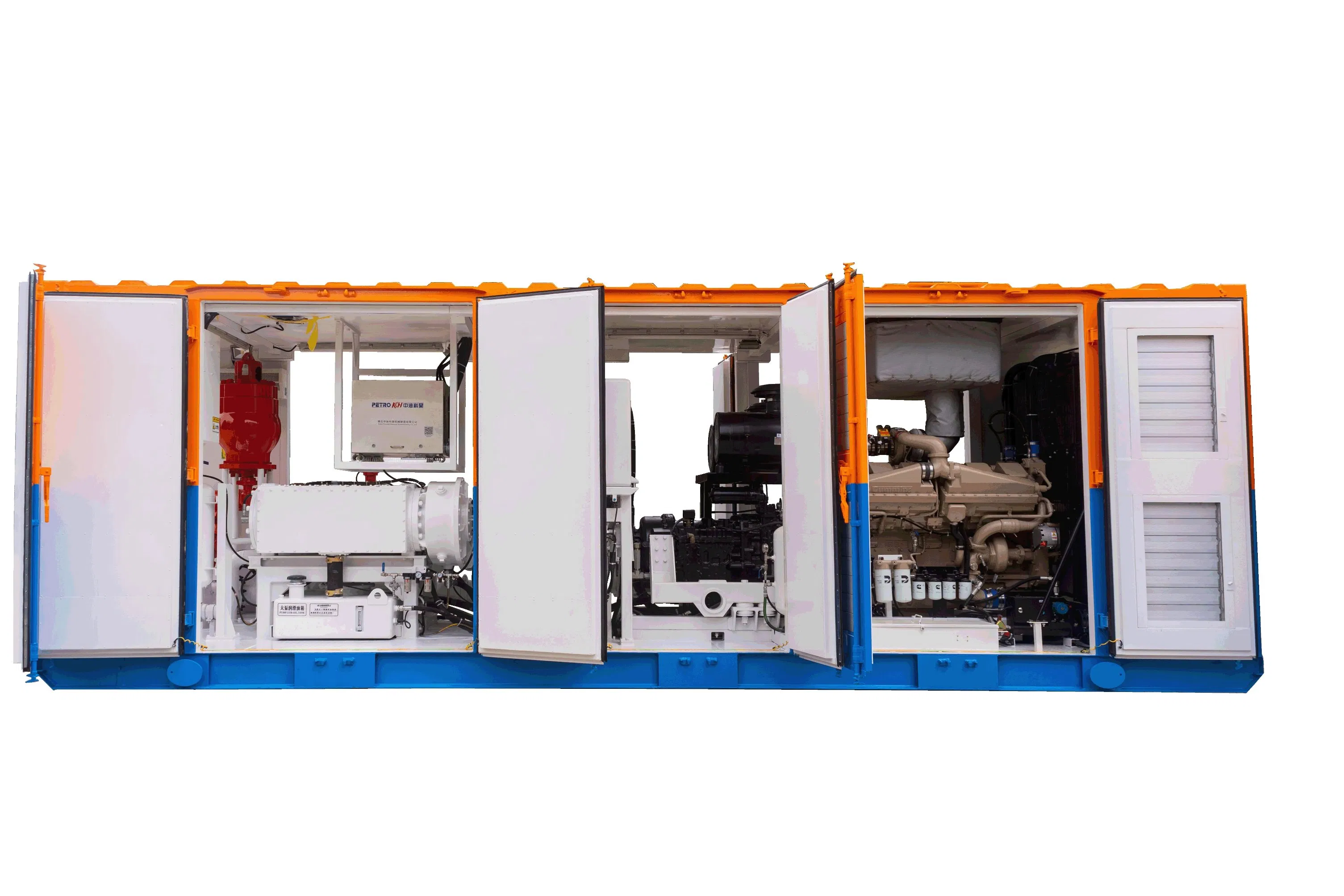

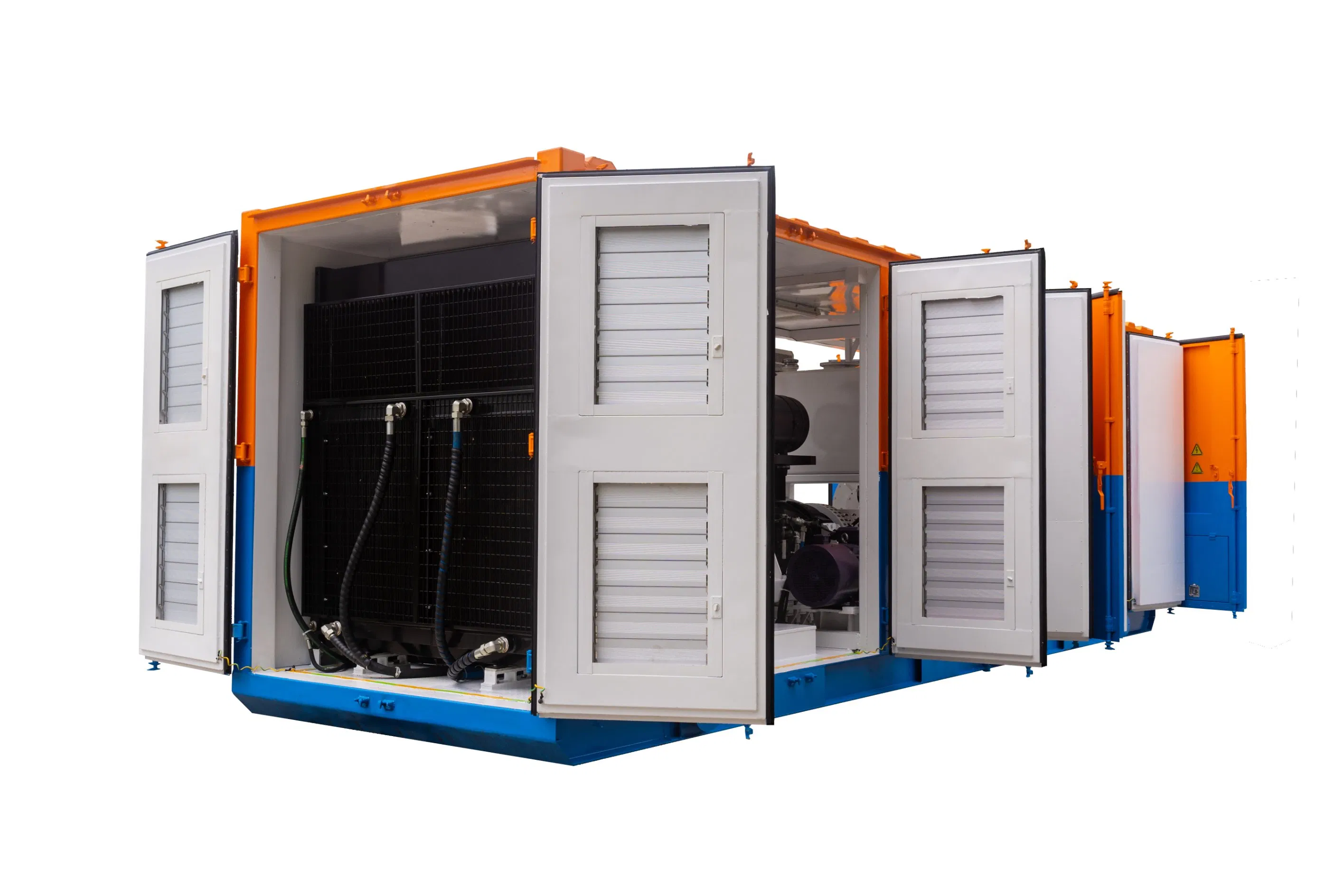

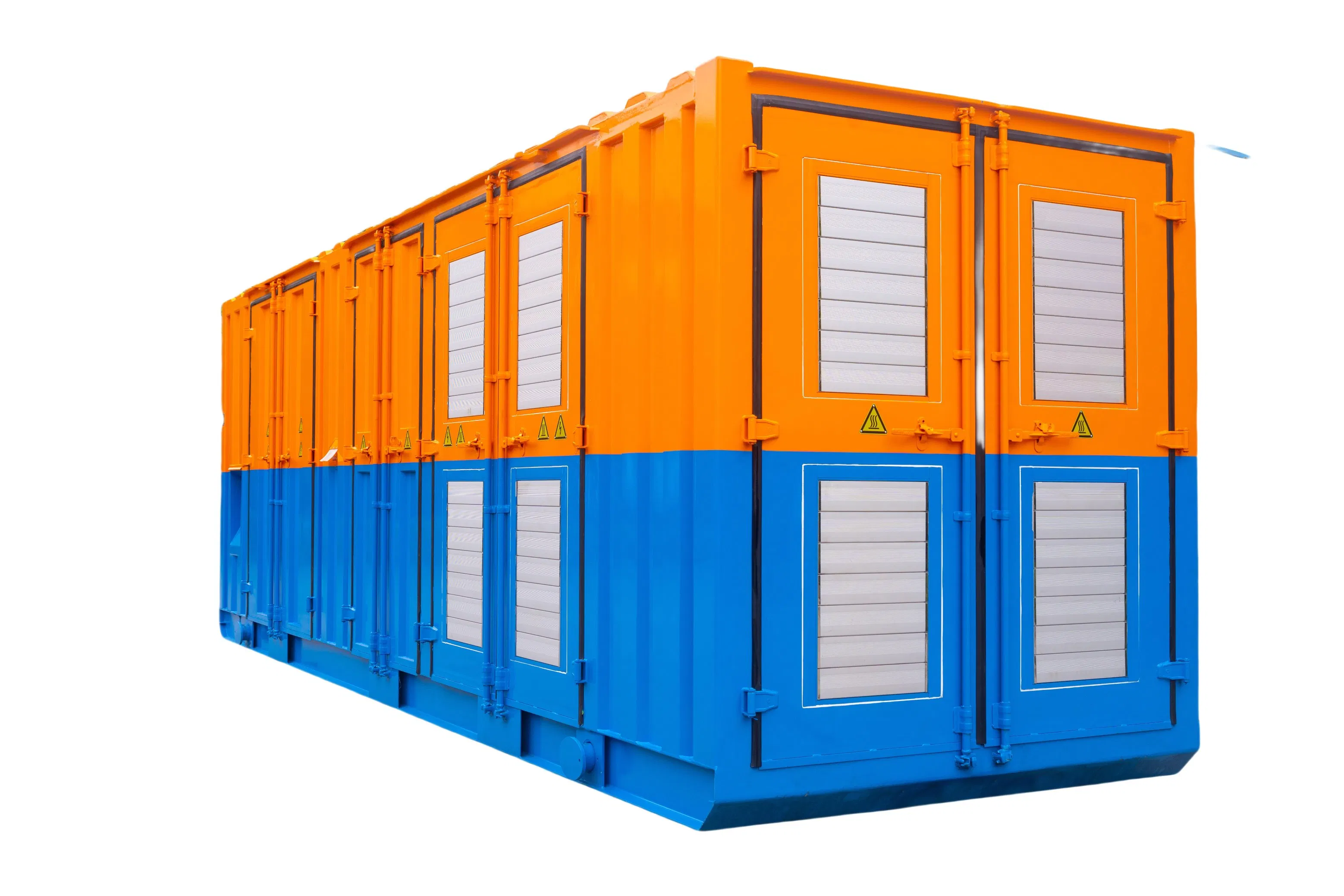

The KH1000 Pump Unit is specifically engineered to inject high-pressure cleaning fluid and circulating mud into wells during drilling operations. This unit is essential for cleaning rock from the wellbore bottom, cooling the drill bit, and driving hydraulic engines at the bottom of the well.
| Technical Parameters | |
|---|---|
| Max. Pressure | 43Mpa |
| Max. Flow Rate | 45.2L/s |

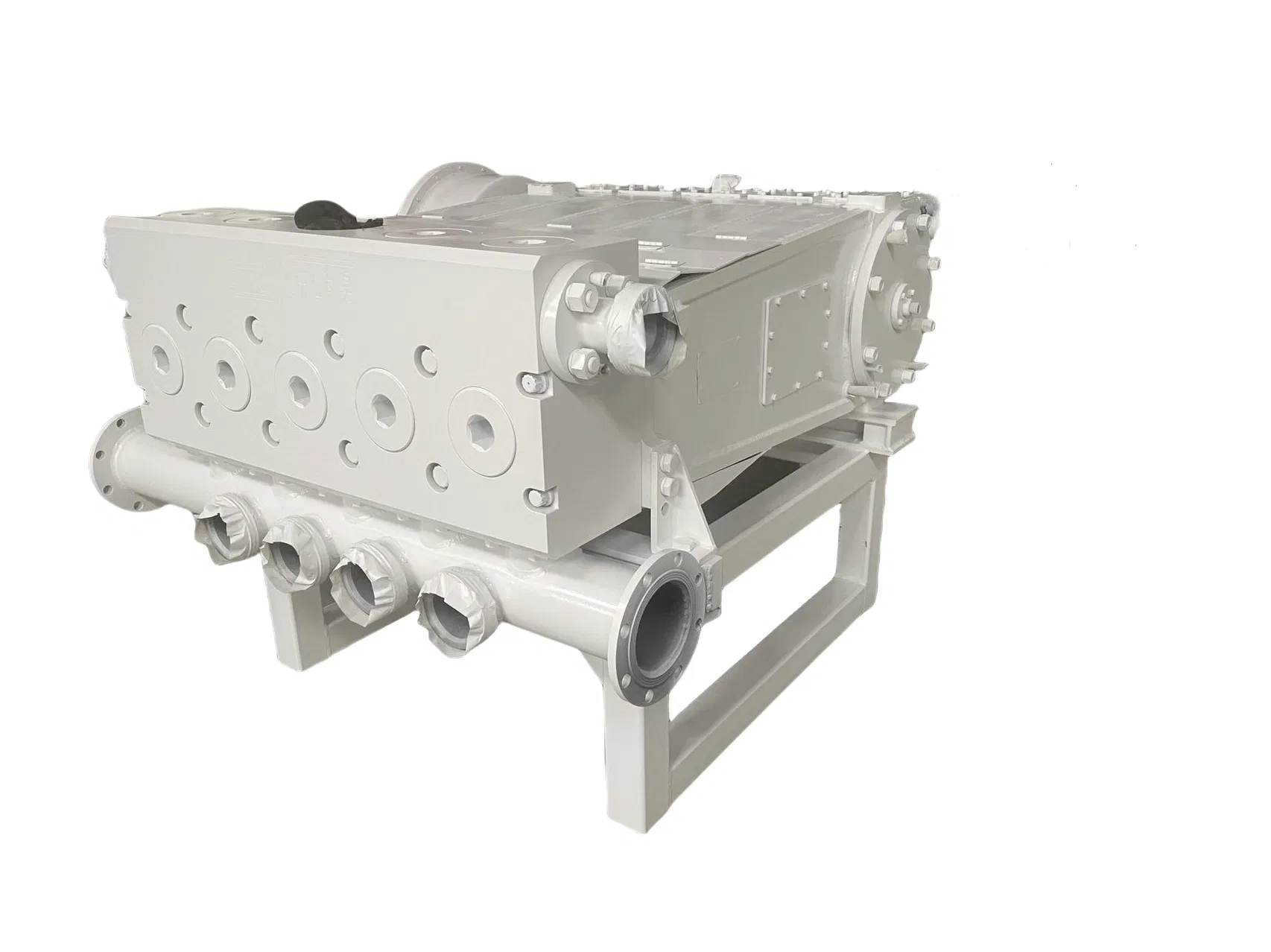

| Plunger Pump Power | 1000HP |
| Dimensions | 8450mm × 2445mm × 2895mm |
| Weight | < 28 Ton |
| Deck Engine | KTA38-C1200 / QSK38 / C27 (1200hp) |
| Control System | Local & Remote control (Signal acquisition, data display, parameter setting) |
| Environment Temp | -45°C to +45°C |

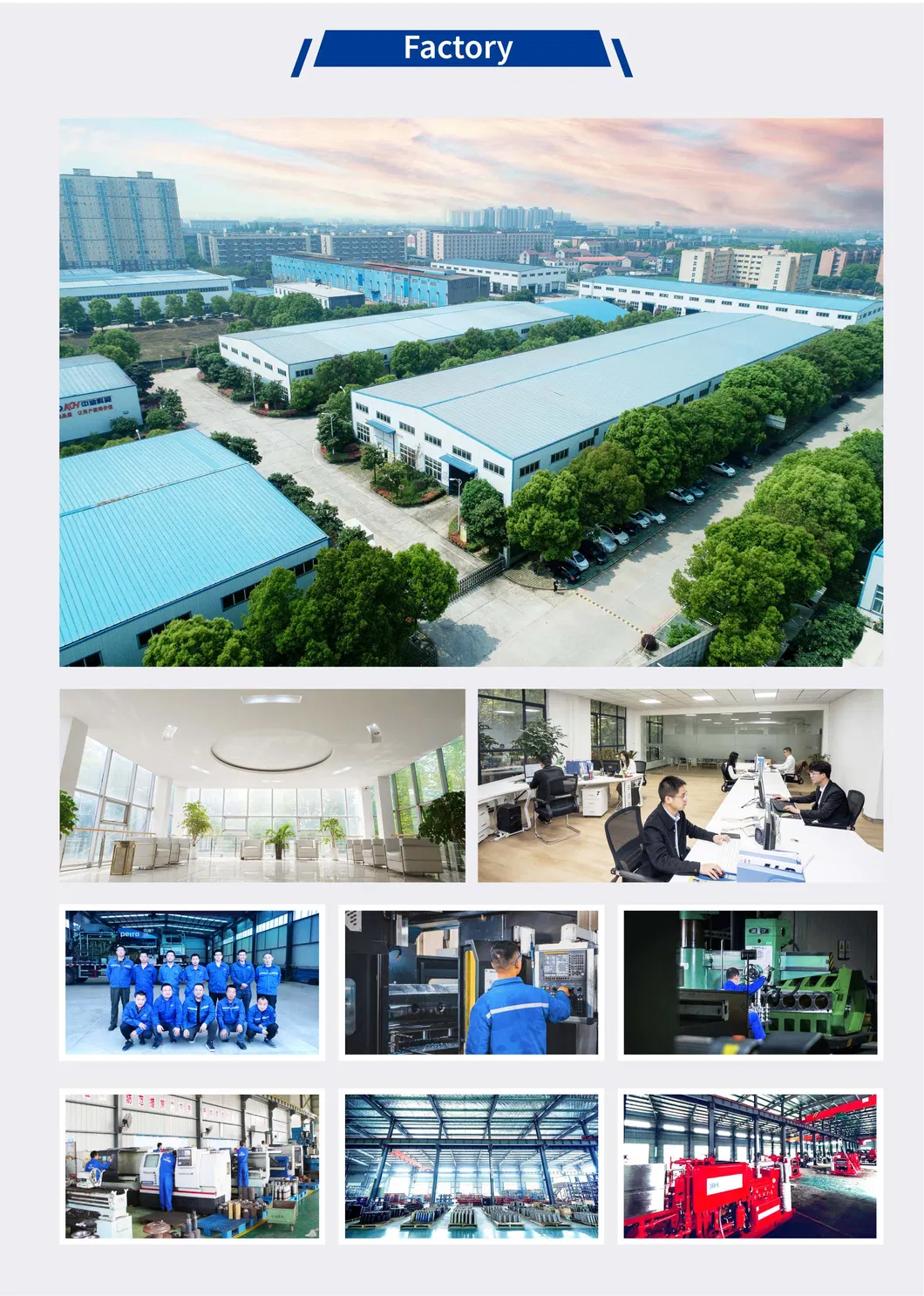

Our production center covers nearly 100,000 square meters, equipped with over 250 sets of advanced manufacturing facilities including machining centers, large boring machines, and CNC gear grinding equipment. We maintain 241 sets of inspection equipment to ensure every product meets the highest quality standards. With over 100 patents and multiple API certifications (including API 16C), we deliver sustainable solutions for the global oil and gas industry.
We provide customized packaging solutions, including robust wooden boxes, woolen wrapping, and reinforced iron cases, to ensure the absolute safety of pumps, equipment, and spare parts during international transit.
