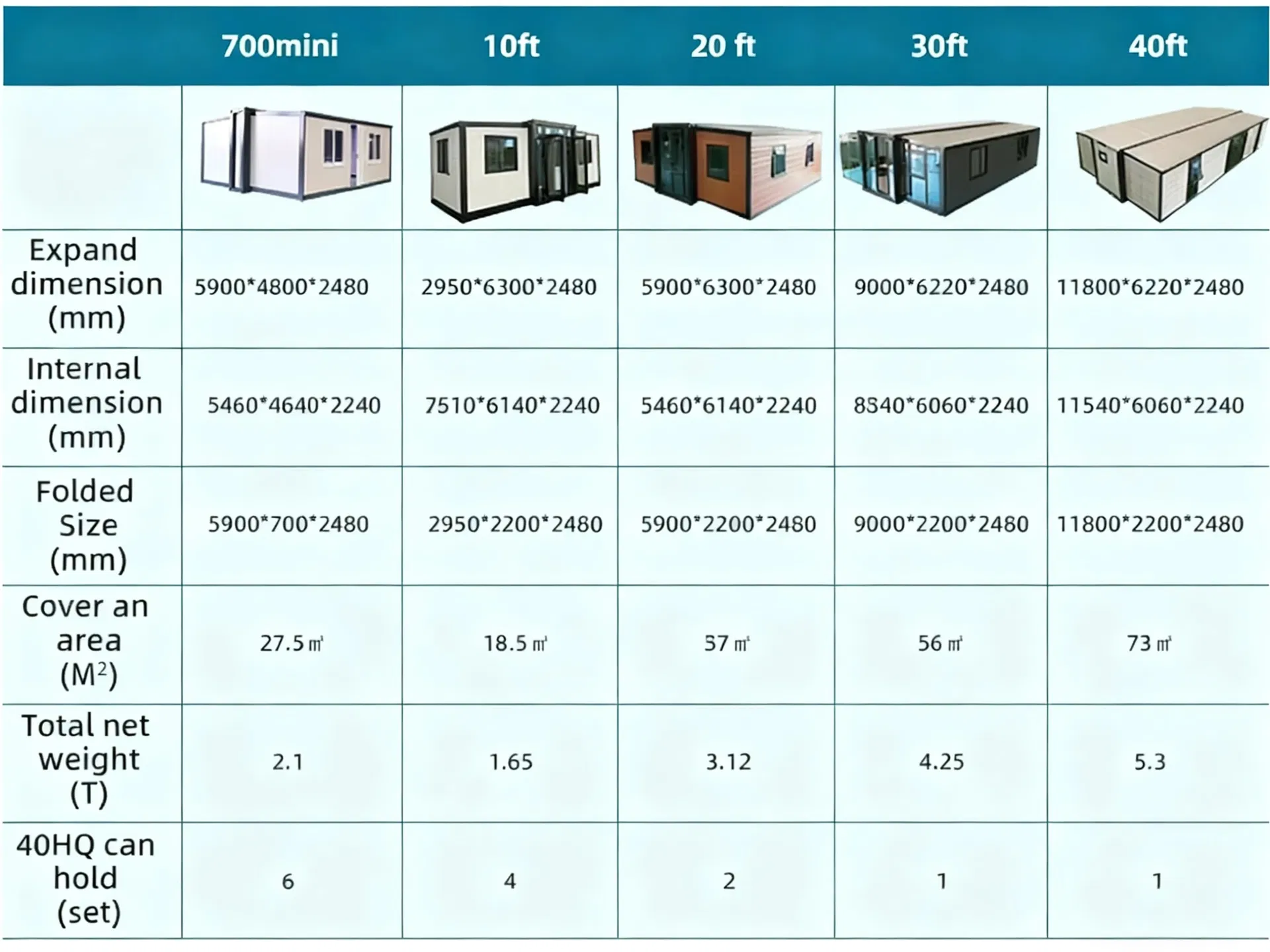

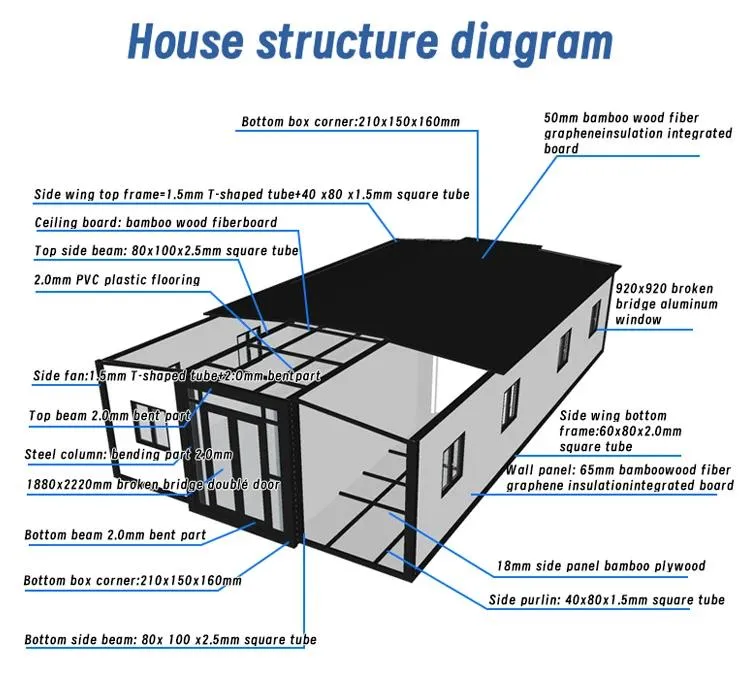

| Expandale Container House Technical Parameters | ||
|---|---|---|
| Framework | Main beam | Galvanized square tube 80*100*2.5MM Q235 |
| Integrated column head | Galvanized folding piece 150*210*2.0MM Q235 | |
| Sub-frame | Galvanized square tube 40*60*1.0MM Q235 | |
| Hinges | Galvanized thickened hinge Q235 | |
| Frame color | Painting process White frame | |
| Floor | Middle floor | 18mm glass magnesium board (no asbestos) |
| Both sides floor | 18mm glass magnesium board (no asbestos) | |
| Floor leather | Floor leather Palm wood | |
| Insulated Wall | Wall panel | 70mm sandwich board, color roll double-sided 0.25 (wood grain) Standard material: EPS |
| Partition | 50mm sandwich panel, color steel plate base plate double-sided 0.25 | |
| Main/Side top | 50mm sandwich panel, color steel plate base plate double-sided 0.25 | |
| Electrical | Parameters | Standard AU wires; 6² incoming, 4² AC sockets, 2.5² sockets, 1.5² lighting; 2P63A main switch; 6 LED lights. |

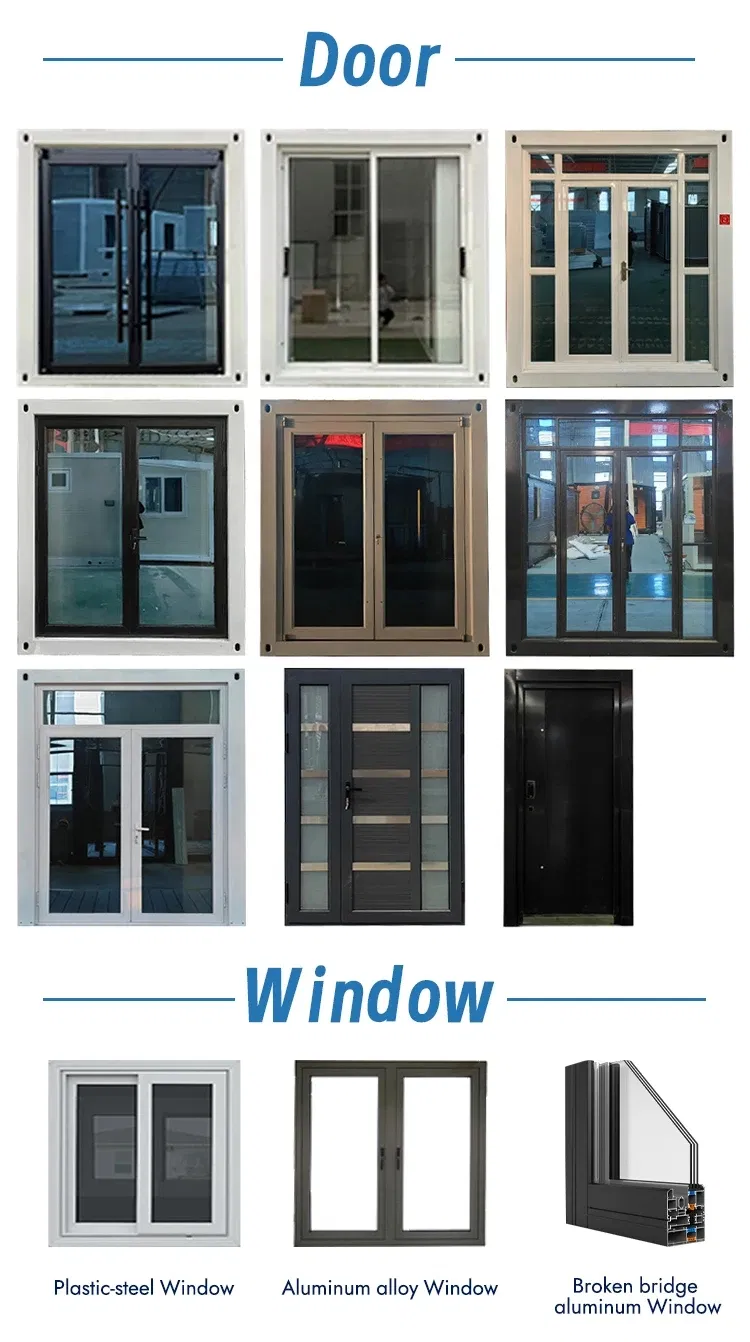

| Doors & Windows | Entrance door | Thermally-insulated aluminum (double-glazed tempered glass) W1890*H2230 |
| Window | Aluminum alloy (double glass, tempered) sliding window with diamond mesh 920*920 (6 pieces) | |

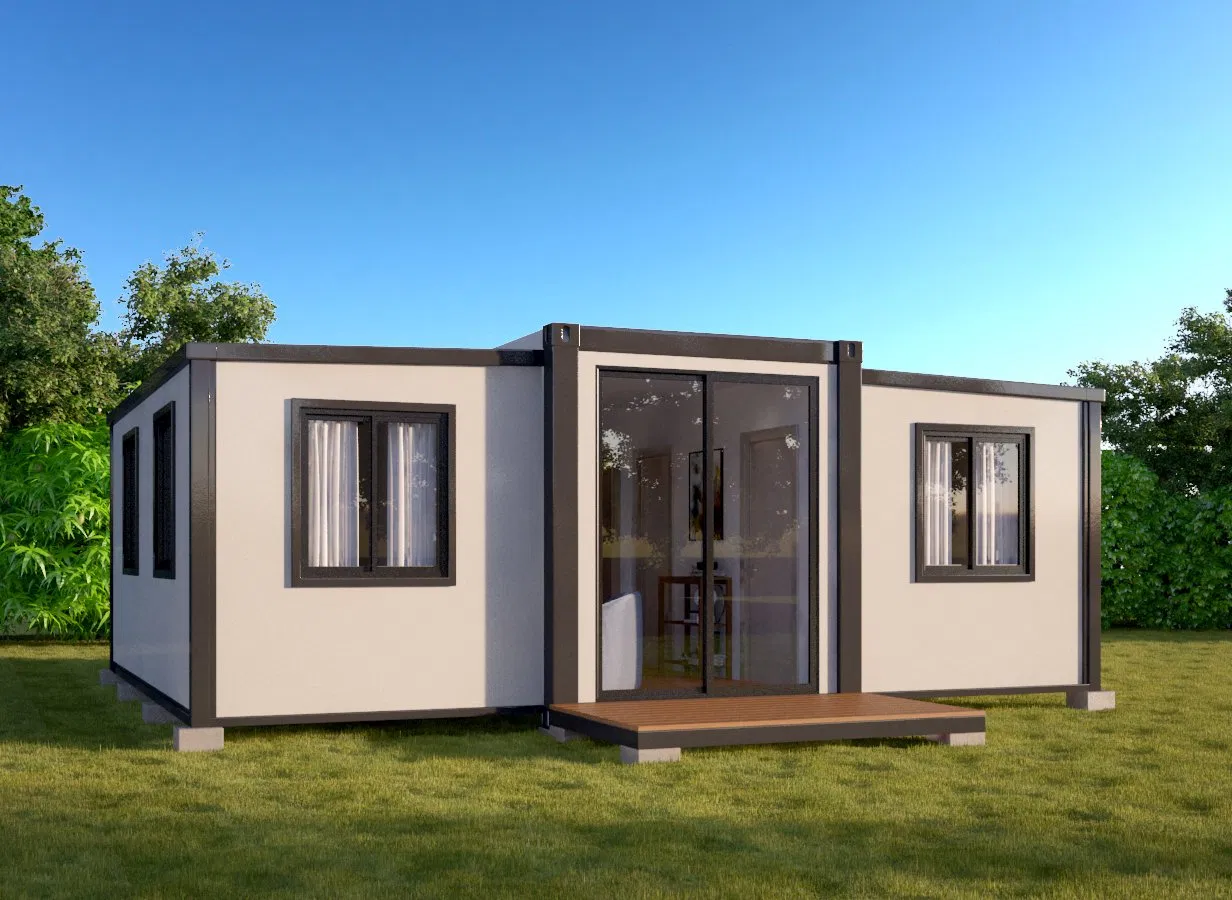

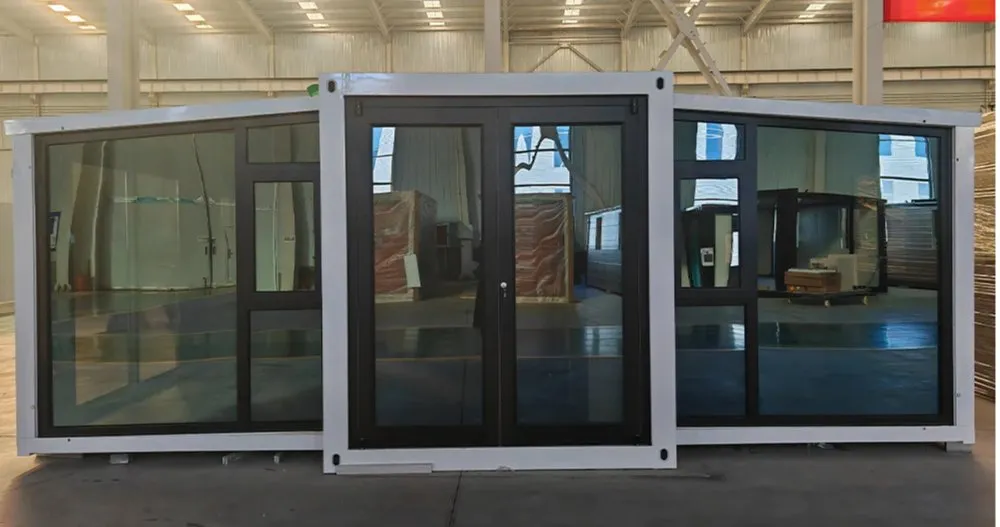

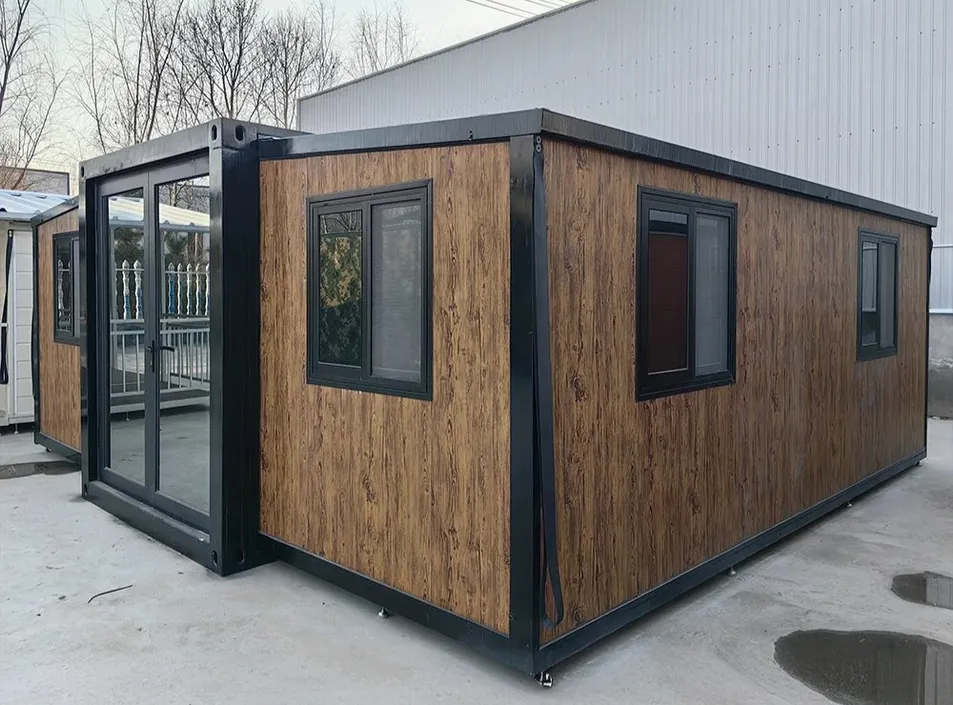

The double-wing expandable house serves as an ideal exhibition space for product launches and events. This novel method attracts attention and adds a professional touch to commercial activities.

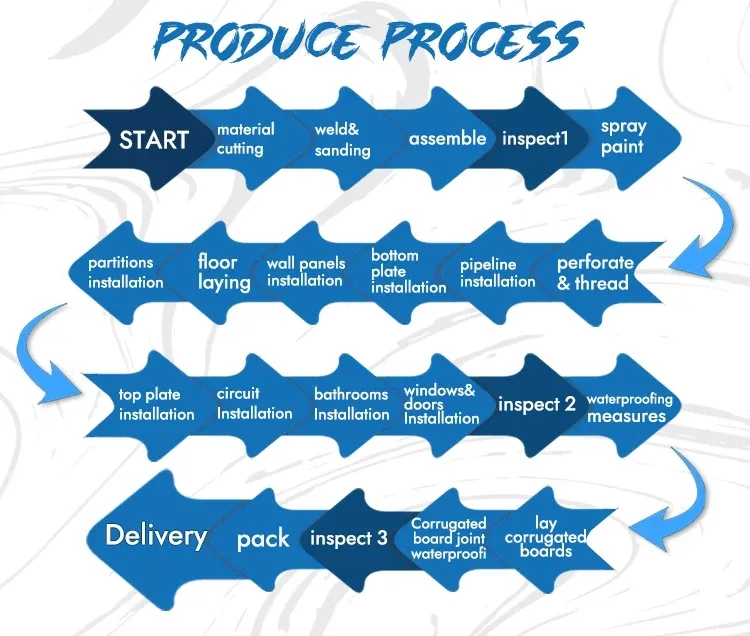

Standardized flat-base structure fits container transport tools, significantly reducing logistics costs. Factory prefabrication allows quick on-site assembly, minimizing labor and time.
Crafted from recyclable steel and sustainable panels, these materials offer excellent durability while remaining gentle on the environment, aligning with green living standards.
Simplified interfaces for horizontal/vertical expansion enable rapid creation of large-area spaces. Ideal for residences, stores, pop-up exhibitions, and emergency facilities.

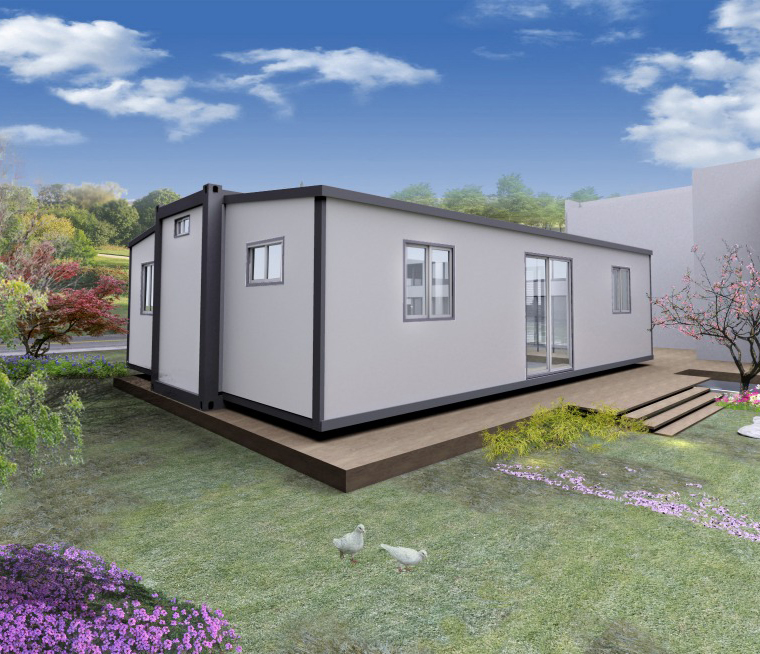

Perfect for tourism and vacation settings. Its unique appearance and flexible design allow it to be quickly deployed in picturesque locations as a cozy, distinctive residence.
