Product Description

Basic Information

Model NO.

HYRO 1000L to 50m3/hr

Capacity

10m3 to 50m3/Hr

Source Water

Seawater

Incoming Water

Salt Water

Untreated Water

for Drinking or Irrigation

Flow Rate

Customizable

HS Code

842121

Origin

Guangdong, China

Packaging & Delivery

Package Size

400.00cm * 100.00cm * 165.00cm

Gross Weight

500.000kg

Product Description

Containerised Seawater Desalination Moveable RO Unit

Professional assembly and production for over 13 years with CE, SGS, and ISO certification.
Familiar with different water quality processes across North America, South America, Middle East, and Southeast Asia.
Capable of treating surface and sub-surface water (River, pond, sea, lake) with TDS up to 50,000 ppm.

Salted water composition varies significantly based on geographic location and water temperature. Below is a standard comparison of source water salinity:

Source Water (Salinity)	Typical TDS Range
Tap water	100ppm to 700ppm
Brackish water	700ppm to 10,000ppm
Northern Sea (near estuaries)	10,000ppm to 21,000ppm
Atlantic Ocean	35,000ppm
Mediterranean Sea	38,000ppm
Arabian Sea	45,000ppm
Red Sea	41,000ppm
Dead Sea	300,000ppm

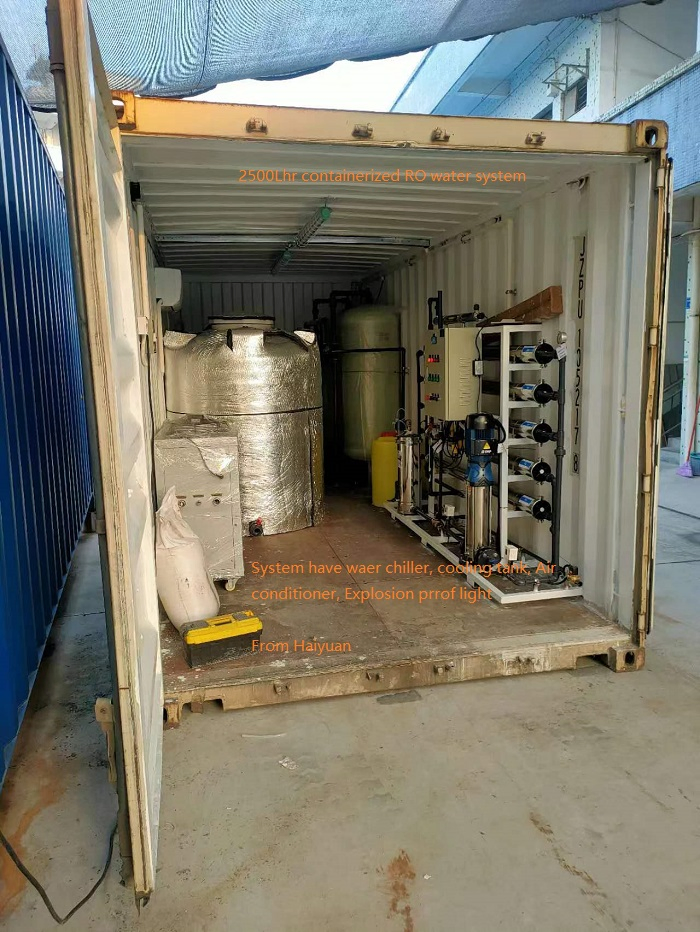

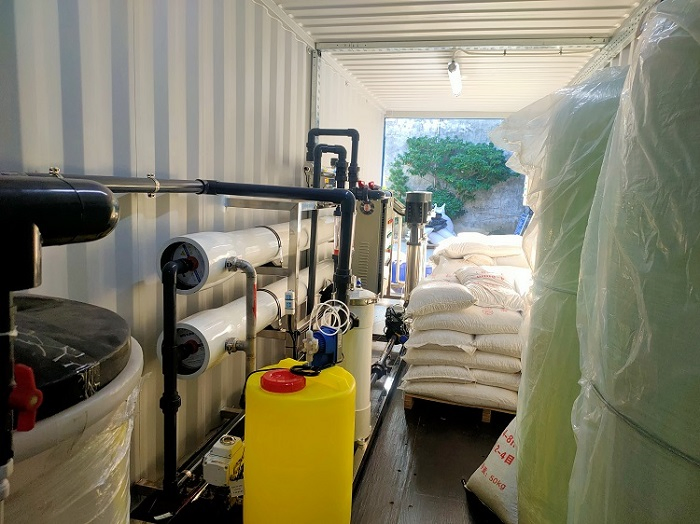

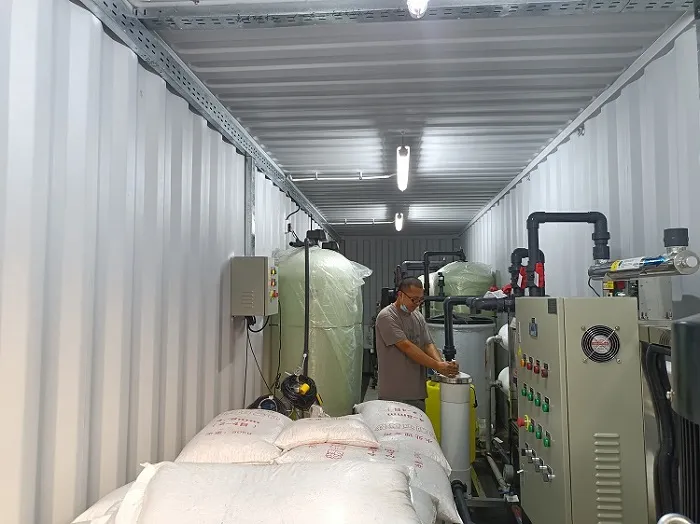

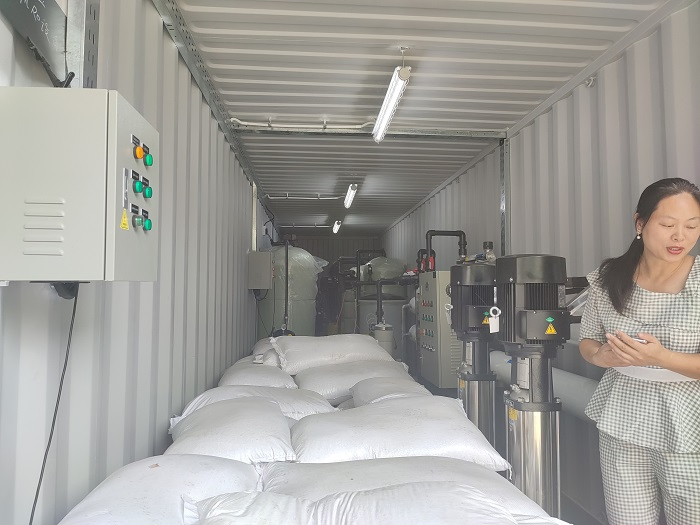

Containerized RO Plant Features

Plug and Play: Desalination plant in insulated 20 or 40 ft containers. Includes all piping, fittings, and control systems pre-connected.
Full Integration: Mounted with side doors, inlet/outlet terminal points, and floor drainage.
Climate Control: Air conditioning/cooling available on request for extreme environments.

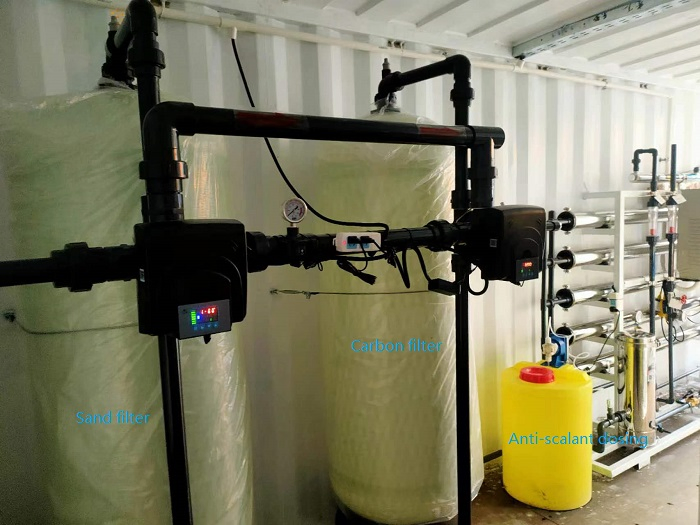

Custom Pre-treatment: Solutions designed based on specific source water analysis.

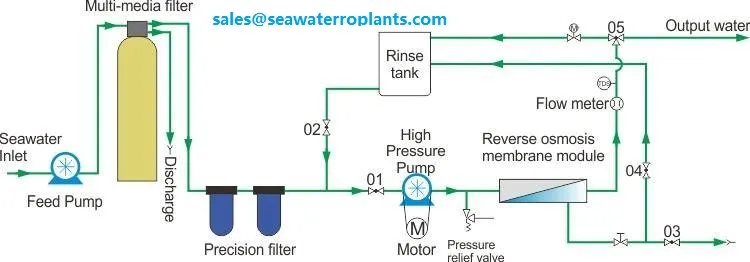

System Process & Technical Data

20GP Container Capacity Parameters

Model	Membrane Qty	Capacity m³/D	Weight (kg)	Pressure (Mpa)	Power
HYSW-20GP-20	4040×8	20	2800	4.0-6.5	220V-440V / 50Hz-60Hz
HYSW-20GP-26	4040×10	26	2860	4.0-6.5
HYSW-20GP-30	4040×12	30	2920	4.0-6.5
HYSW-20GP-40	4040×16	40	3030	4.0-6.5

40HGP Container Capacity Parameters

Model	Membrane Qty	Capacity m³/D	Weight (kg)	Pressure (Mpa)	Power
HYSW-40HGP-60	8040×6	60	4900	4.0-6.5	380V-440V / 50Hz-60Hz
HYSW-40HGP-100	8040×10	100	5150	4.0-6.5
HYSW-40HGP-120	8040×12	120	5230	4.0-6.5
HYSW-40HGP-150	8040×16	150	5530	4.0-6.5

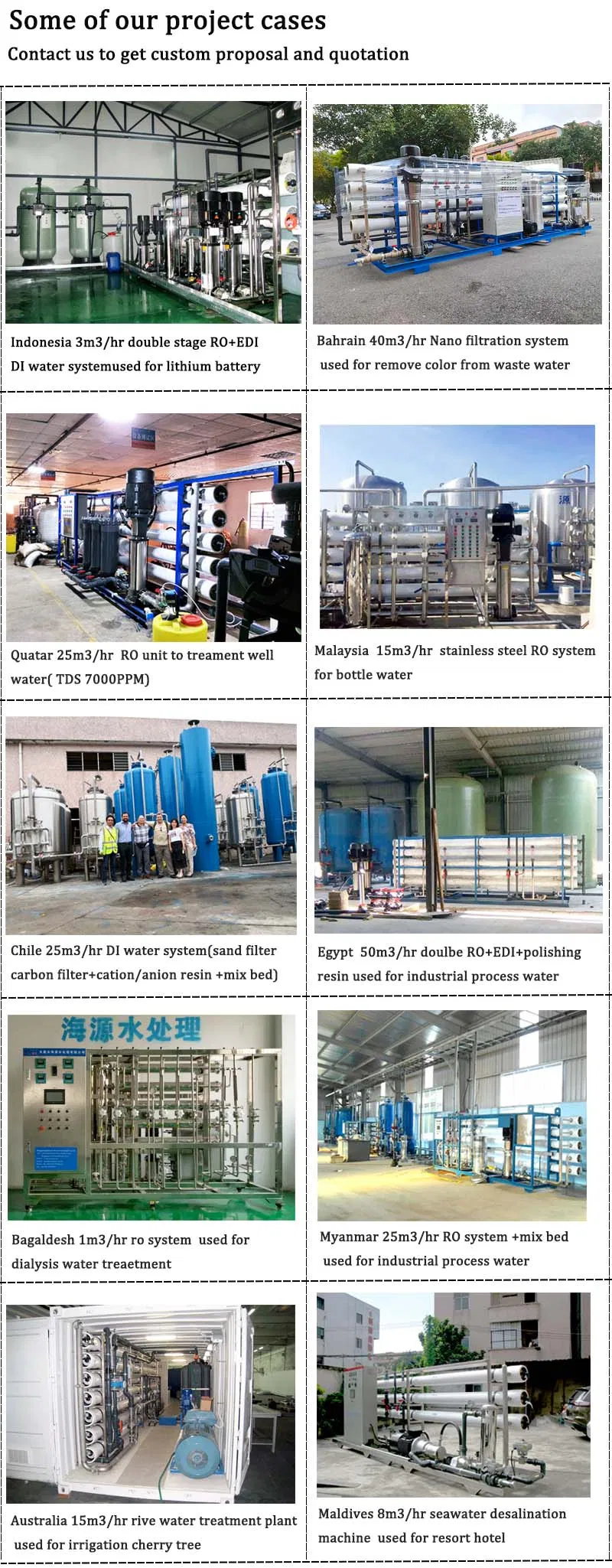

Certifications & Case Studies

Buying Guide

To provide the best fit for your demand, please confirm the following:

Untreated Water Source: Well water, seawater, or surface water? (Water test report recommended)
Purpose of Treated Water: Meeting city tap water standards (TDS < 500ppm) or other industrial uses?
Output Capacity: Required liters/gallons per hour?
Power Supply: 380V/50Hz/3Ph or other specifications?

Frequently Asked Questions

What is the advantage of a containerized desalination system?

Containerized systems offer a "plug and play" solution that is easy to transport, requires minimal onsite installation, and protects sensitive components from harsh environmental conditions.

Can the RO plant handle high salinity water like the Red Sea?

Yes, our systems are designed to handle various salinity levels, including high-salinity sources like the Arabian Sea (45,000ppm) and Red Sea (41,000ppm).

What size containers are used for these plants?

We typically use standard 20ft and 40ft (including 40HGP) containers depending on the required capacity and complexity of the pre-treatment system.

Is pre-treatment included in the system?

Yes, we provide all necessary pre-treatment components required before the SWRO process, tailored to the specific analysis of your source water.

What certifications do your desalination units have?

Our manufacturing processes and units are compliant with ISO9001 quality standards and hold CE and SGS certifications.

Can the power supply be customized?

Absolutely. While standard configurations are often 380V/50Hz, we can customize the control cabinet to match local power requirements such as 220V or 440V at 60Hz.
