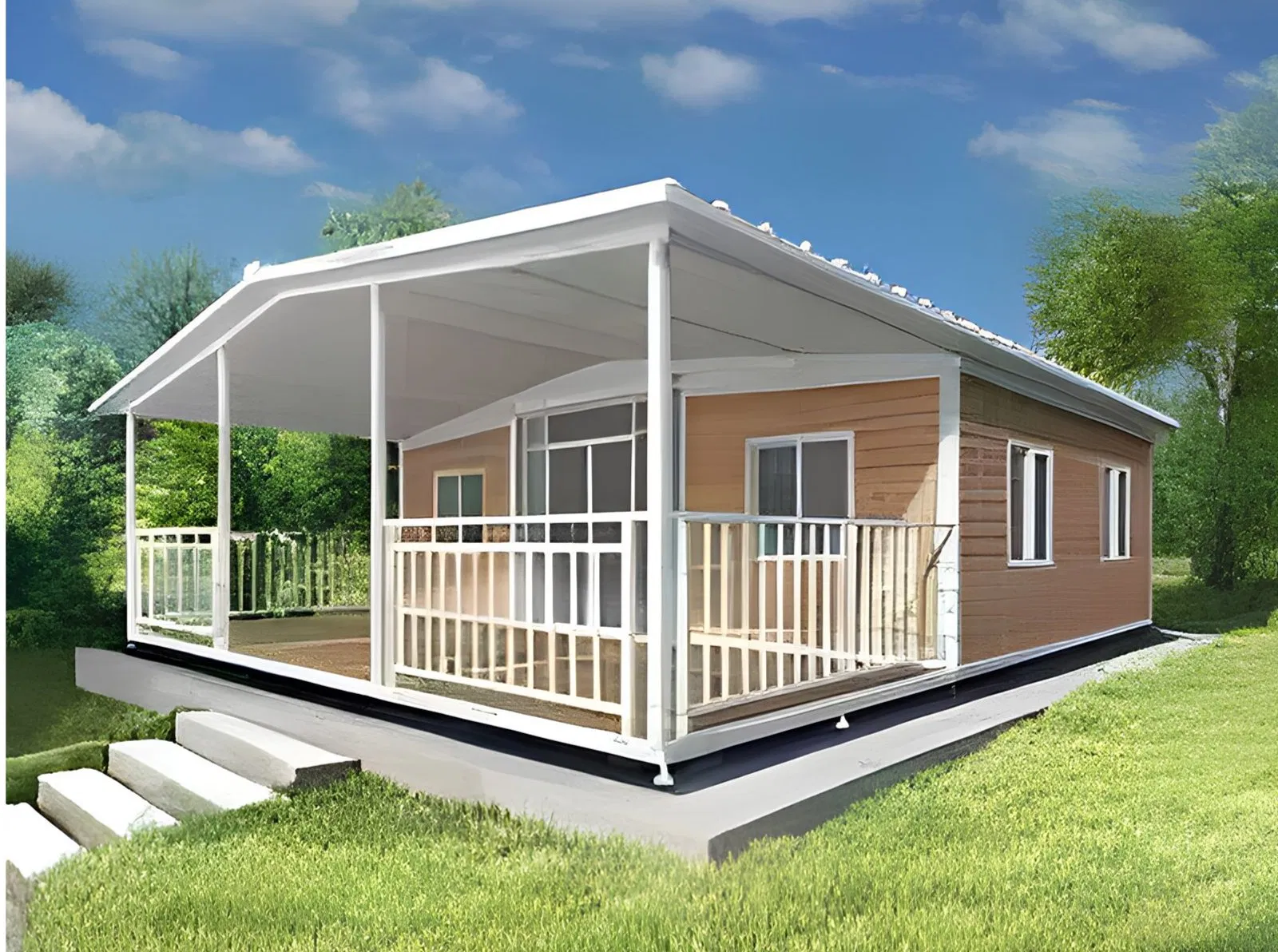

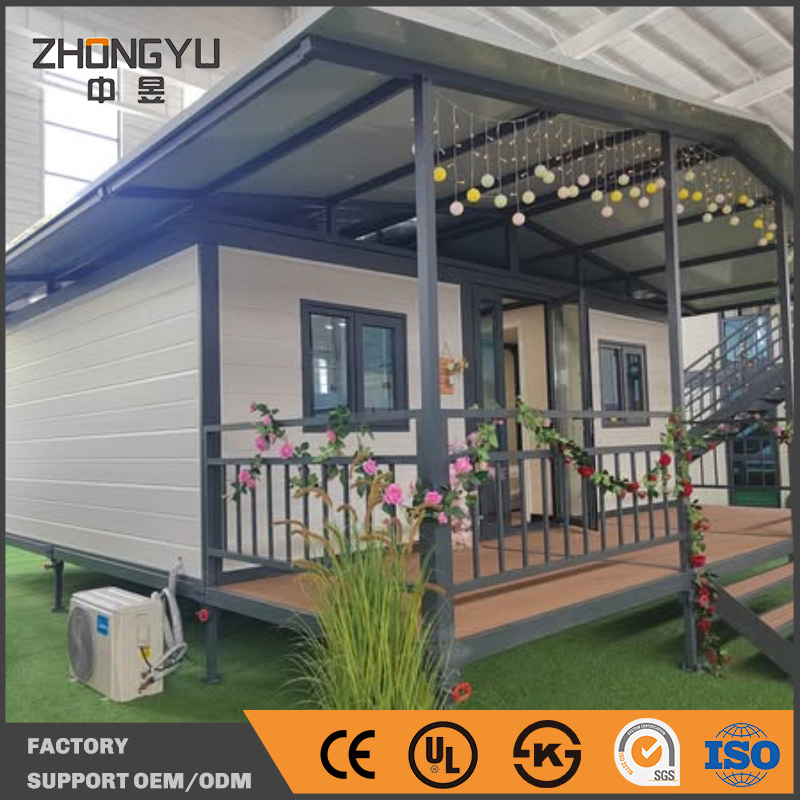

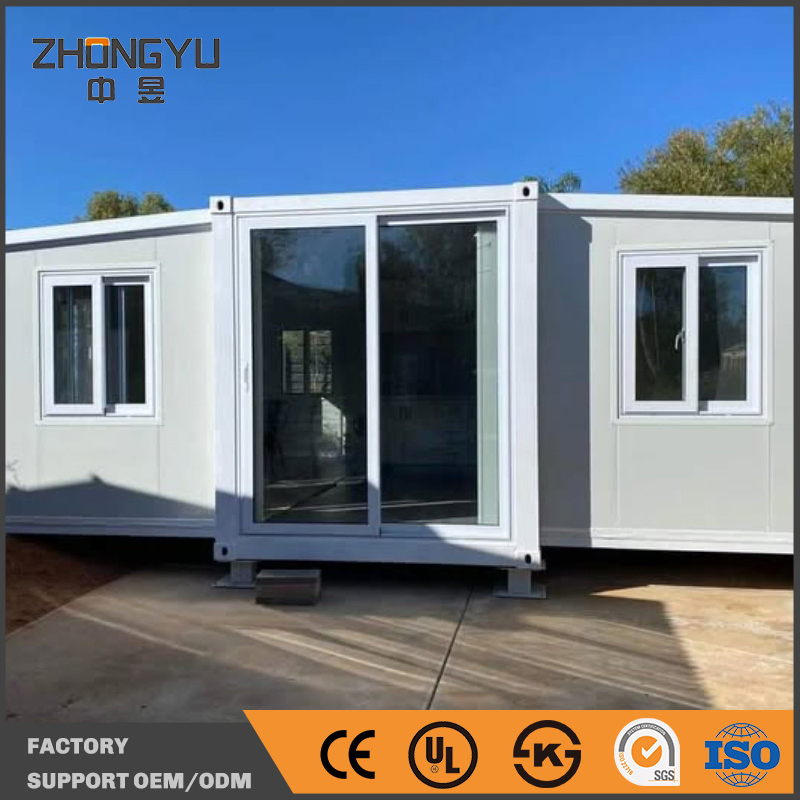

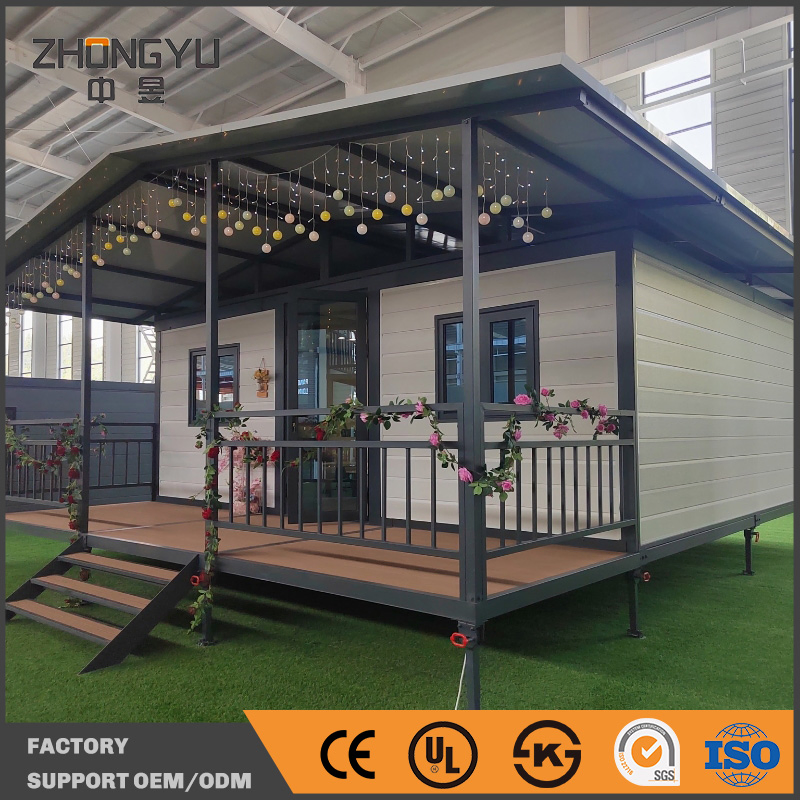

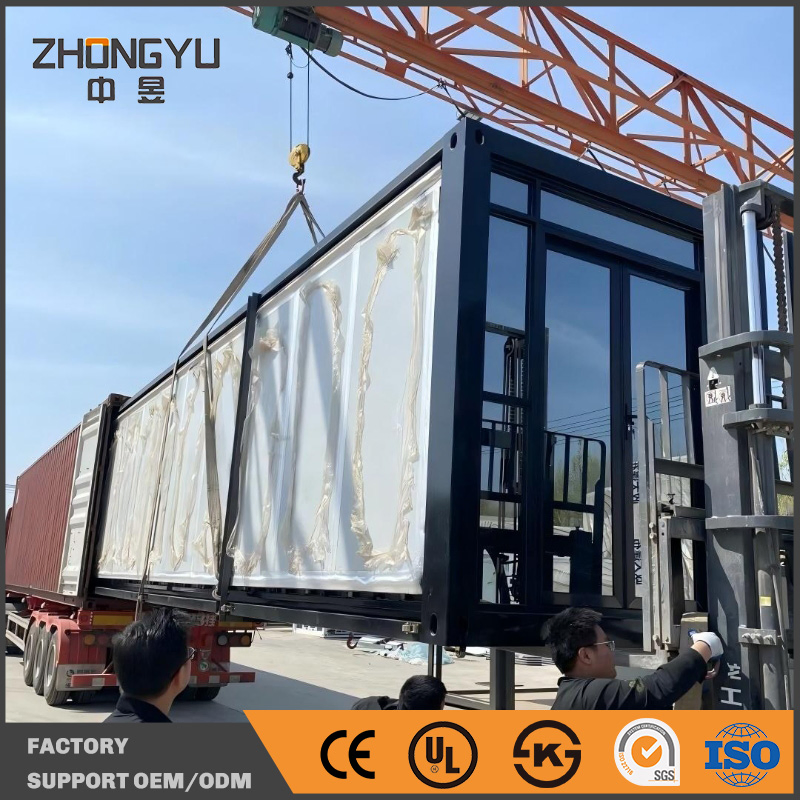

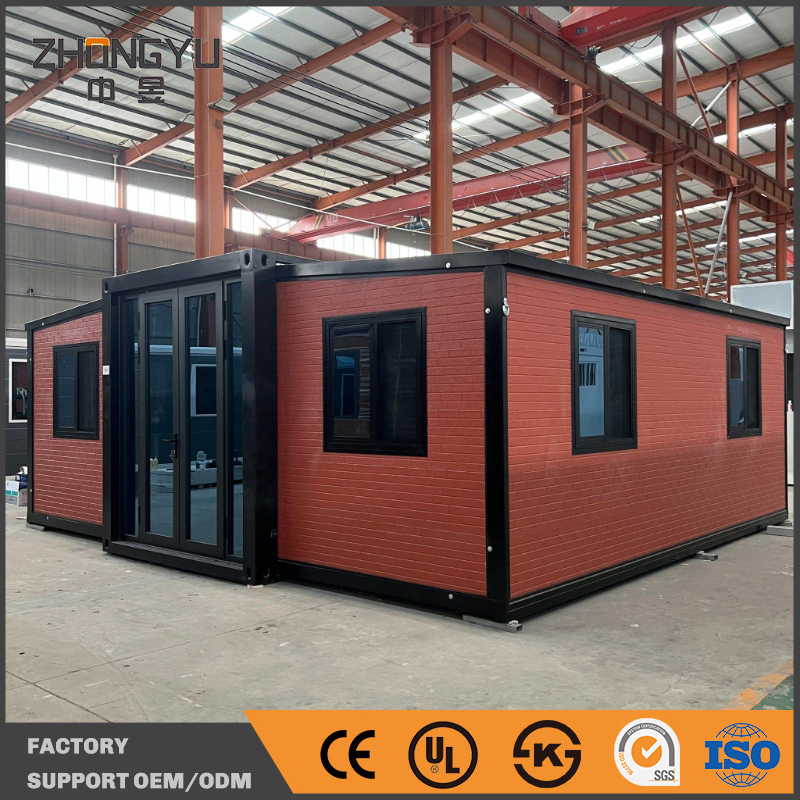

Expandable Container House / Modular Prefab Capsule House
Our expandable container house is available in 15ft, 20ft, 30ft, and 40ft sizes. It is easy to install and convenient to move, featuring a strong structure and long service life. This house is widely used for residential living, offices, apartments, and dormitories.

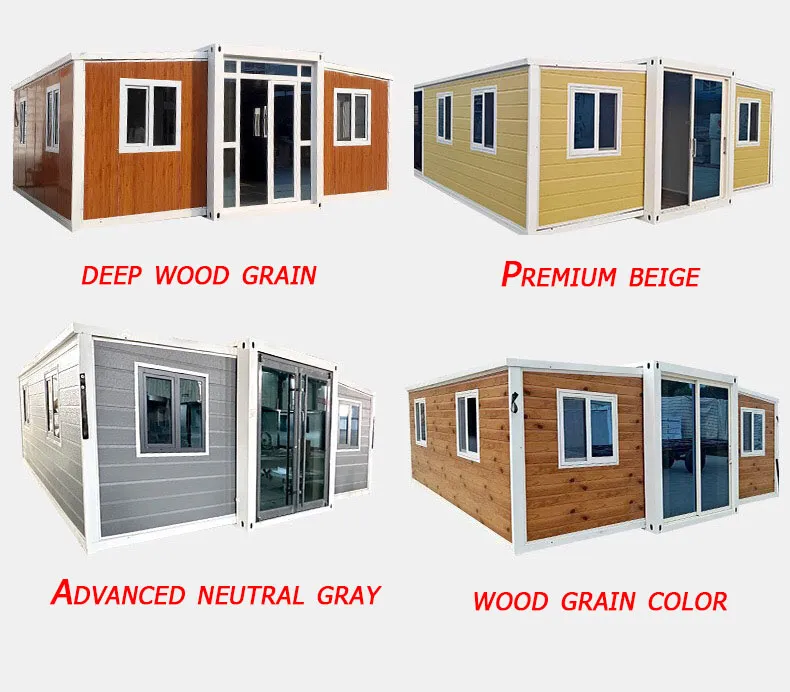

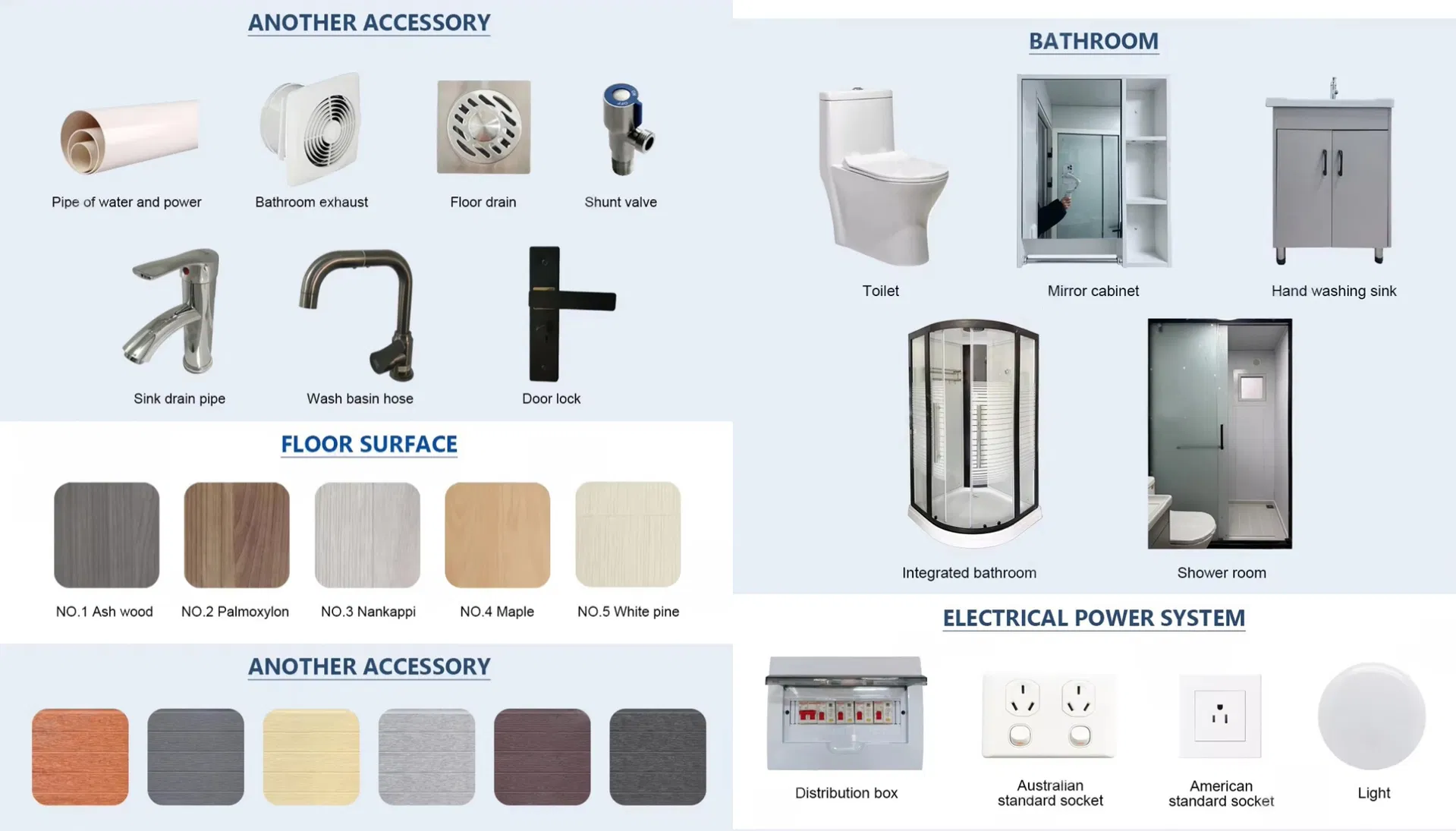

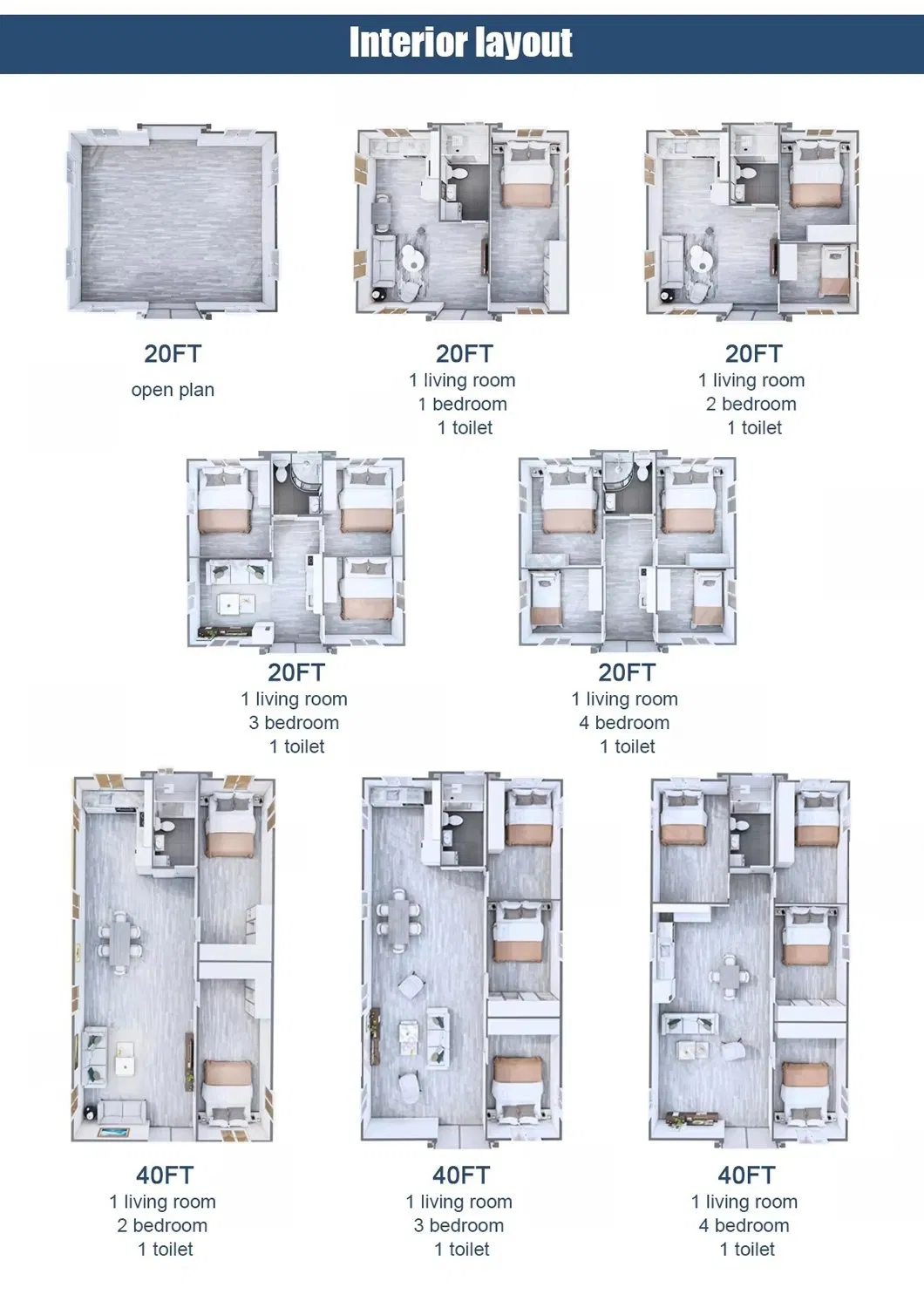

The interior space can be configured as bedrooms, living rooms, kitchens, and bathrooms. It represents a modern capsule house type, combining both functionality and aesthetic appeal. We offer various external wall panels with different colors, materials, and patterns to suit local markets.
Designed to provide a secure and long-lasting living or working space with a sturdy steel frame.
Ideal for low-cost housing, mining camps, and emergency rescue units using high-quality sandwich panels.

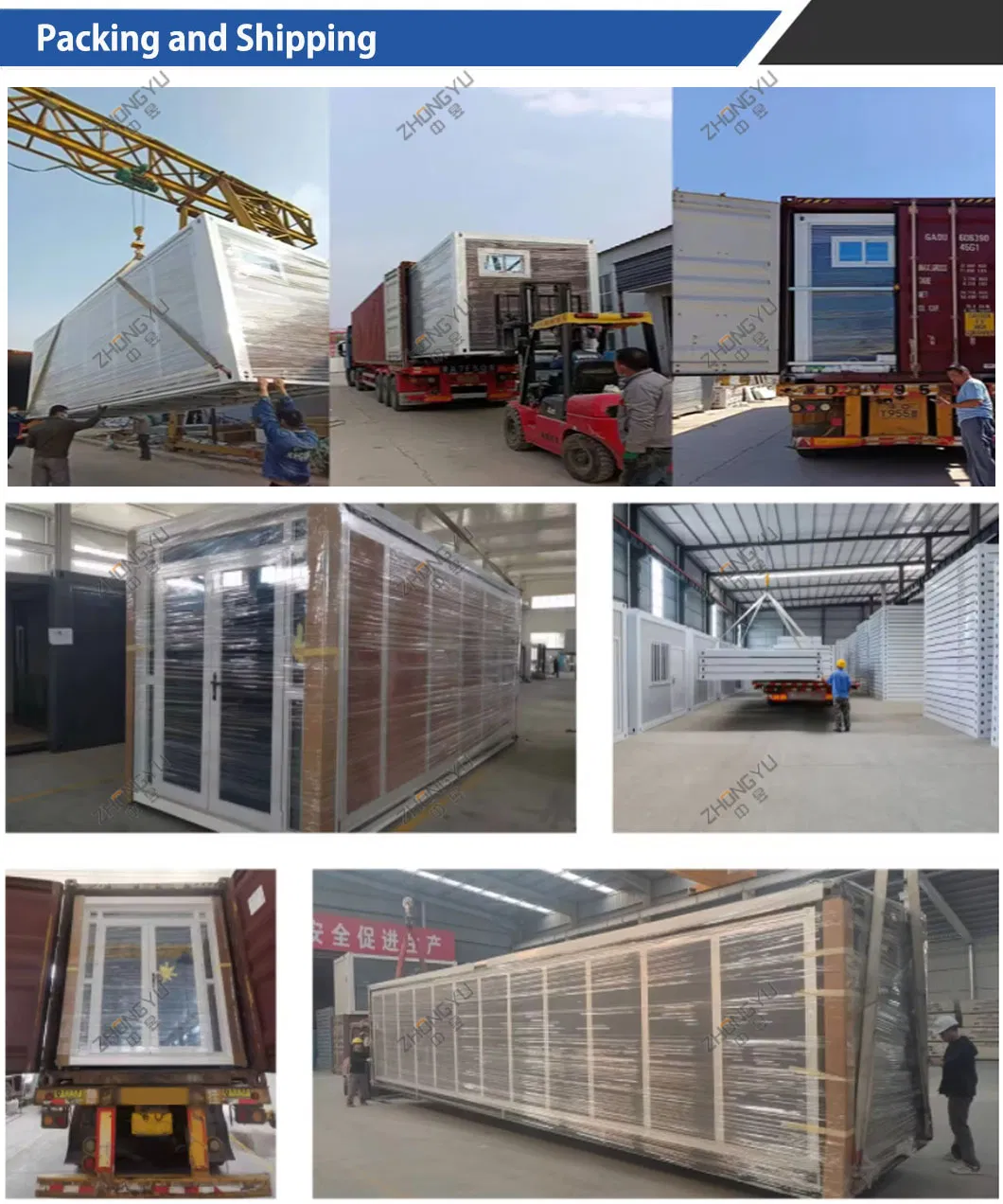

Flat pack design allows for rapid assembly and disassembly, perfect for users requiring frequent relocation.
| Component | Specifications | |
|---|---|---|
| Dimensions | Outer size | 5900*2200*2480mm |
| Expanded size | 5900*6300*2480mm | |
| Performance | Insulation | Sound insulation ≥ 30dB; Fire resistance Class A |
| Resistance | Wind resistance 0.60kN/m²; Seismic Level 8 | |
| Loading | Ground live load 2.0kN/m²; Roof live load 0.9kN/m² | |

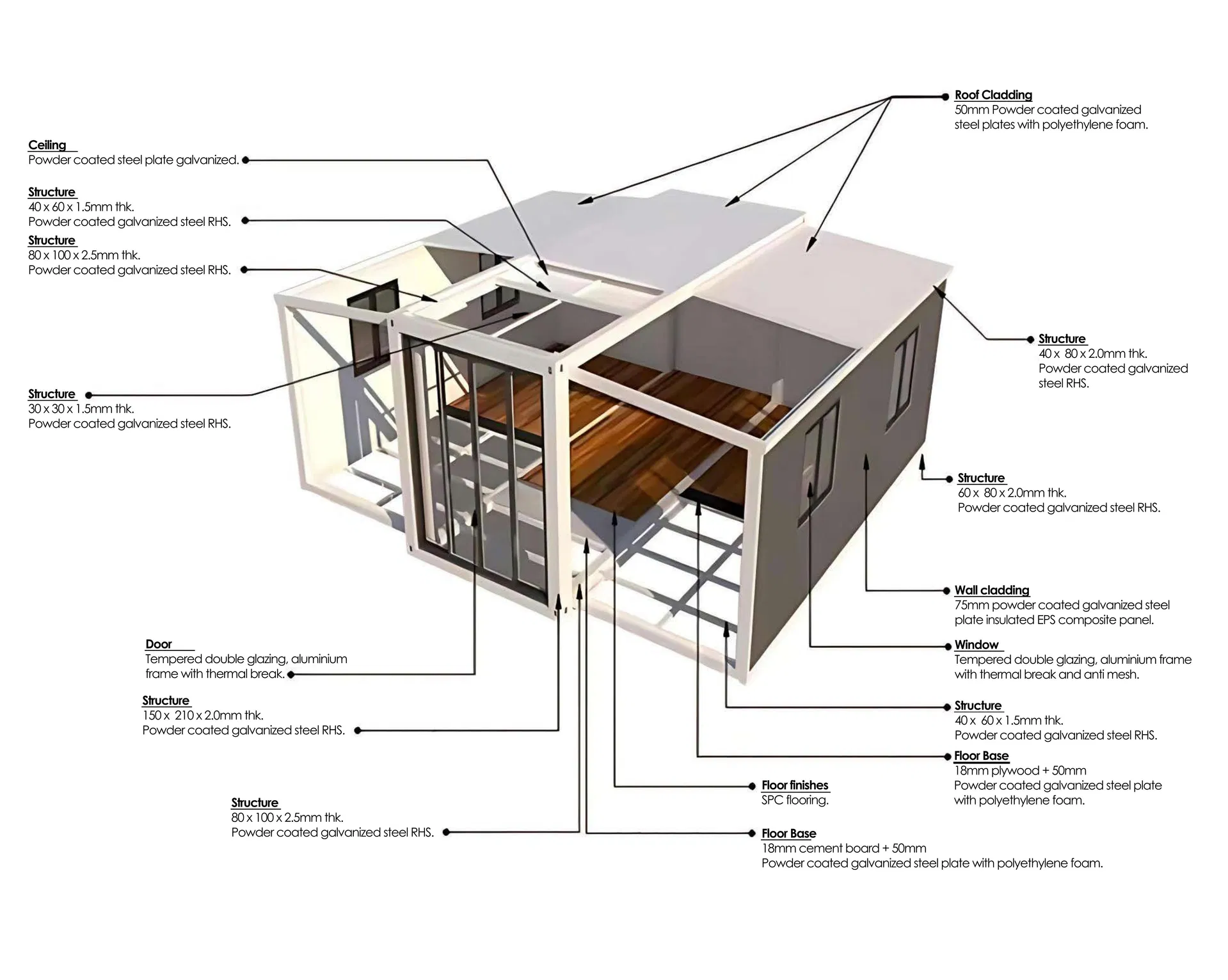

| Frame | Main Structure | Galvanized square steel (80*100mm), 2.5mm thickness; Electrostatic spray paint |
| Walls | Panels | 50mm EPS composite plate; 0.3mm color steel; Flame retardant |

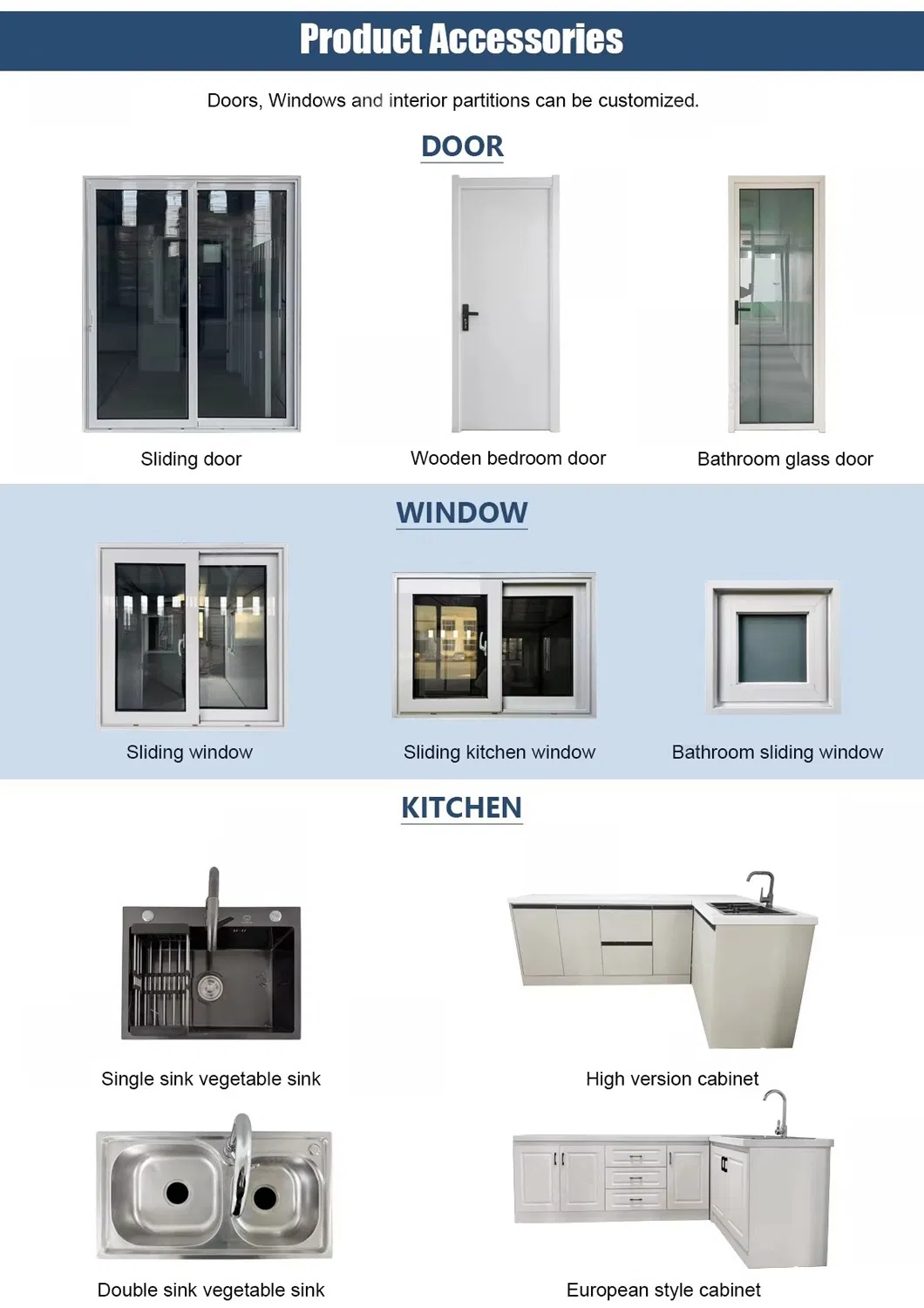

| Doors | Entrance | Double opening aluminum alloy; Tempered glass (W1900*H2280mm) |
| Windows | Exterior | Broken bridge aluminum; Multiple sizes for ventilation and light |
Our production facilities cover more than 100,000 m², supported by over 500 employees. We maintain a complete supply chain and professional logistics system to provide integrated housing solutions. The construction systems are fully industrialized, ensuring high-performance and high-value modular buildings.
