Stinson Modular Homes
1 / 5

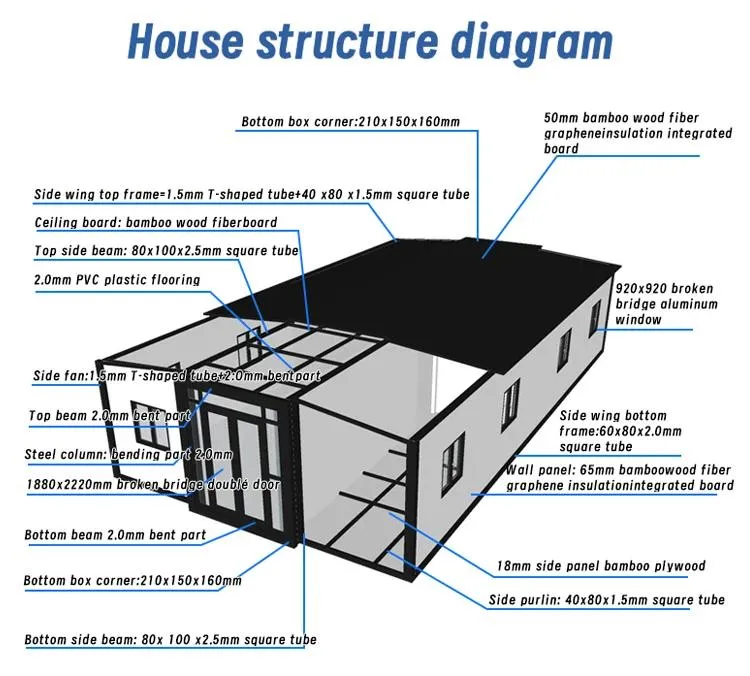

| Component | Specifications | |
|---|---|---|
| Framework | Main beam | Galvanized square tube 80*100*2.5MM Q235 |
| Column head | Galvanized folding piece 150*210*2.0MM Q235 | |
| Sub-frame | Galvanized square tube 40*60*1.0MM Q235 | |
| Hinges | Galvanized thickened hinge Q235 | |
| Floor | Board Material | 18mm glass magnesium board (asbestos-free) |
| Finish | Floor leather Palm wood | |

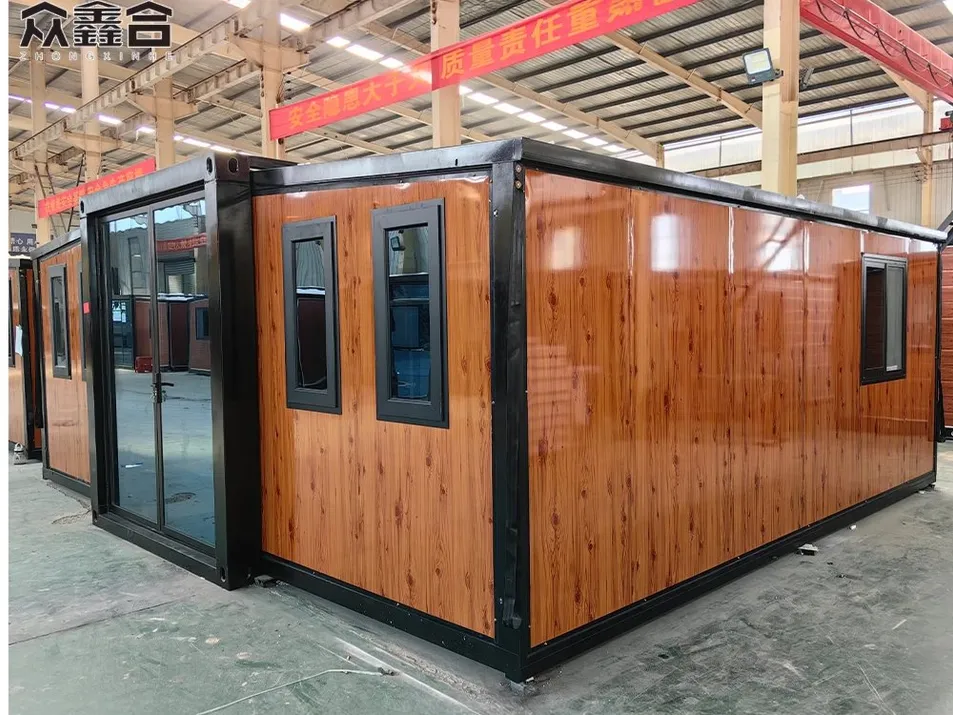

| Wall & Roof | Wall panel | 70mm sandwich board, double-sided 0.25 color roll (EPS material) |
| Partition/Top | 50mm sandwich panel, color steel plate base plate | |
| Electrical | System | Standard Australian wires (6² incoming, 4² AC, 2.5² sockets); 6 LED ceiling lights; 2P63A main switch |

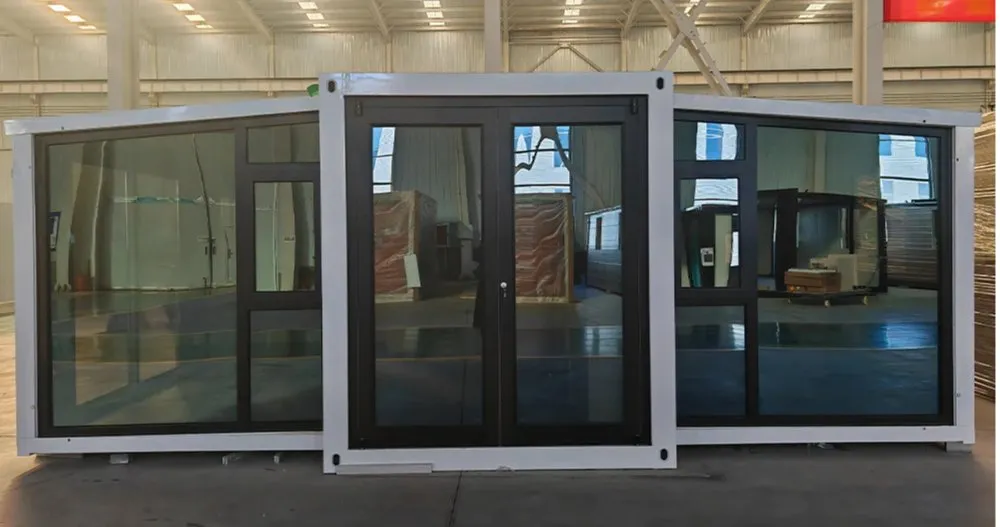

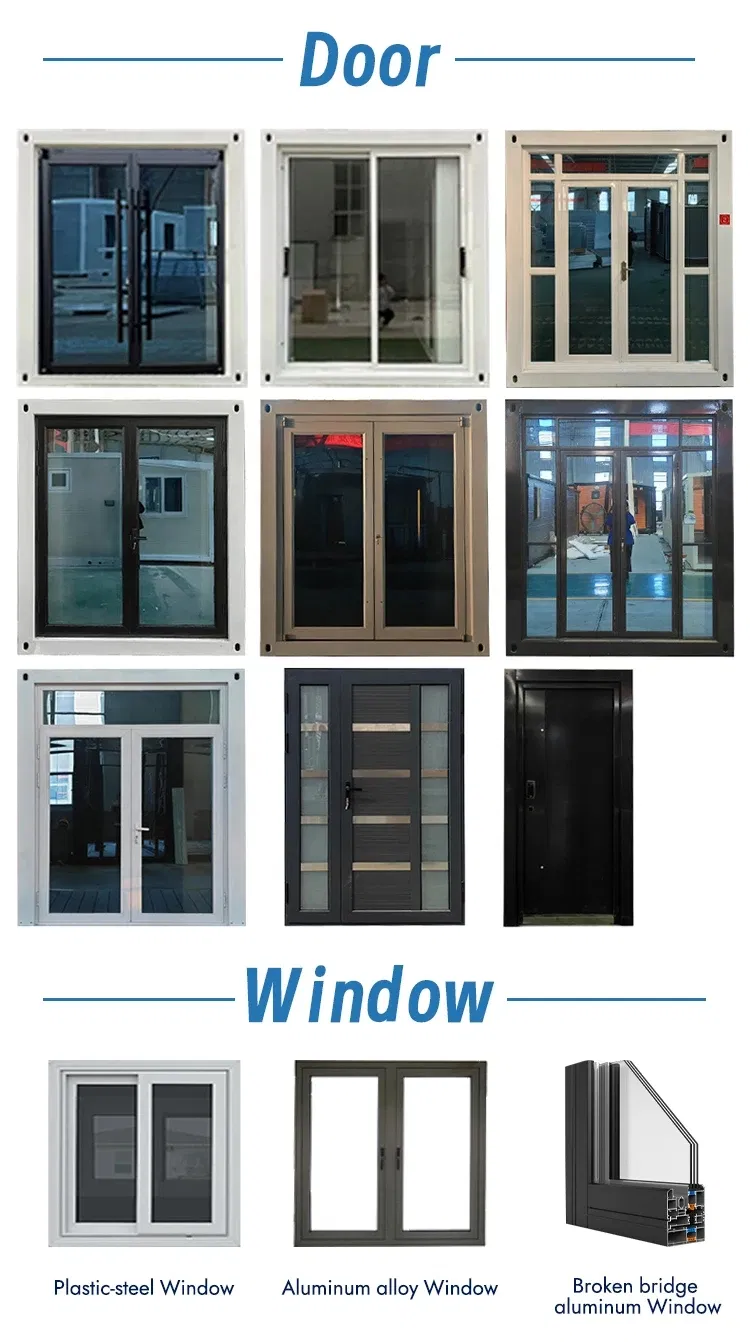

| Doors & Windows | Entrance | Thermally-insulated aluminum (double-glazed tempered glass) W1890*H2230 |
"Flat-base + flat-top" combines practicality with innovation, offering a balance of stability, functionality, and sustainability.
Perfect for product launches and exhibitions, serving as a novel space that attracts attention and adds brilliance to commercial activities.

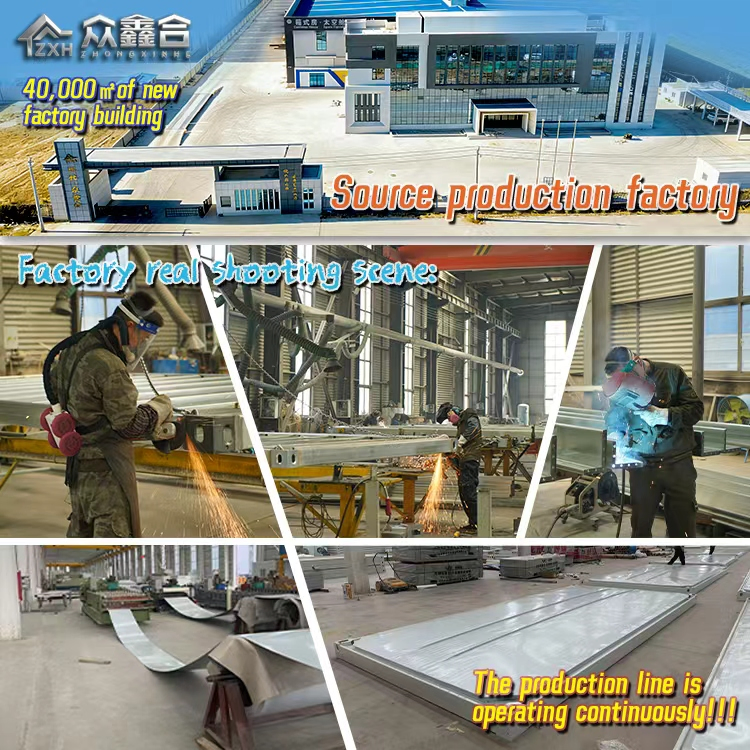

Standardized structure fits container transport, reducing logistics costs. Factory prefabrication allows for quick on-site assembly.
Crafted from recyclable steel and sustainable panels, aligning with green living pursuits and providing excellent durability.
Modular interfaces allow for horizontal/vertical expansion, enabling rapid creation of multi-story or large-area spaces.
Unique appearance and flexible design make it ideal for picturesque locations, providing a cozy and distinctive residence.
The ZXH model is earthquake resistant, easily movable, and moisture-proof. It features thermal insulation and a waterproof design, making it safe and eco-friendly for various environments.

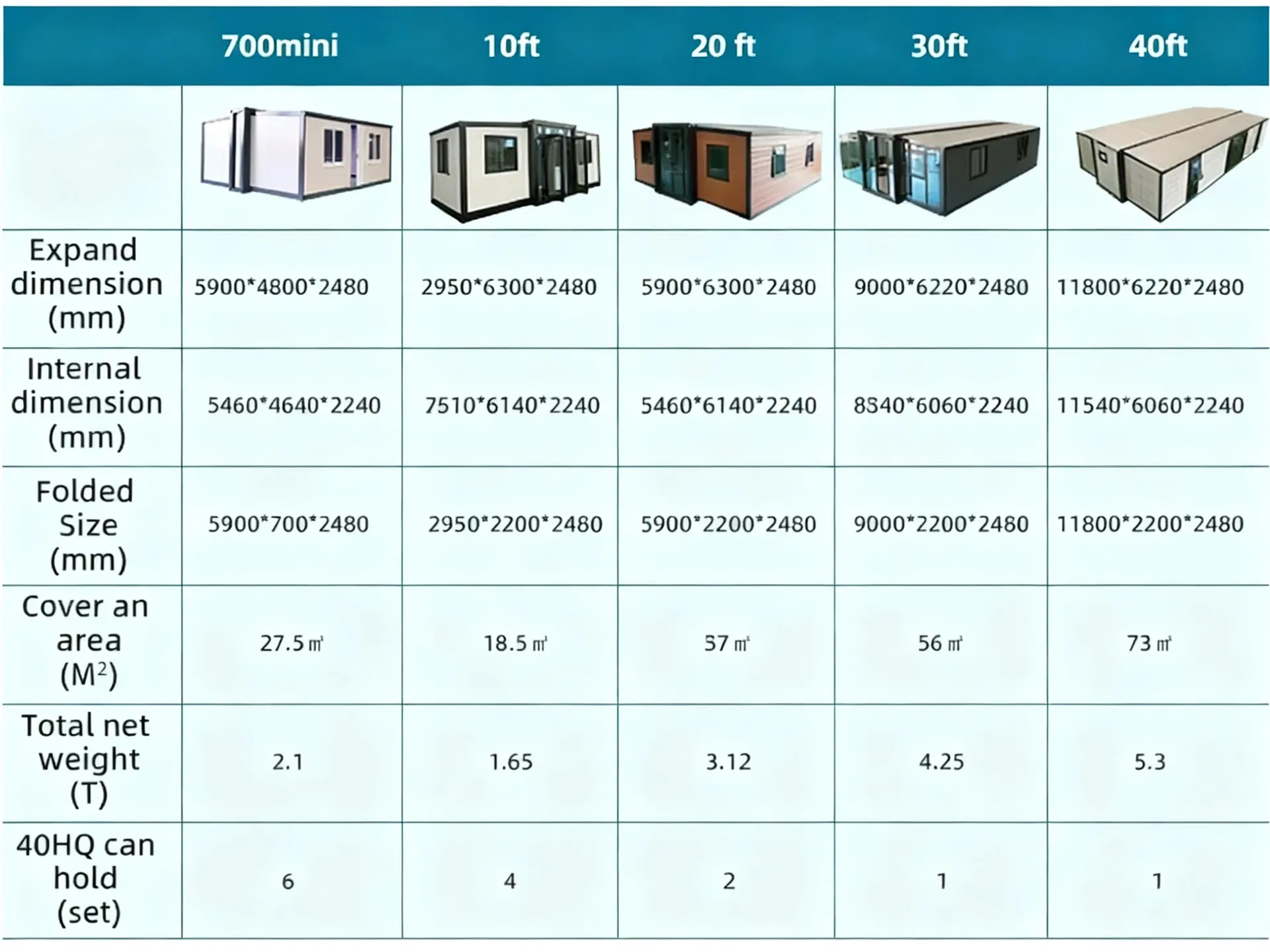

The unit is designed for efficient logistics; a standard 40HQ shipping container can hold 2 complete units. The production capacity reaches up to 500,000 pieces per month.
Yes, while standard Australian wires and sockets are provided, circuits and socket standards can be customized to meet the specific certification requirements of different countries.
The walls utilize a 70mm sandwich board with a double-sided color roll. The standard insulation material is EPS (Expanded Polystyrene), providing excellent thermal performance.
Absolutely. The floor is constructed from 18mm glass magnesium board, which is completely asbestos-free, and finished with a durable palm wood floor leather.
They are highly versatile and ideal for commercial exhibitions, tourism/vacation residences, pop-up stores, emergency facilities, and portable office units.
