1. Modular and Standardized Design: Uses custom modular units as building blocks. Standardized dimensions allow for individual use or free horizontal/vertical combinations.
2. Robust Structure: Q235B steel with fully welded frame. Withstands wind levels 10-12 and seismic levels 6-8. Corrosion-resistant for marine environments.

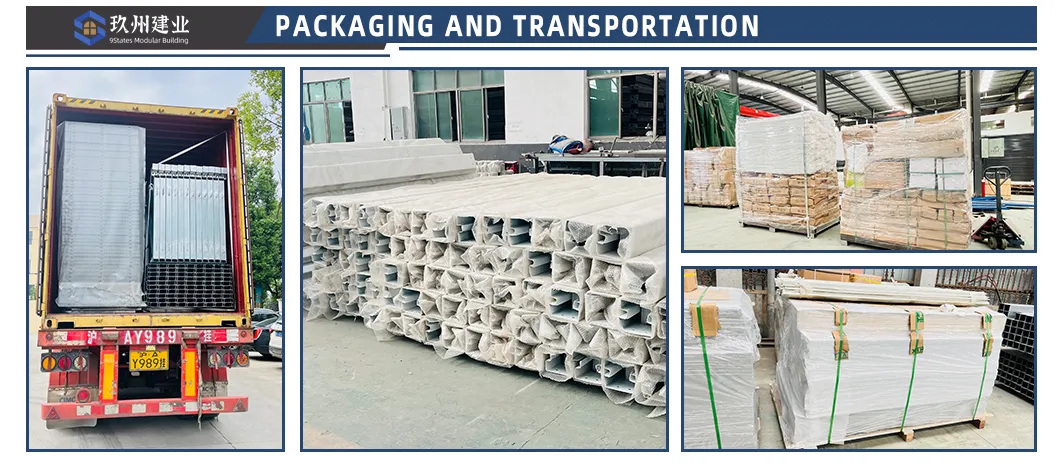

3. High Mobility: Integrated steel unit transportable by forklift or trailer without disassembly.

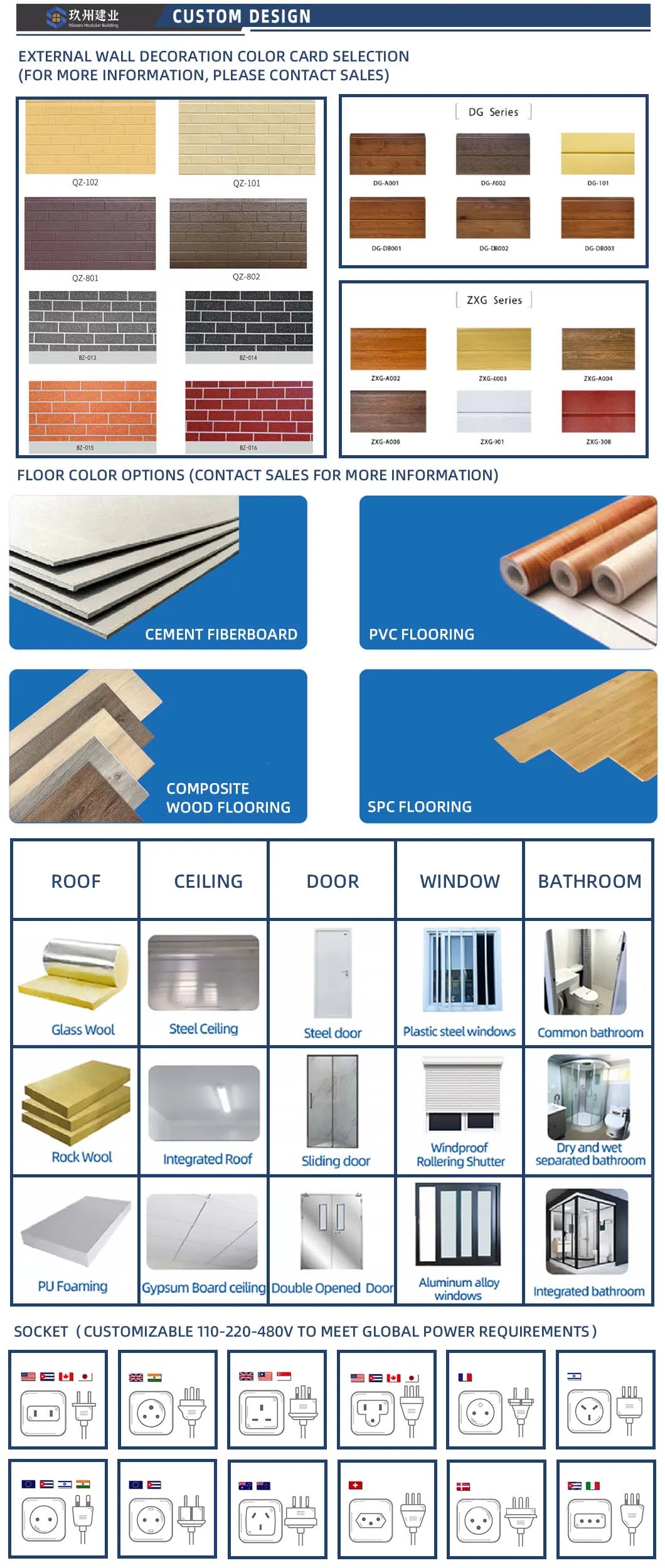

4. Customization: Modifiable interiors including partitions, plumbing, electrical, and thermal insulation (rock wool/polyurethane).

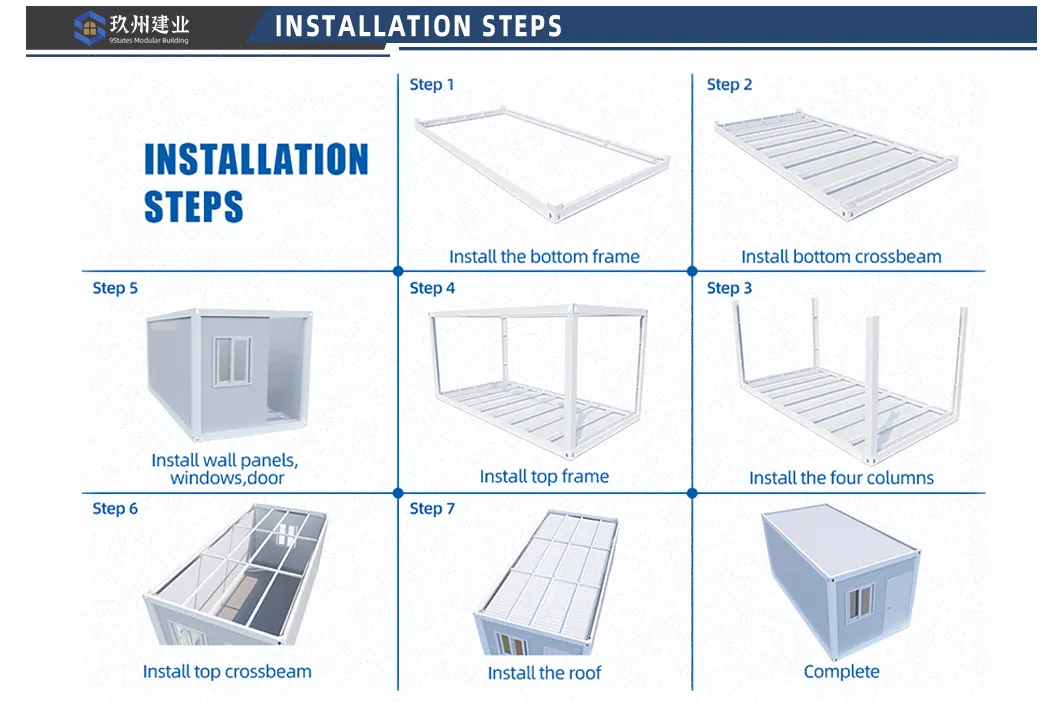

5. Short Construction: Factory prefabrication. On-site installation can be completed in hours, saving 70% time compared to traditional methods.
1. Residential: Complete living systems with kitchen, bathroom, and climate control interfaces.
2. Office: Open-plan or partitioned designs with network and power outlets for co-working or site offices.
3. Commercial: Adaptable for shops, cafes, or ticket booths with fold-down display panels.
4. Public Support: Ideal for guard booths, sanitation rooms, and service stations.

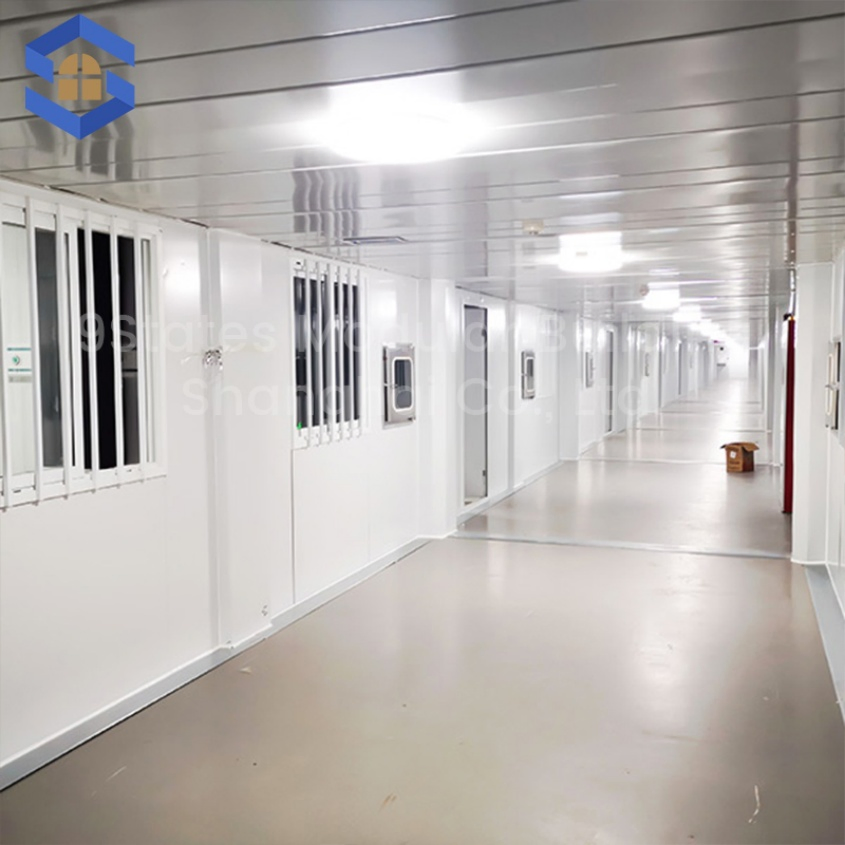

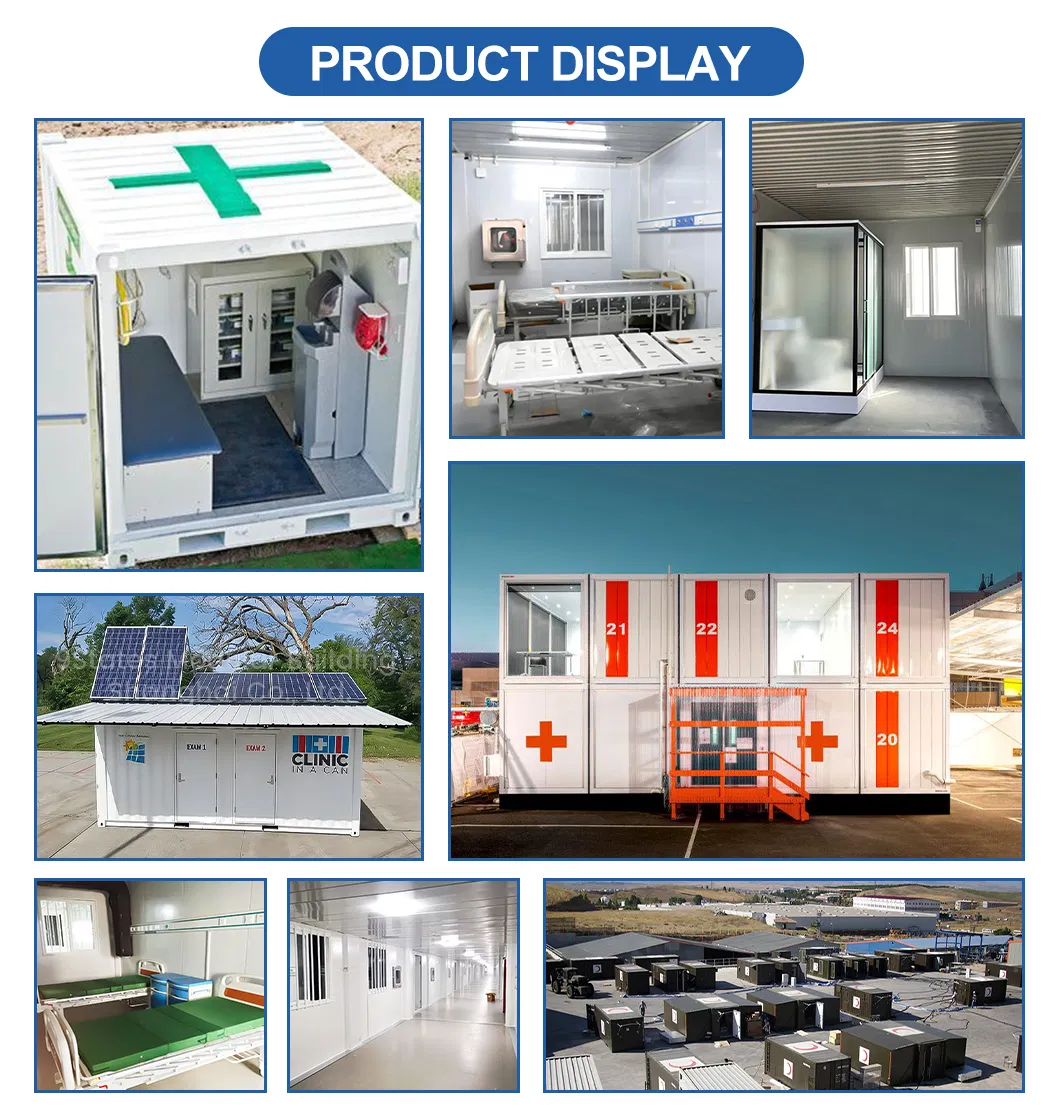

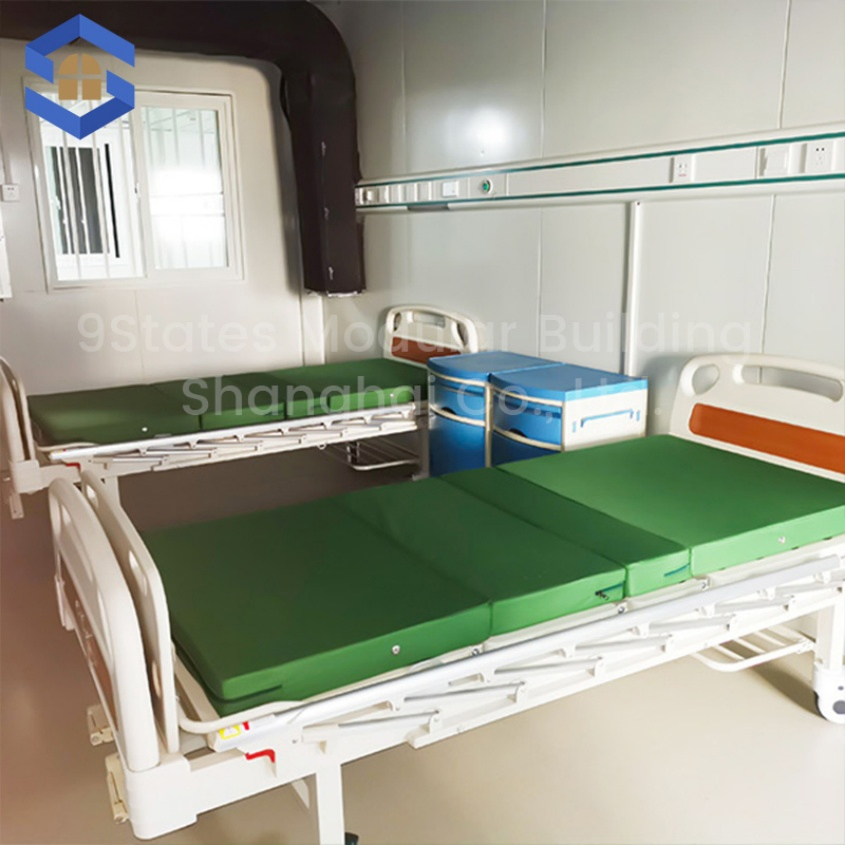

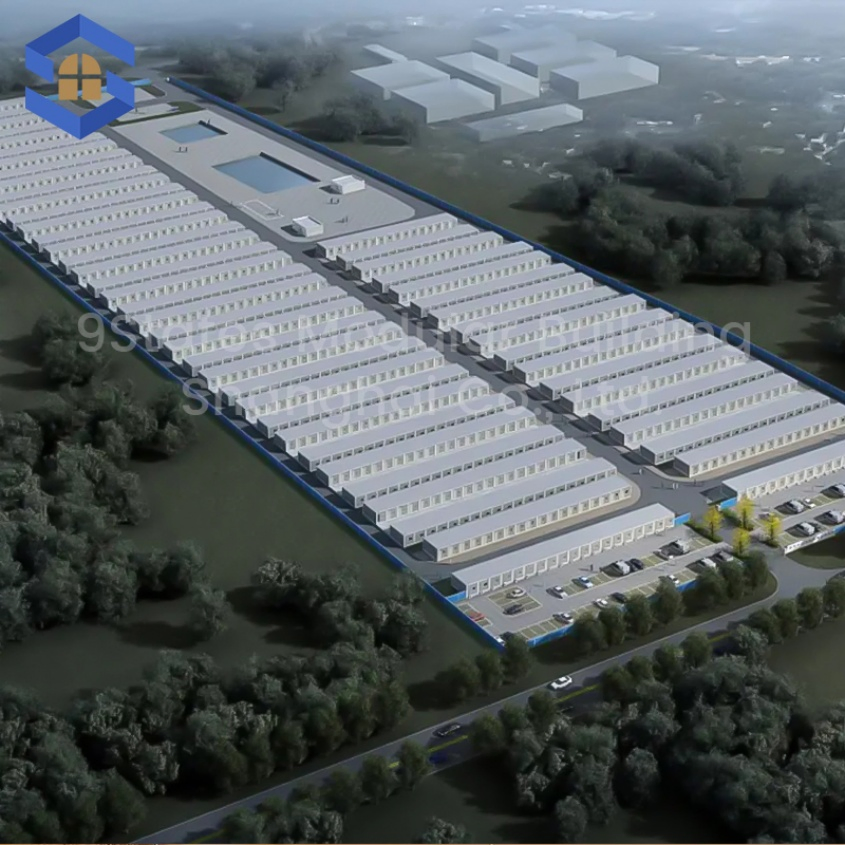

5. Emergency Response: Rapidly deployable for disaster relief or medical isolation points.

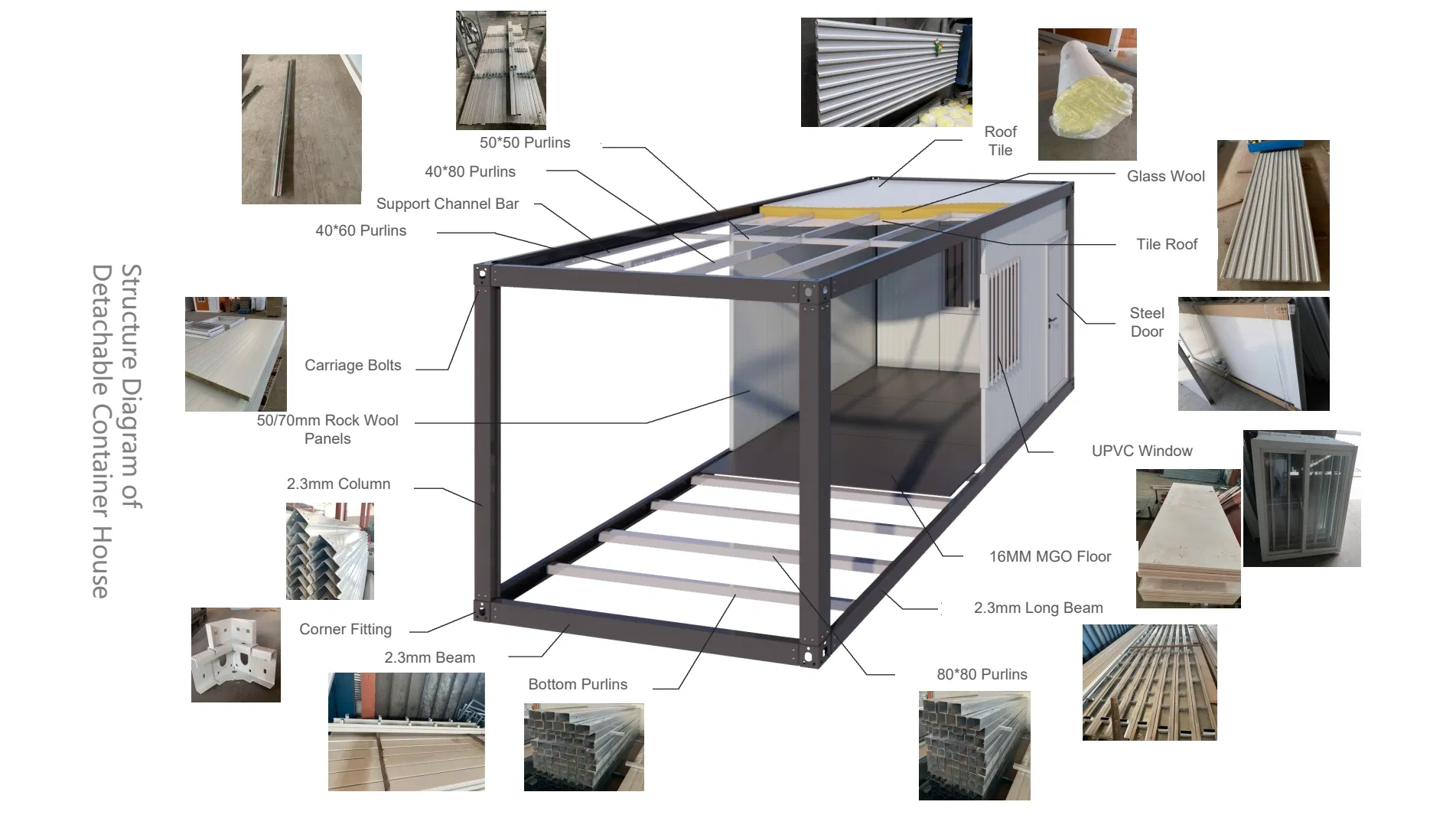

| Component | Details | |
|---|---|---|
| Wall panel | 0.3mm color steel 50mm rock wool sandwich panel | |
| Door | Steel door, W840mm x H2035mm, 0.5mm panel, fireproof | |
| Window | Upvc sliding window (w1120mm x h1100mm) x 2pcs; 5+9+5 hollow double glass | |
| Roof | 0.4mm Thickness, 980 Type Color Steel pressure type tile | |
| Floor | 18mm Grade cement fiberboard + 1.6mm Pvc floor leather | |
| Frame | Main beam: 2.5mm galvanized; Secondary beam: 1.8mm galvanized C-type steel; Columns: 210*150mm | |
| Technical Parameter | Temp | -20°C to 50°C |
| Wind Load | Grade 11 | |
| Earthquake | Grade 7 | |
