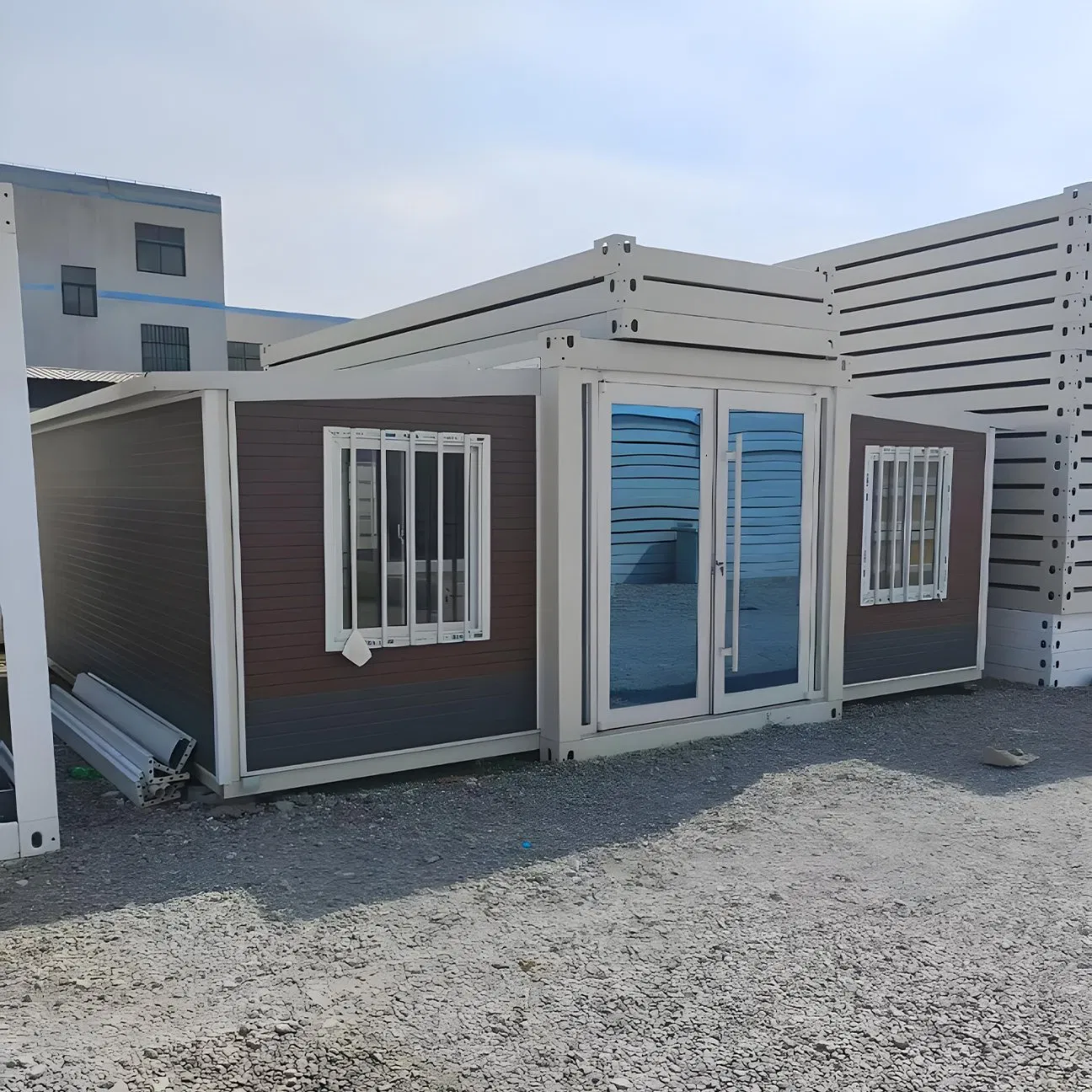

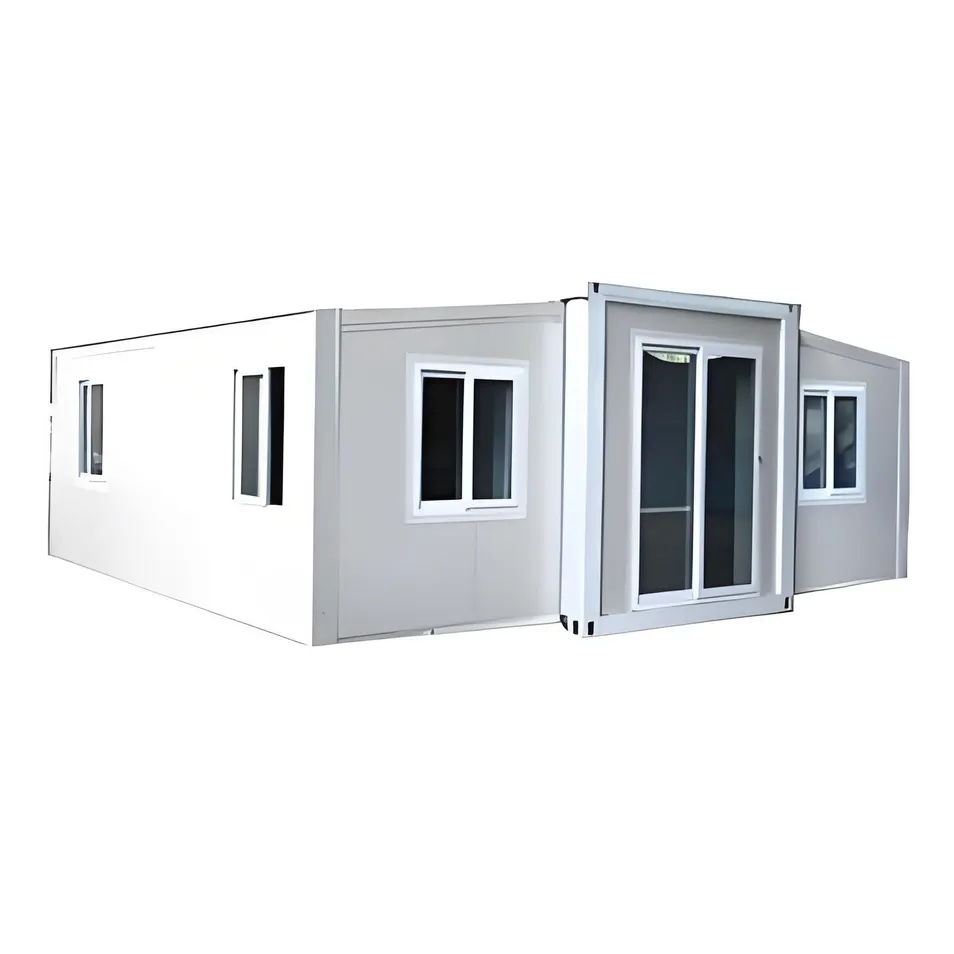

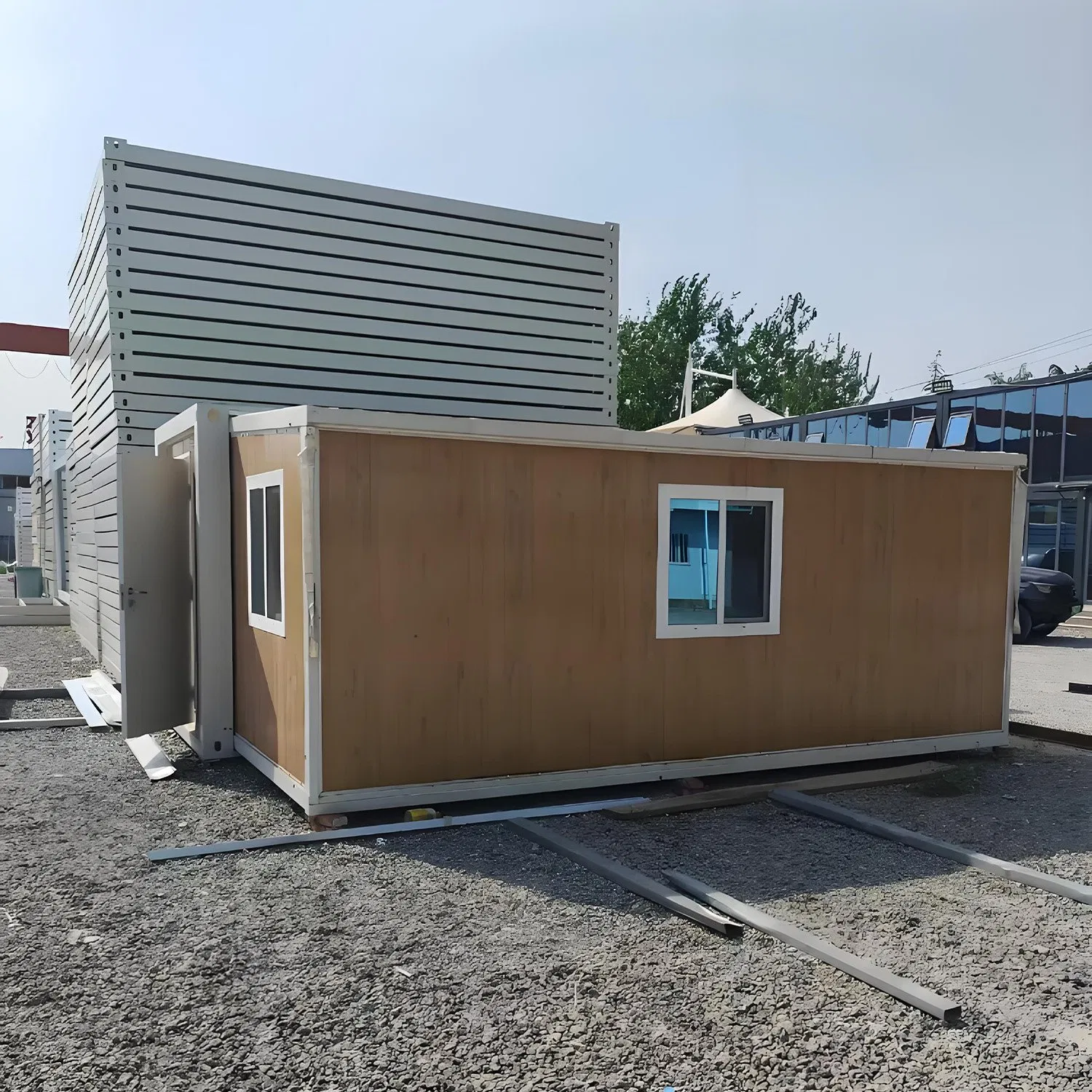

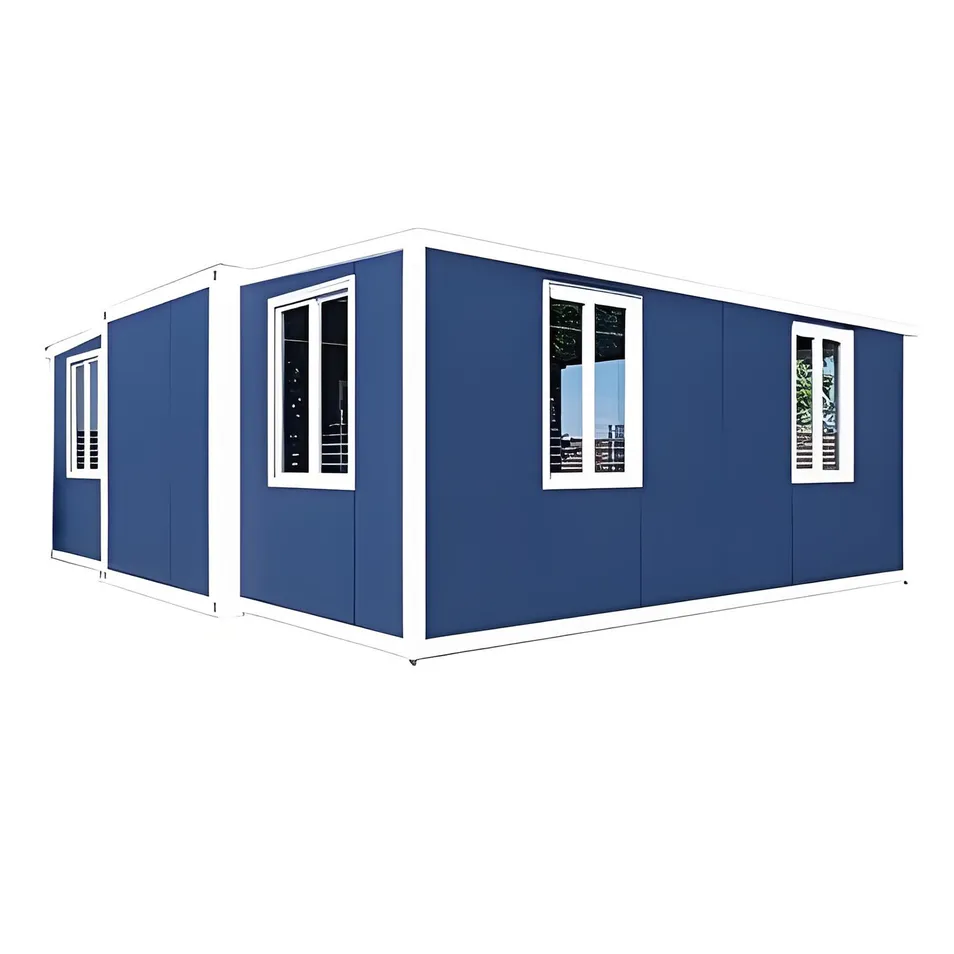

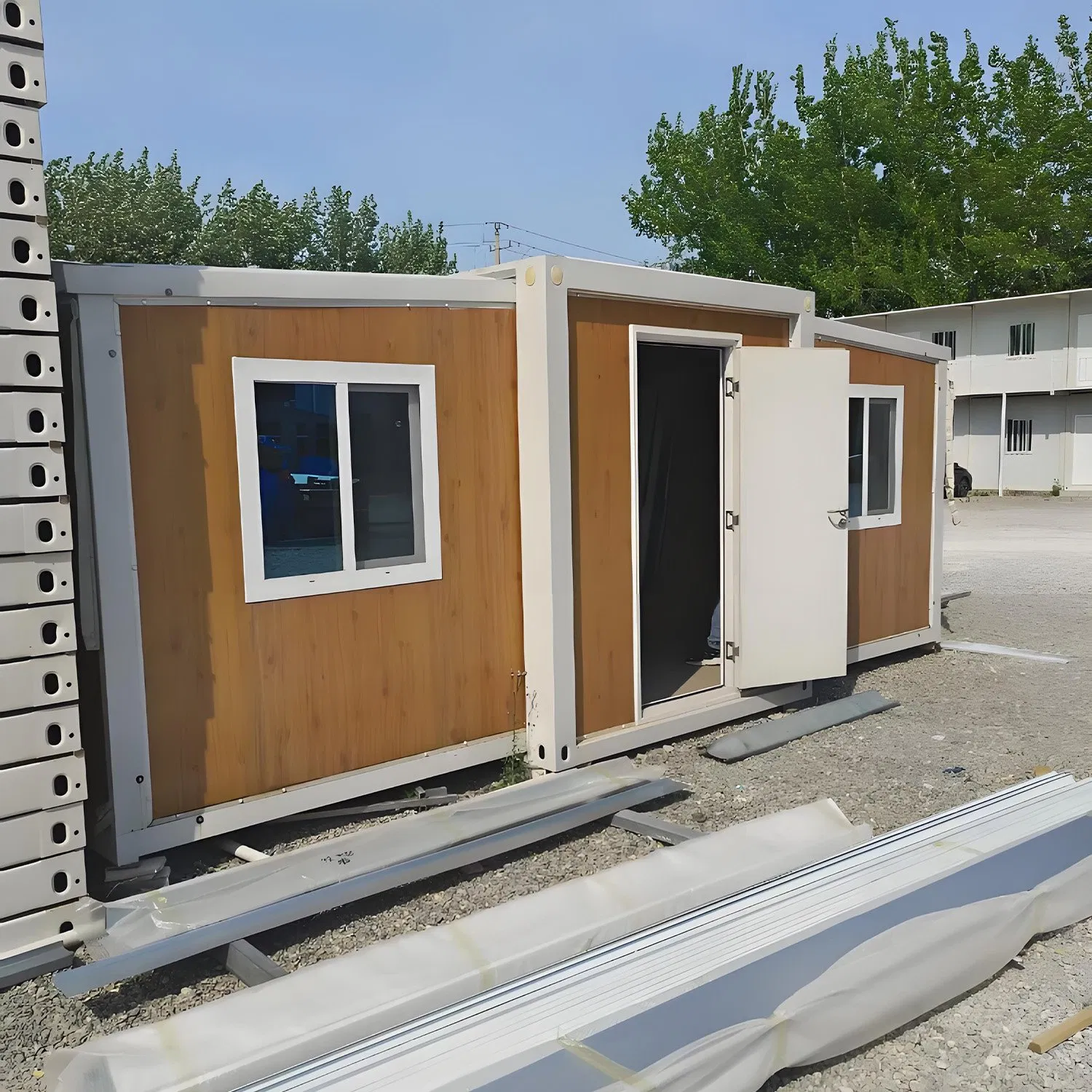

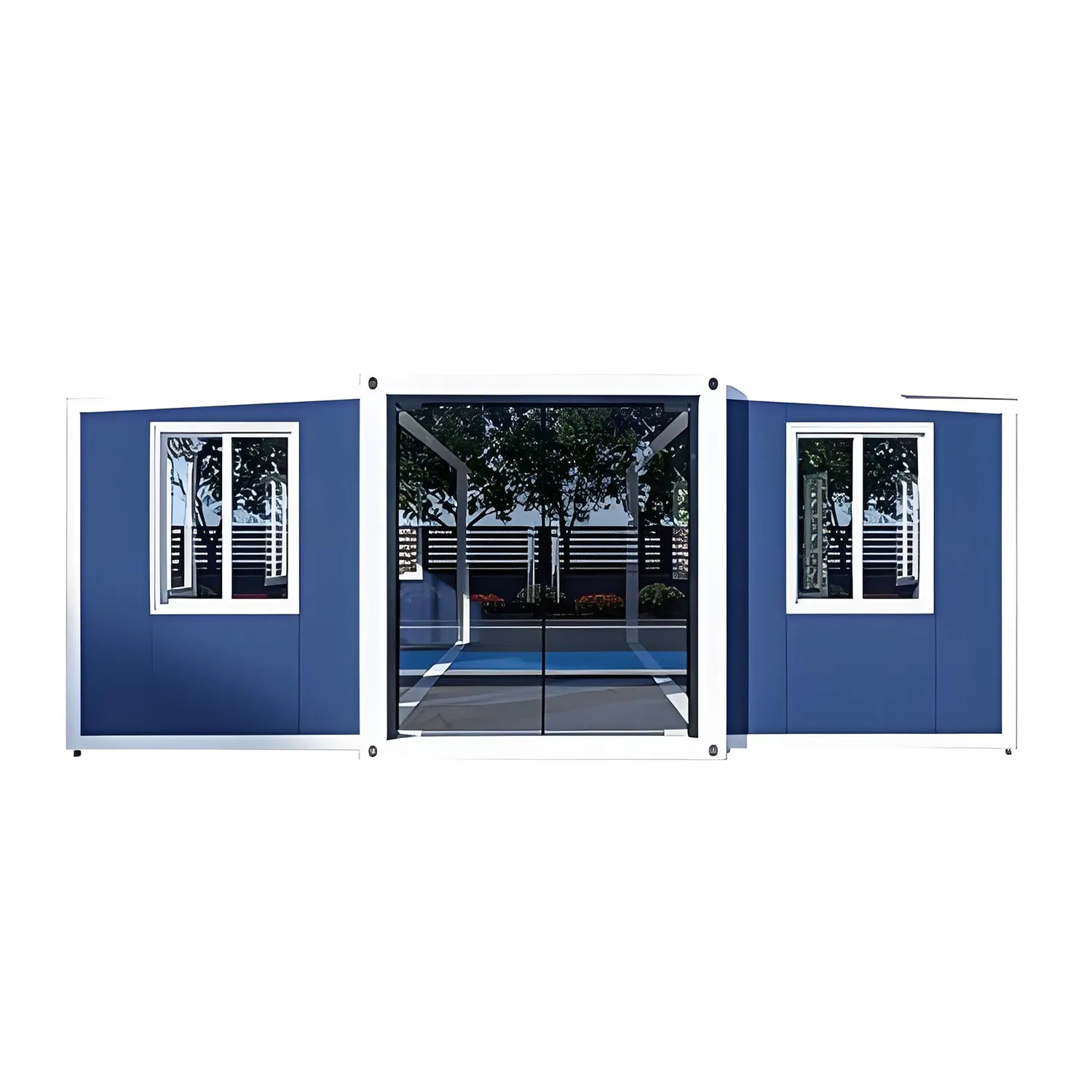

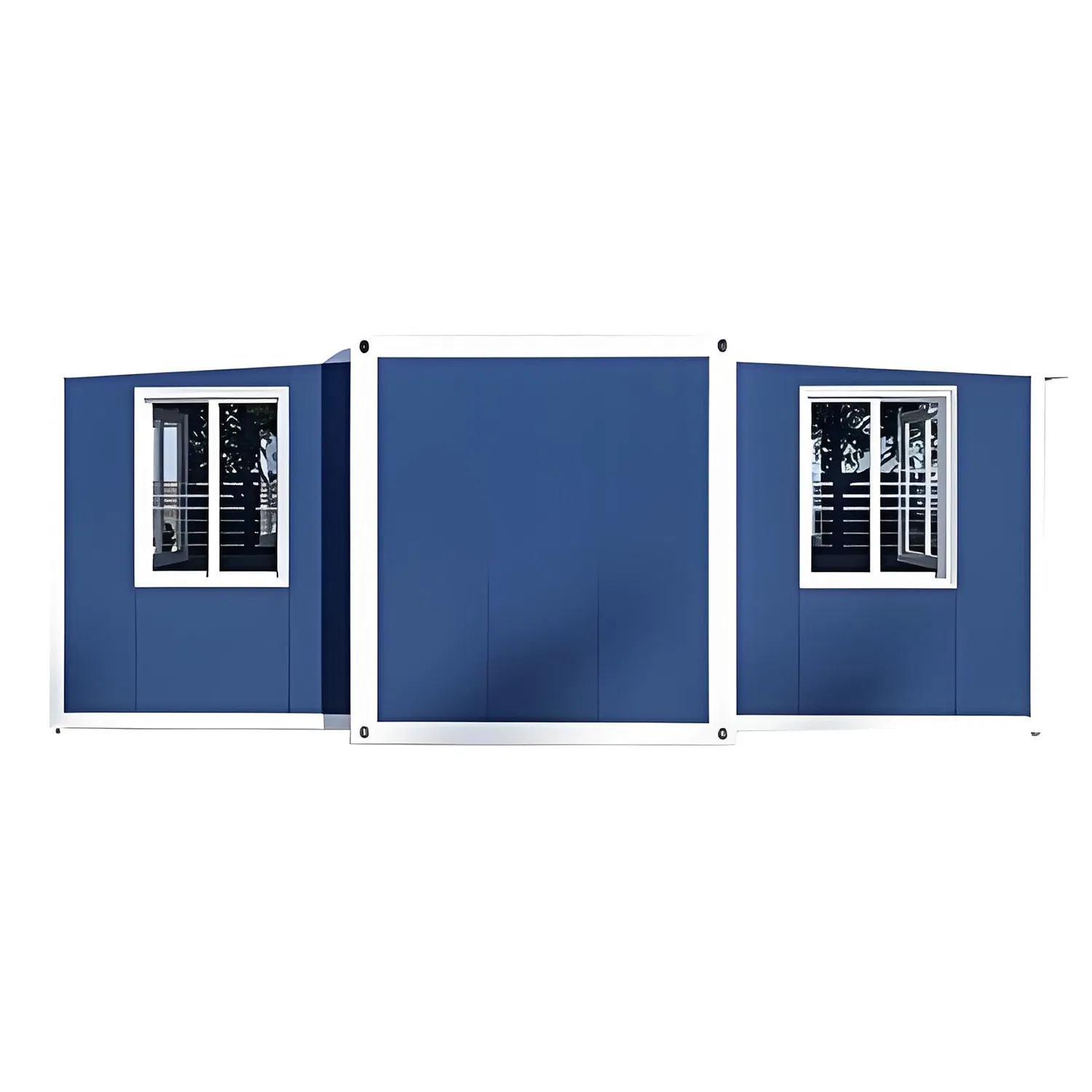

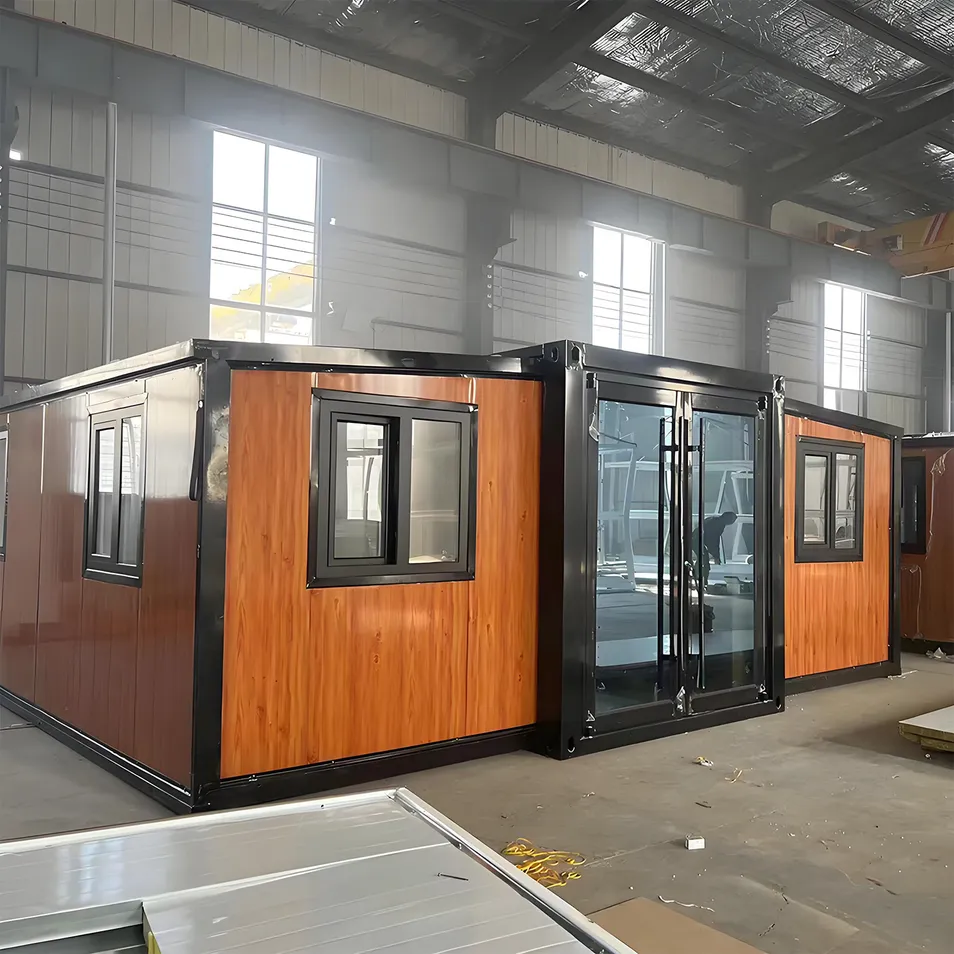

The container double-wing expansion house is a modular building solution that combines industrial aesthetics with intelligent technology. With the "double-wing" hydraulic expansion design on both sides, it maintains standard container size during transportation and expands the usable space by 2 to 3 times after deployment.
Made of high-strength steel and environmentally friendly materials, it offers quick installation, energy conservation, and strong adaptability. Ideal for temporary offices, commercial displays, emergency relief, and tourism camps.
| Double-wing expansion house configuration parameters | ||
| Dimensions | External (L*W*H) | 5900*2200*2480mm |
| Expanded (L*W*H) | 5900mm*6300mm*2480mm | |
| Performance | Heat Insulation | 0.048W/m·K (Fire resistance) |
| Wind Resistance | 0.60kN/m² (Level 8) | |
| Seismic / Sound | Level 8 / ≥30dB | |
| Waterproof | Organized drainage, no leakage at 16mm/min | |
| Structure | Main Frame | Galvanized square steel (80x100mm), thickness 2.5mm |
| Wall Panel | Material | 75mm Flame-retardant EPS composite board, 0.3mm steel |
| Flooring | Material | 18mm Cement board + 2.0mm PVC floor leather |
| Doors & Windows | Entrance | Broken bridge aluminum alloy (W1900 x H2280mm), Tempered glass |
Capacity: 1500 sets per month

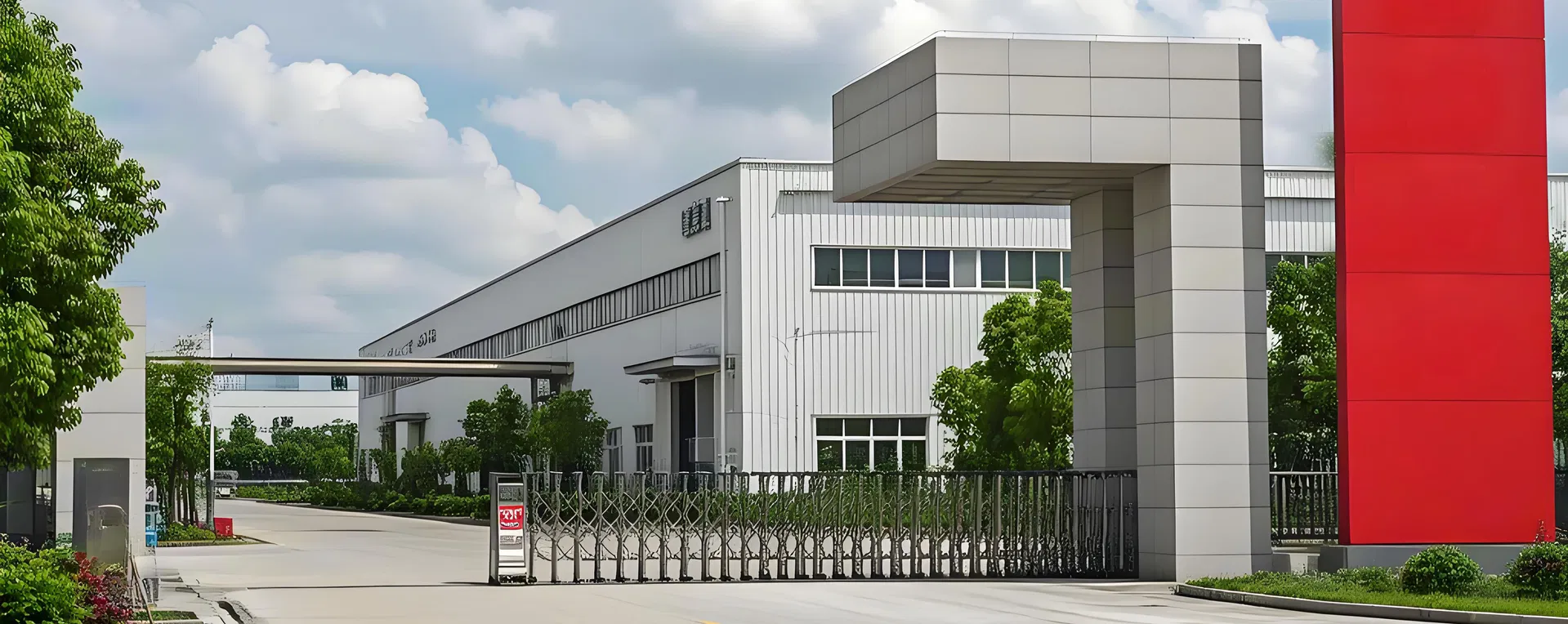

Scale: Factory covers 21,000 square meters.
Team: 200 employees with specialized engineering technology and management expertise.

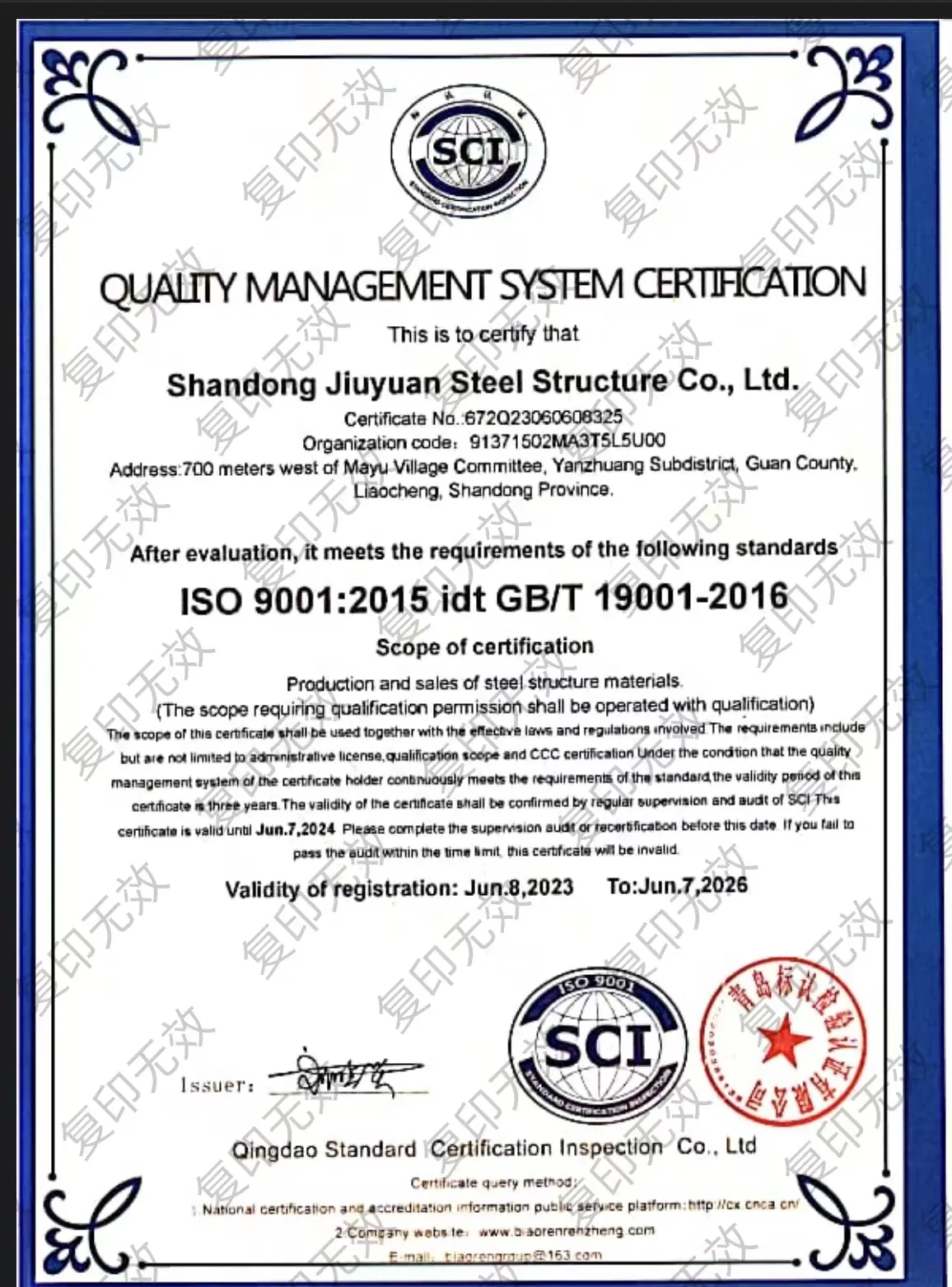

ISO9001:2015

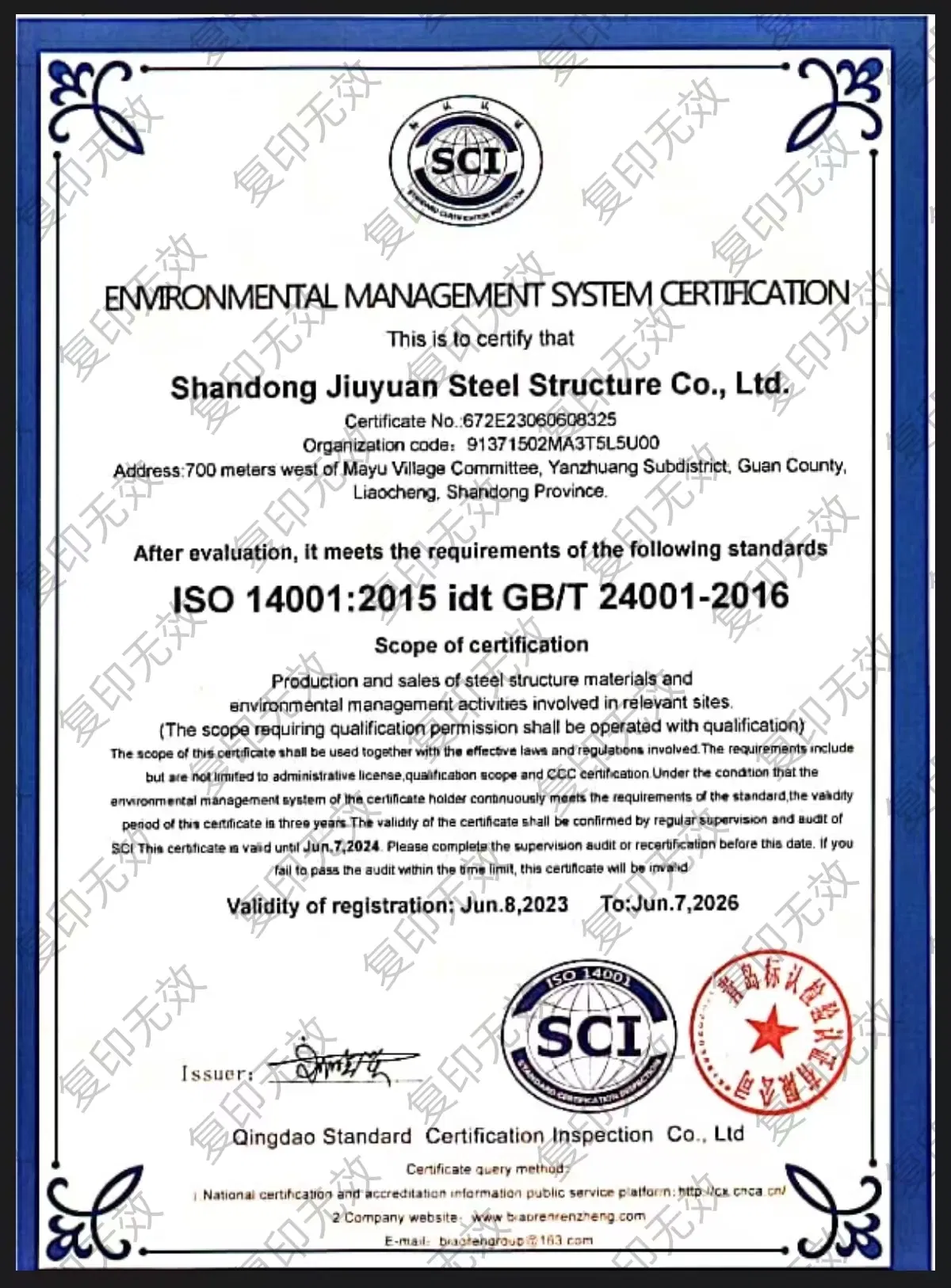

ISO14001:2015

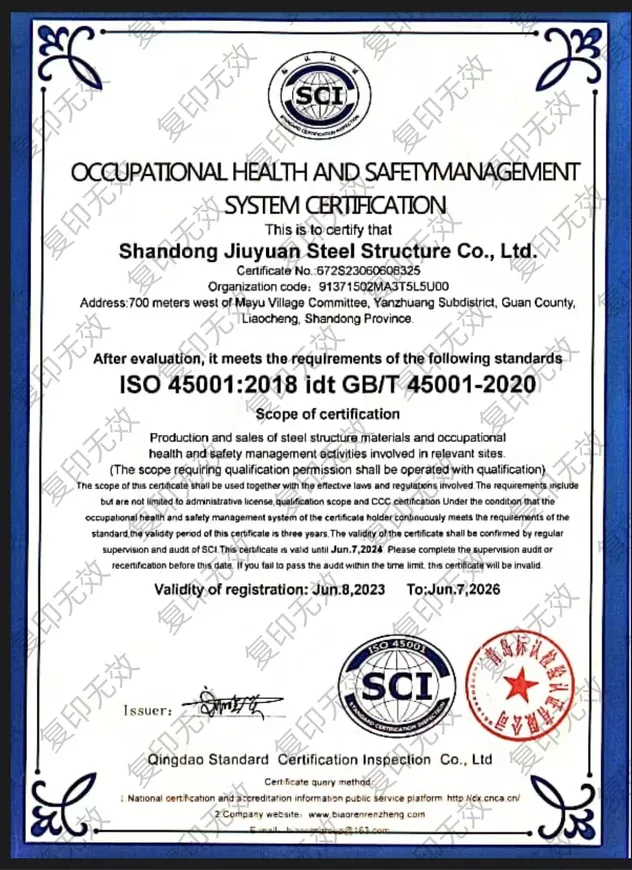

ISO45001:2018
