20 FT Portable Drilling Housing Movable Container Worker Living Cabins

Customization: Available
Material: Steel Structure
Fire Proof: A1 Grade

Product Description

i

Basic Specifications

Model NO.
KHCD
Life Span
20 Years
Connection
Bolts
Wall Panel
PU or Rock Wool Sandwich Panel
Roof Panel
PU or Rock Wool Sandwich Panel
Certification
CE, ISO, Fireproof
Usage
Dormitories, Temporary Offices
Capacity
1000 Units/Month

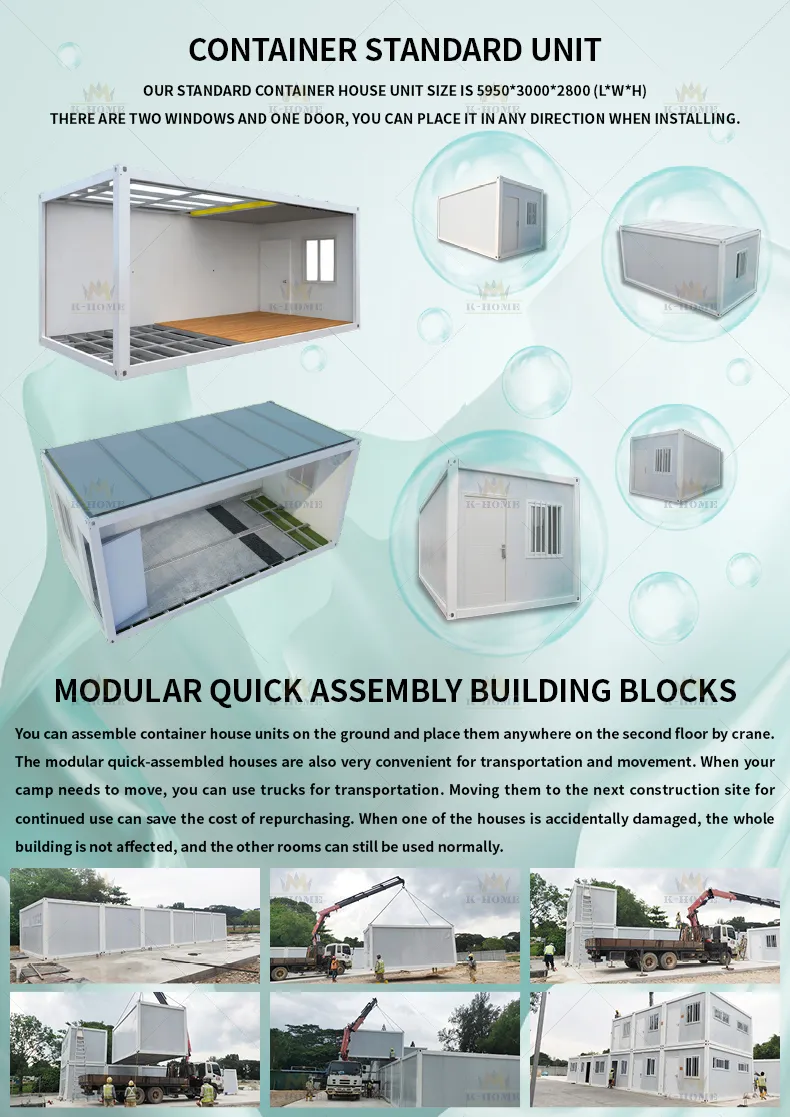

Product Description

The 20 FT standard container unit is modified by 20 FT ISO containers. This kind of unit is an open style, which can be fully customized to satisfy your actual need.

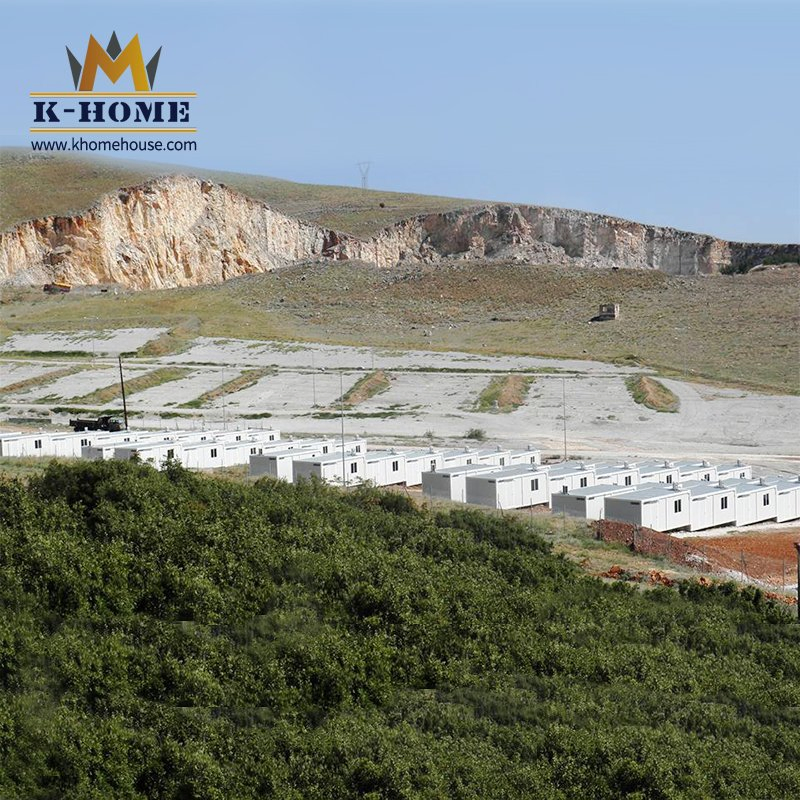

The portable worker living cabins can be finished with full length of glass curtain wall, glass curtain doors, etc., to make it good looking and comfortable living. These units are suitable in a variety of situations, even in remote drilling areas. It can make life much more colorful and enjoyable, even far away from home.

This housing solution is the most cost-effective and easy to assemble, providing high-quality living conditions with minimized risks.

Main Steel Structure & Parameters

Part Component Technical Specification
Roof System Steel Frame / Insulation Q235 galvanized fitting; 50mm rock wool insulation; 0.4mm steel sheet.
Floor System Structure / Floor 3mm Galvanized Steel structure + 18mm MGO board + PVC leather floor.
Wall System Sandwich Panel 50mm EPS Foam Sandwich Panel (0.35mm thickness steel).
Column System Frame Column 2.3 mm Shaped Galvanized Steel.
Door & Window Steel/Aluminum Steel door (2000*980mm); Aluminum double hollow glass sliding window.
Electric System Fittings LED light, double sockets, air-switch, and safety protection box.
📷

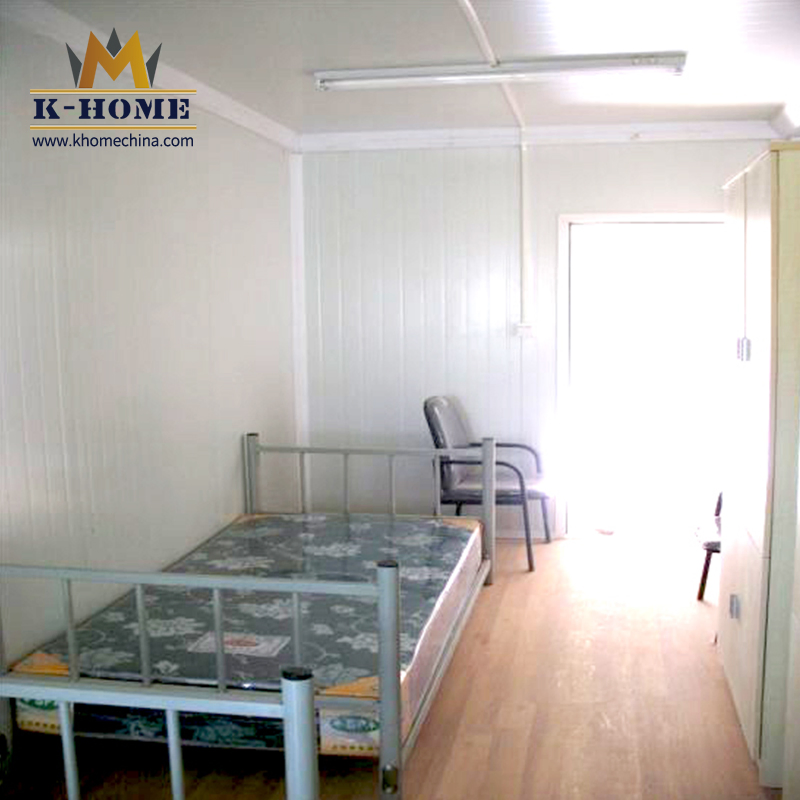

Detailed Photos

After Sales Service

We are committed to providing professional maintenance and support for all our customers globally:

  • Detailed usage and maintenance manuals provided with every unit.
  • Active communication and problem-solving for any quality issues during use.
  • Global support network to ensure timely service across different regions.
  • Regular return visits and maintenance checks for long-term customer satisfaction.
?

Frequently Asked Questions

1. How many years of experience do you have with prefabricated houses?
We have more than 20 years of professional experience in manufacturing and designing prefabricated container houses.
2. How are these units transported and moved?
The units are sized to fit shipping containers. They can be transported via truck and moved using a crane either as a whole unit or in a disassembled state.
3. Can the internal layout of the house be customized?
Yes, fully. We provide free design services based on your specific requirements if you do not have a formal drawing.
4. Are these container houses weather-resistant?
Absolutely. They are built with galvanized steel and insulated sandwich panels designed to withstand various climates, including heavy rain and wind.
5. What kind of foundation is required for installation?
A simple flat ground, concrete piers, or a concrete slab are sufficient foundations for these portable units.

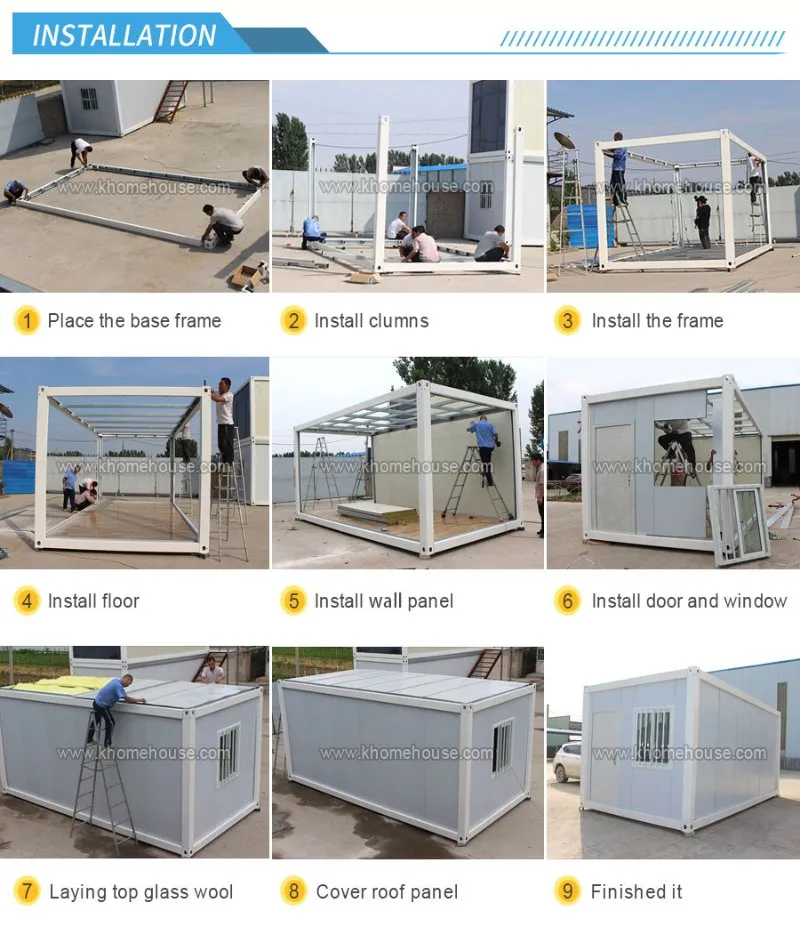

6. How long does the installation take?
A standard unit can typically be assembled in a few hours with a small crew of 2-3 workers once the foundation is ready.
