1. Modular and Standardized Design: Main structure uses 20ft/40ft custom modular units. Units can be used individually or combined via horizontal splicing and vertical stacking.
2. Robust and Durable: Made of Q235B steel with a fully welded frame. Withstands wind forces up to levels 10-12 and seismic forces of 6-8 levels.

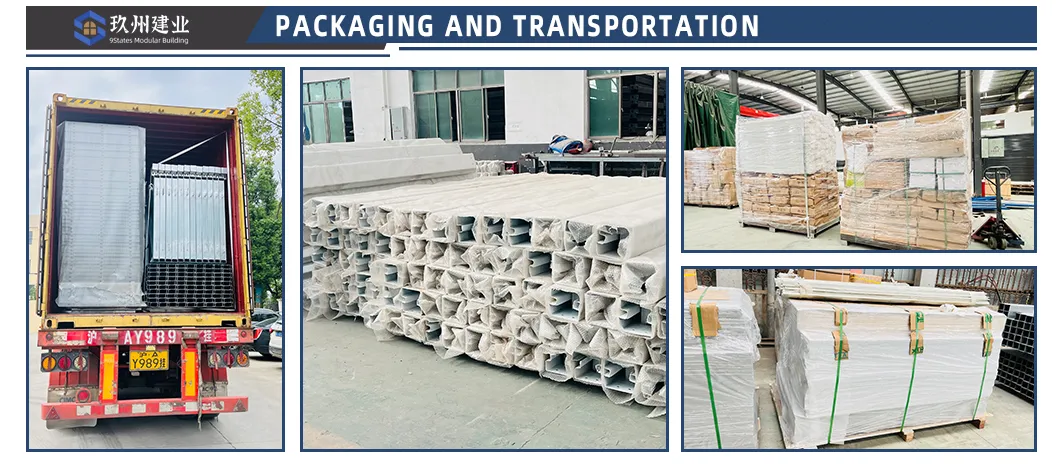

3. High Mobility: Integrated steel unit transportable by forklift or trailer without disassembly, ideal for relocatable scenarios.
4. High Customization: Adjustable interiors including plumbing, electrical, rock wool insulation, and customized exterior decorative panels.

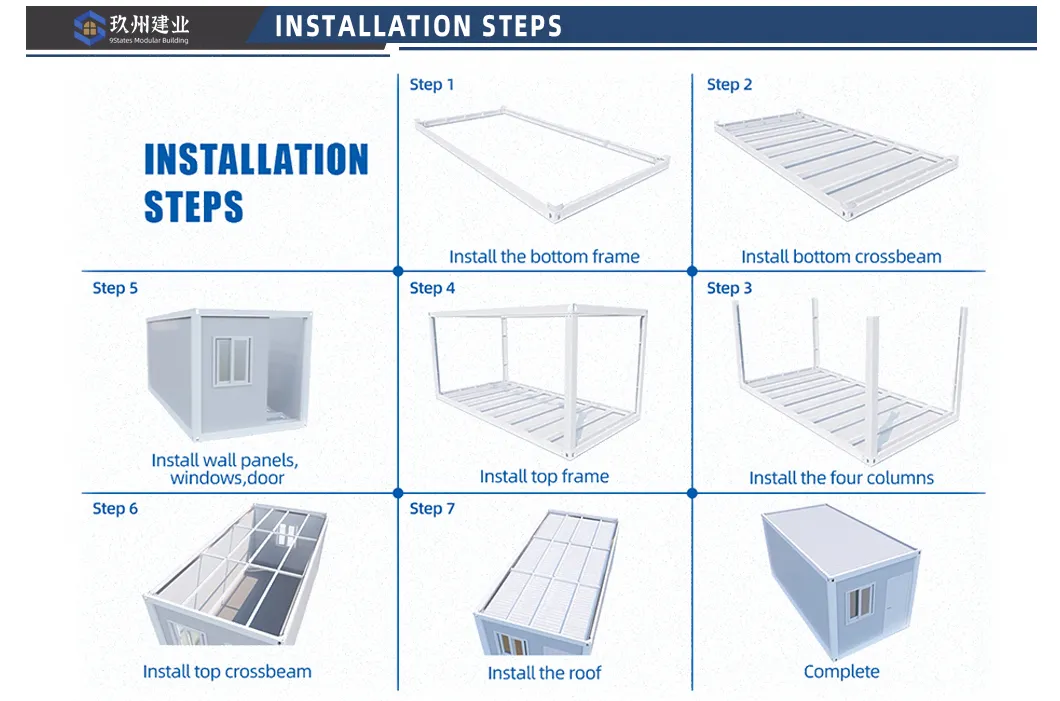

5. Short Construction Period: Factory prefabrication reduces on-site work. Installation can be completed 70% faster than traditional methods.
1. Residential: Fully configured living systems including kitchens, bathrooms, and climate control interfaces.
2. Office: Designed as open-plan or partitioned rooms with integrated network and power interfaces.
3. Commercial: Transformable into retail shops, cafes, or ticket booths with display window options.

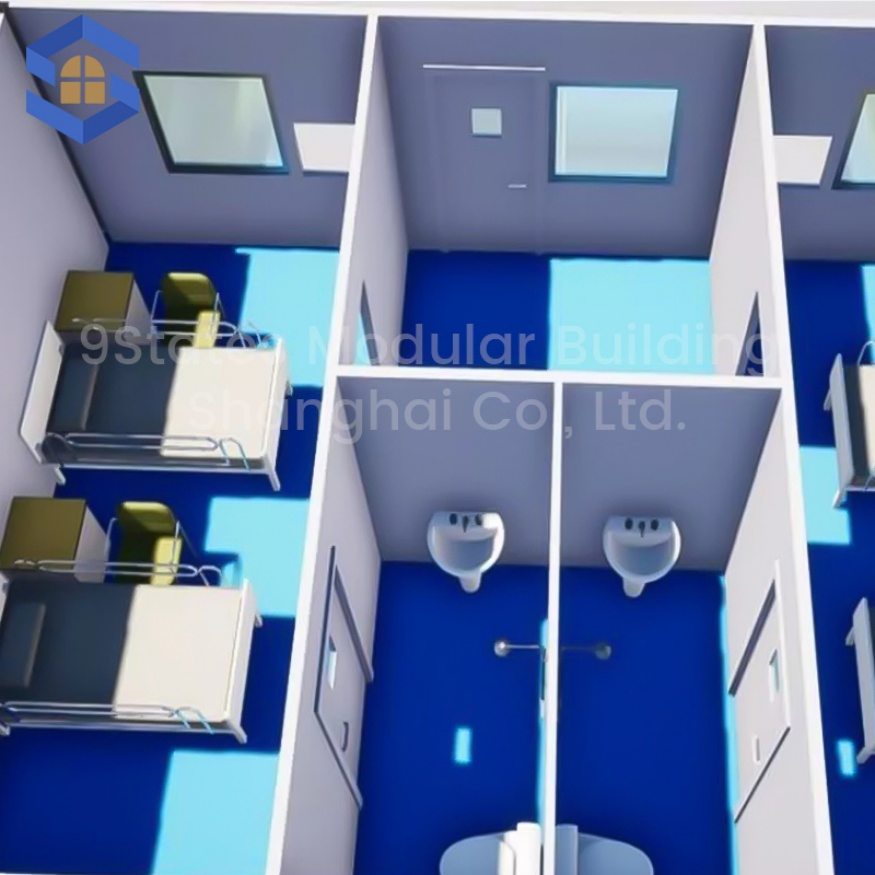

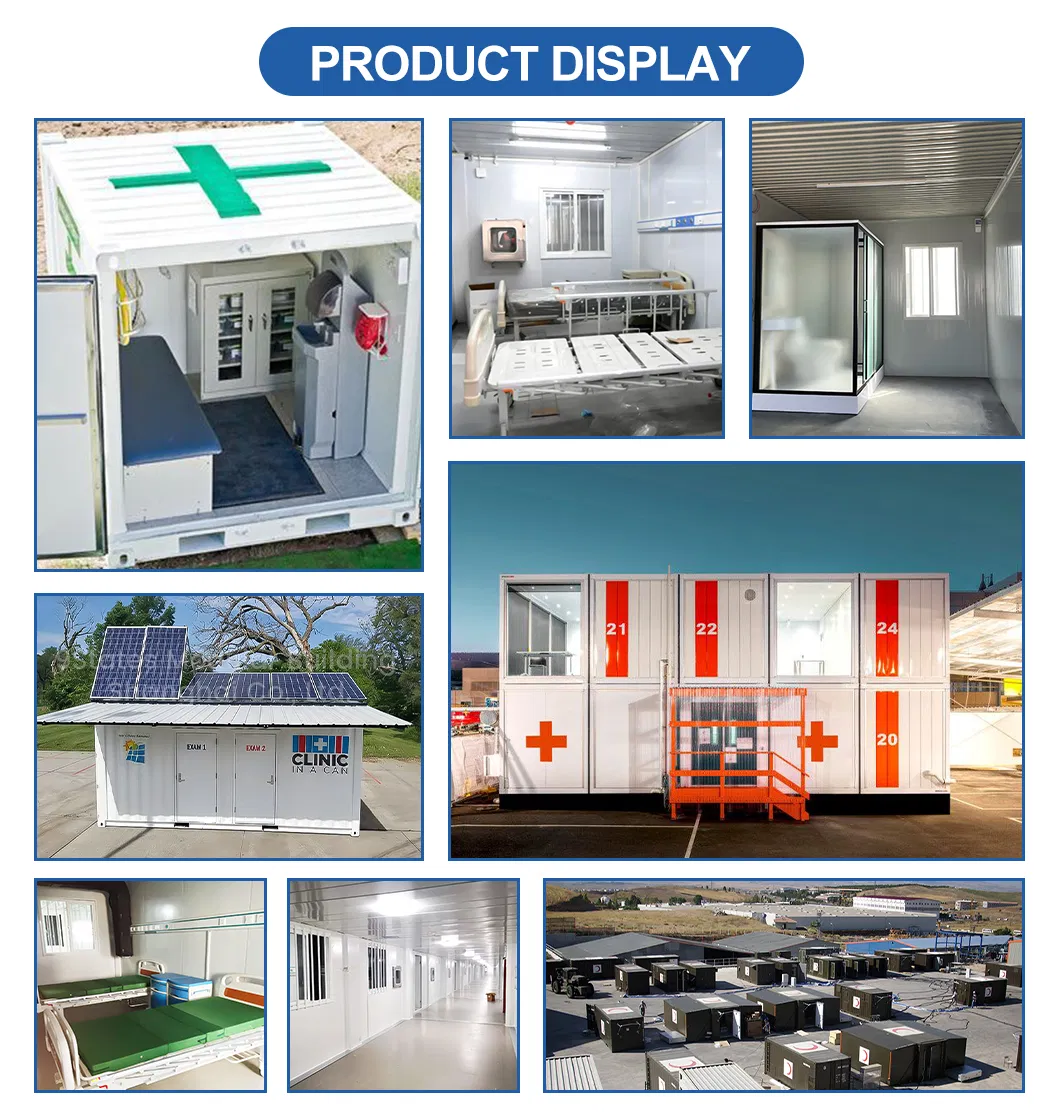

4. Public Support: Suitable for guard booths, medical testing stations, and sanitation rest rooms.

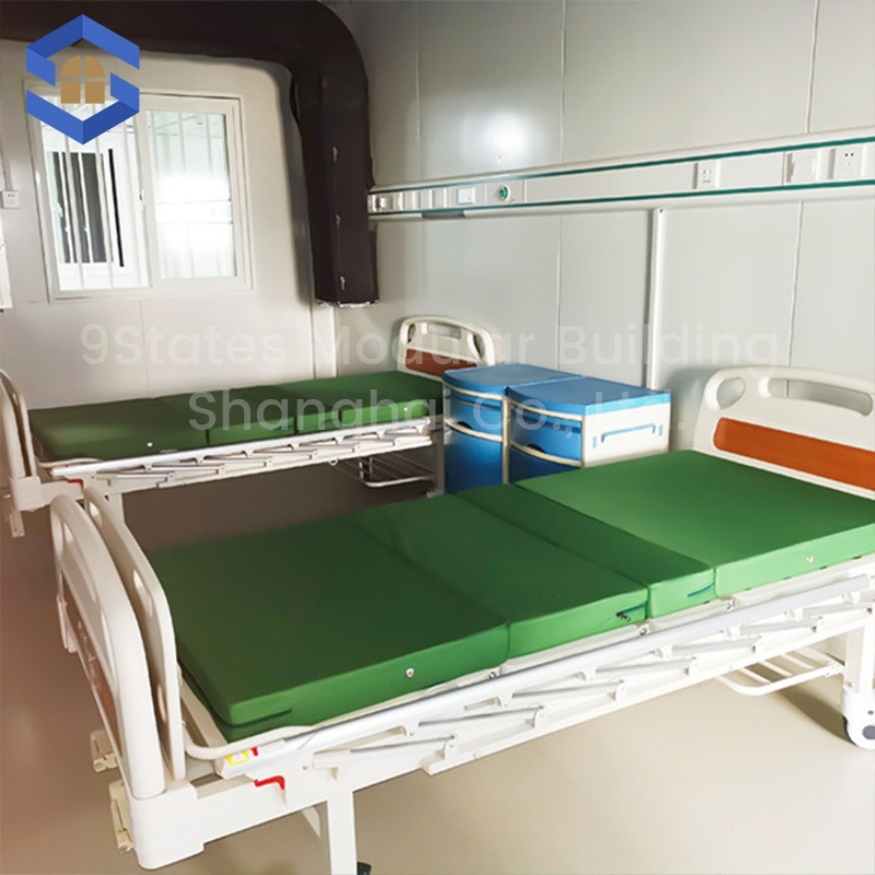

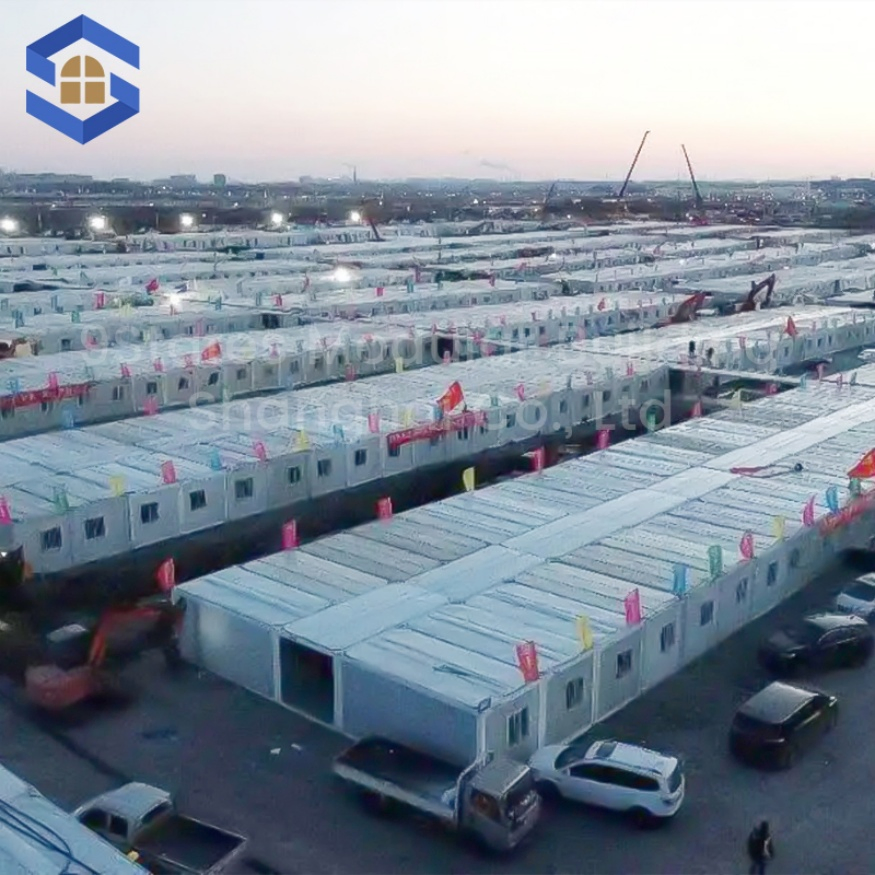

5. Emergency Response: Rapid deployment for disaster relief housing or temporary medical stations.
| Component | Specification Details |
|---|---|
| Wall Panel | 0.3mm color steel 50mm rock wool sandwich panel |
| Door | Steel door, W840mm x H2035mm, 0.5mm panel, fireproof |
| Window | UPVC sliding windows (2pcs), 5+9+5 hollow double glass with screen |
| Roof | 0.4mm Thickness, 980 Type Color Steel pressure tile |
| Floor | 18mm Grade A cement fiberboard + 1.6mm PVC floor leather |
| Frame | Galvanized main beam (2.5mm), Column (210x150mm), Secondary C-type beams |
| Wind Load | Grade 11 resistance |
| Temperature | Operational range: -20°C to 50°C |
