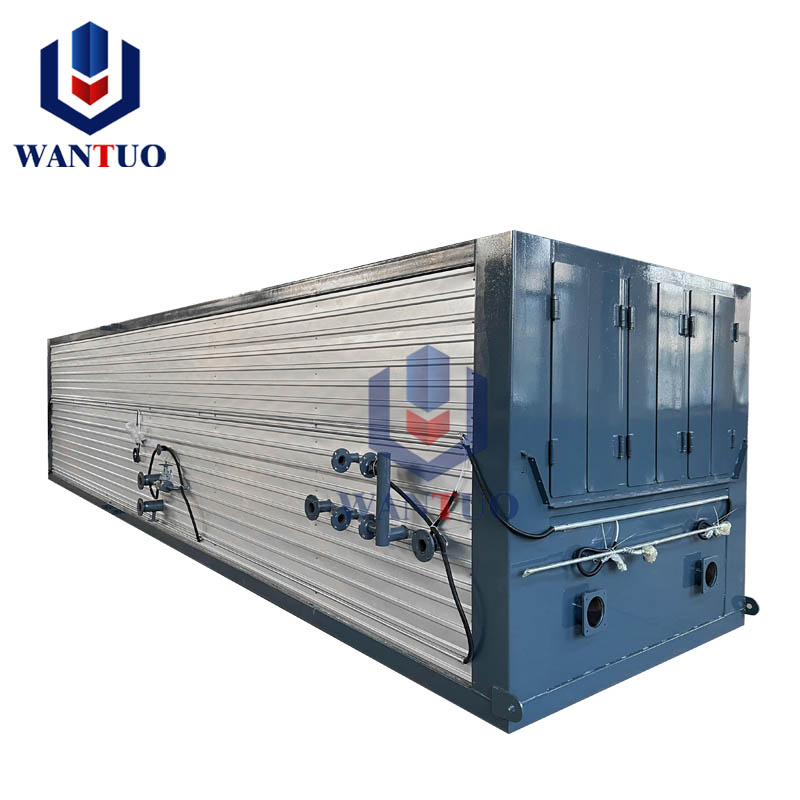

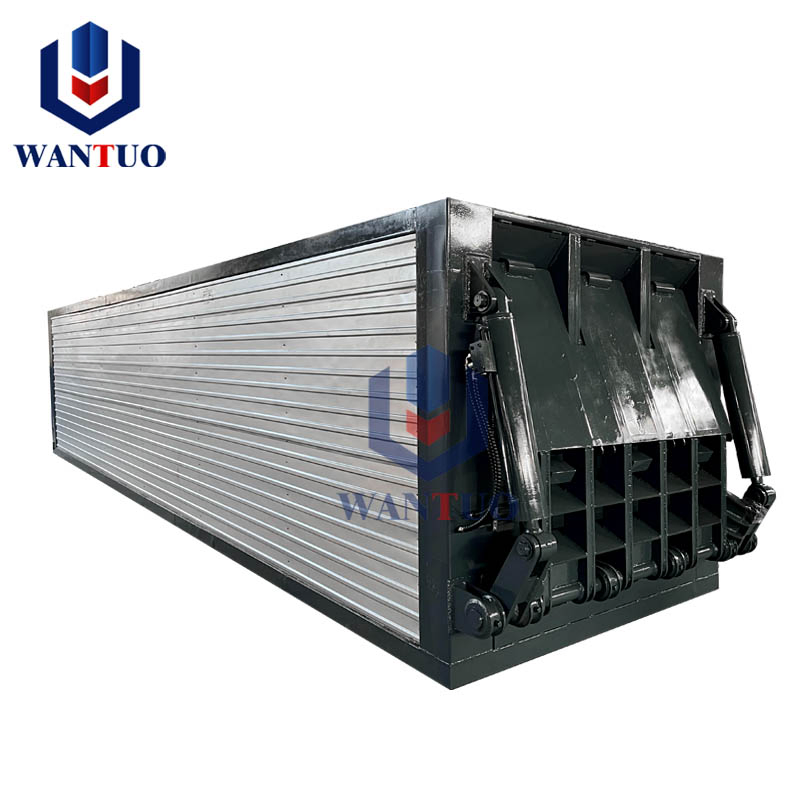

Outside Thermal Oil Boiler Heating Container Loading Bitumen Drum Melting Unit with Electric Hoist Drum Lifting

1 / 5

Outside Thermal Oil Boiler Heating Container Loading Bitumen Drum Melting Unit with Electric Hoist Drum Lifting

Warranty:	1 Year
Certification:	ISO9001
Condition:	New

Send Inquiry

Product Description

📊

Basic Information

Bitumen Storage Capacity

11-27m3

Melting Type

Continuous

After-Sales Service

Video/Online Support

Dimension(L*W*H)

12*2.3*2.4m

Unique Selling Point

High Operating Efficiency

Warranty

1 Year

Voltage

220V/380V

Productivity

4~10t/H

Total Power

26kw-36kw

Origin

China

🖼️

Product Presentation

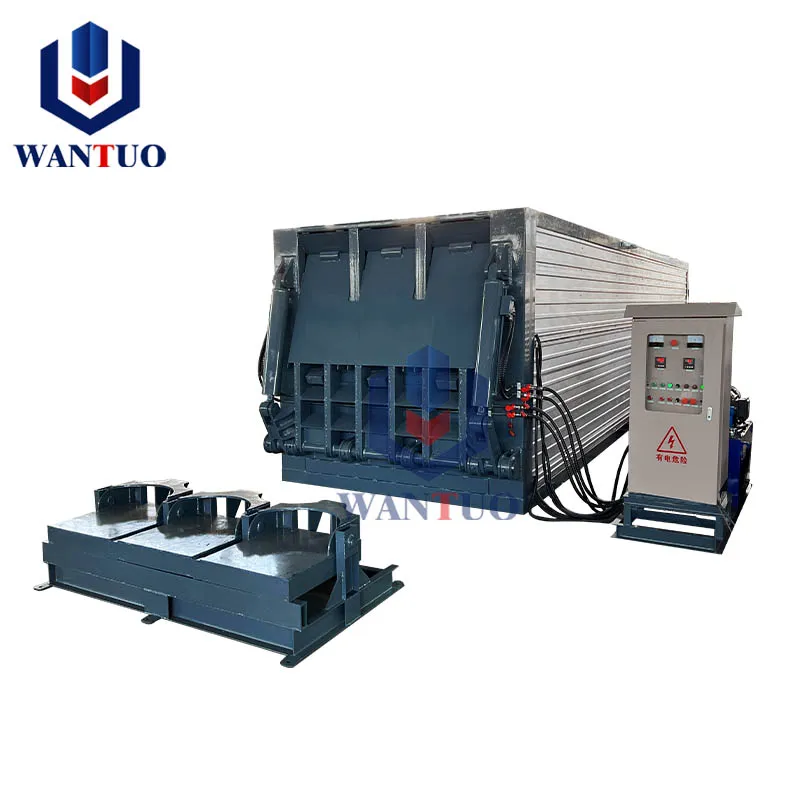

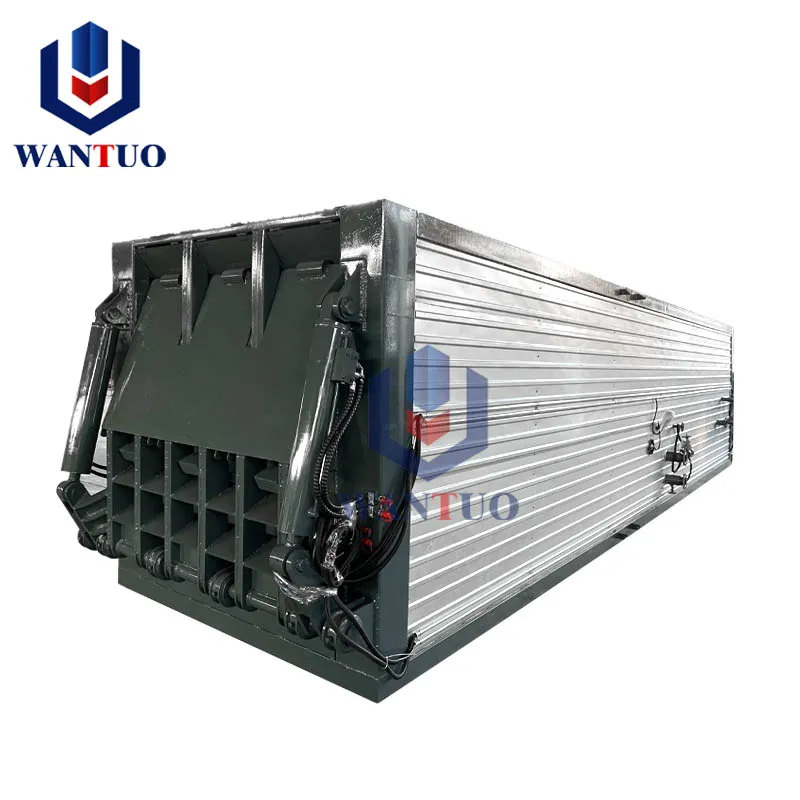

Steel Drum Bitumen Melter Asphalt Melting Equipment

📝

Technical Specifications

Productivity	4-8 t/h
Bitumen heating temperature	110℃
Bitumen storage capacity	9-12 t
Hydraulic pump	GB-32 Gear pump
Hydraulic cylinder strobe	1400 mm
Max jacking force	7.5 t
Electric hoist	ICD0.5
Heat transfer oil working temperature	200-250℃
Bitumen fuel consumption per ton	4-6 kg
Gross power	20 kw
Overall dimension (LWH)	9×2.1×2.5 m
Bitumen barrel capacity	18 Pcs

⭐

Key Features

Integrated structure with built-in heating device: integrates burner, heat transfer oil system, and lifting device into one unit to save space and improve efficiency.

Innovative barrel tipping device: solves waste and pollution issues commonly found in traditional rail systems.

Eco-friendly flue heating: reuses hot exhaust to heat drums, saving energy and providing faster melting with no residue.

Direct storage flow: heated bitumen drops directly into the storage tank for continuous heating via coils.

Excellent dehydration: high-duty pumps remove steam during the process, making bitumen ready for immediate use.

Automatic impurity removal: equipped with specialized filters to maintain bitumen purity.

Digital temperature control: real-time display and automatic burner start/stop with interlocking safety settings.

Overflow Protection: storage tanks are equipped with audible and visual liquid level alarms.

🚀

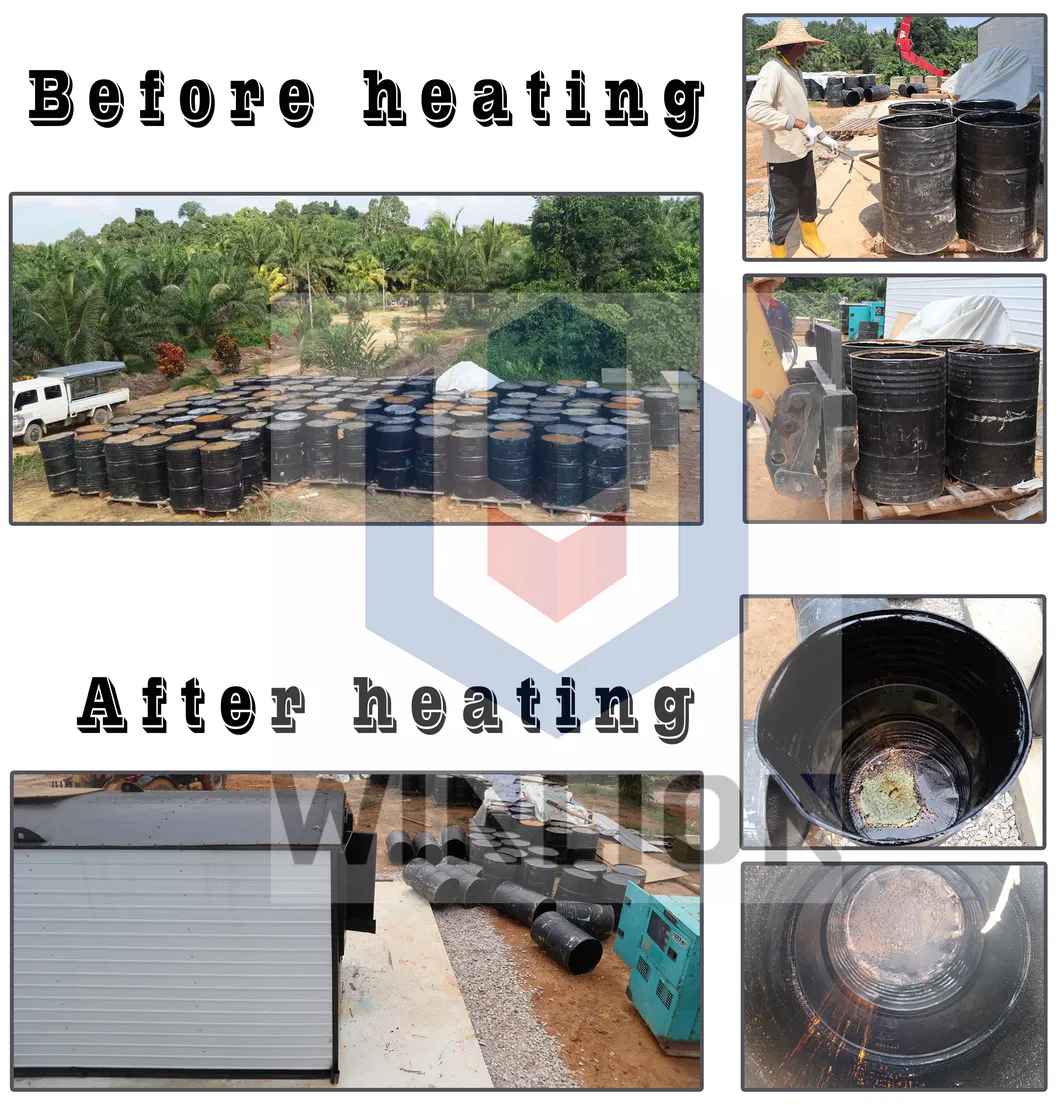

Working Performance

🤝

Our Services

Pre-Sales Support

✓ Instant response
✓ Technical consulting
✓ Project designing
✓ Product customizing
✓ Detailed quotation

After-Sales Service

✓ Worksite installation
✓ Staff training
✓ One-year guarantee
✓ Lifelong technical support
✓ 24-hour online service

🏢

Business & Products

Supplying bitumen and asphalt machinery for road construction for over 20 years.

Main product range includes: Bitumen Tanks, Storage Silos, Melting Plants, Emulsion Plants, PMB Plants, Bitumen Sprayers, and Heat Transfer Oil Boilers.

🚢

Delivery & Logistics

❓

Frequently Asked Questions

What are your standard payment terms?

We usually accept T/T and L/C. For T/T, a 30% down payment is required in advance, with the balance paid before delivery. We provide photos of finished products before shipping.

What are your main international markets?

Our equipment is widely exported to Russia, Southeast Asia, South Asia, and Africa.

Which trade terms do you support?

We accept standard international trade terms including FOB, CFR, and CIF.

What makes your equipment superior to others?

As an original manufacturer with 20+ years of experience, we provide factory-direct pricing and specialize specifically in road construction bitumen heating technology.

How is quality control handled before delivery?

We perform a 100% check-out of all functions and quality aspects before any goods leave the factory.

Do you provide on-site technical assistance?

Yes, we can dispatch engineers abroad to assist with installation, machine adjustment, and staff training. All products come with a one-year warranty.
